Door handle Helix 200 - Scandinavian standard - Matt Black
751011-41Lightweight resilient door handle with a raw sense of elegant industrialism

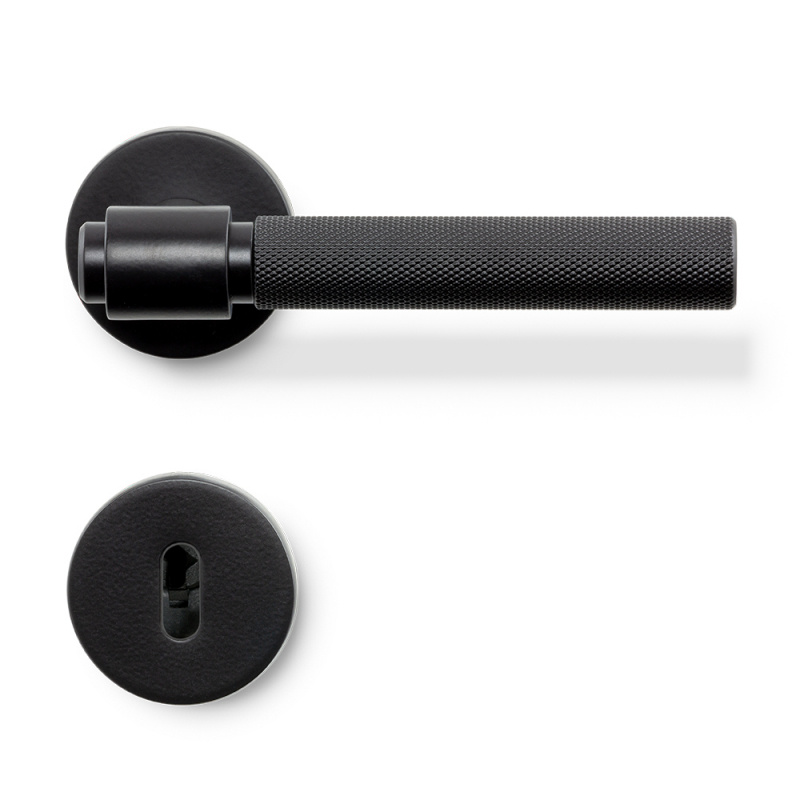

Door handle Helix 200 has a lightweight surface that protrudes and gives a comfortable feel when touched. The Helix 200 matches several previous series, including Helix & Pitch and Crest & Flat. Ideal for all doors indoors. The door handle has a resilient spring which means that the door handle always goes back to its basic position.
The handle is available in four different designs; antique bronze, black, brushed brass and stainless steel look. The door handle and keyhole fit to doors that are 35 - 48 mm deep. The door handle is adapted to Scandinavian standards. Standard key plate and complete mounting kit are included.
Also available for European standard. Standard key plate, conversion kit and complete assembly kit are included.
Door handle Helix 200 has a lightweight surface that protrudes and gives a comfortable feel when touched. The Helix 200 matches several previous series, including Helix & Pitch and Crest & Flat. Ideal for all doors indoors. The door handle has a resilient spring which means that the door handle always goes back to its basic position.
The handle is available in four different designs; antique bronze, black, brushed brass and stainless steel look. The door handle and keyhole fit to doors that are 35 - 48 mm deep. The door handle is adapted to Scandinavian standards. Standard key plate and complete mounting kit are included.
Also available for European standard. Standard key plate, conversion kit and complete assembly kit are included.
- Specifications
-
Article depth: 65 mm Article diameter: 52 mm Article length: 150 mm Article width: 52 mm Finish: Black Material: Aluminum - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
-
Product sheet »
