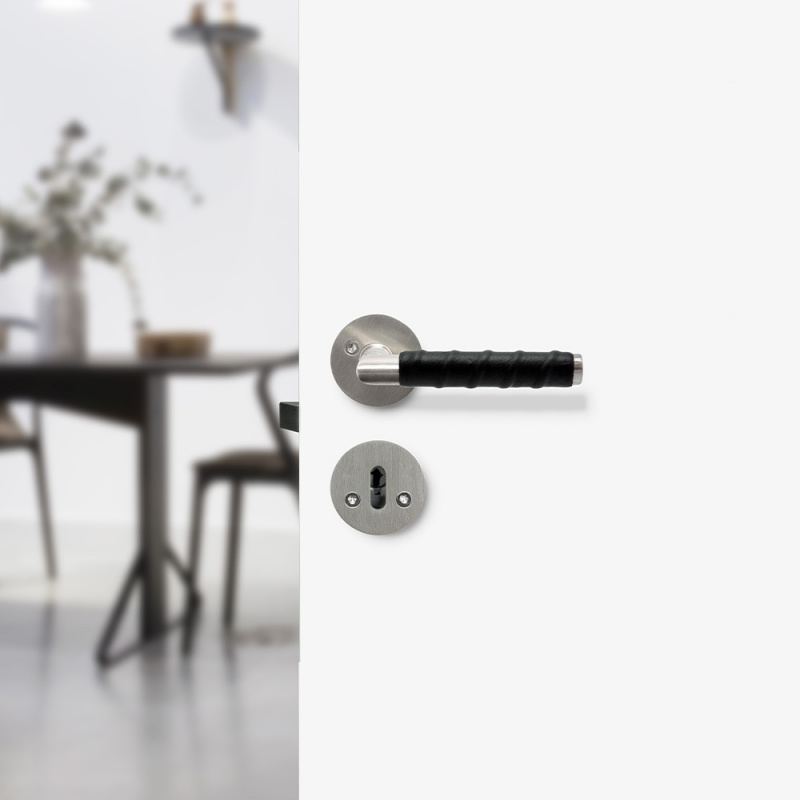

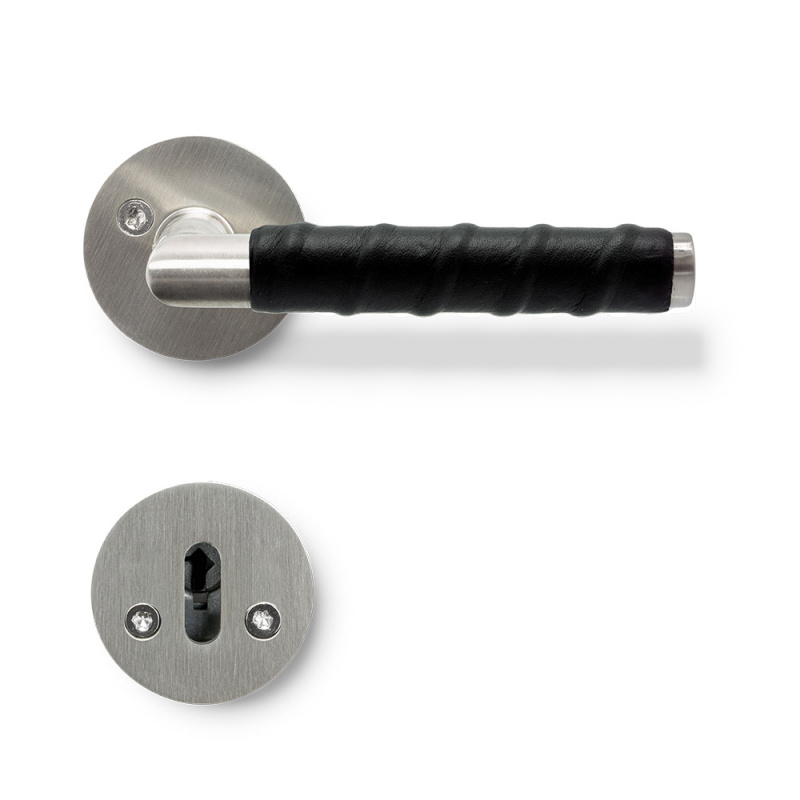

Door Handle Kastrup 04 - Stainless Steel/Black Leather

890012-41

Modern stainless steel door handles wrapped with environmentally friendly natural brown leather from Tärnsjö Garveri. With the right design, high quality materials and a little maintenance, you get a product that lasts long and is patented with dignity. The door handles at Kastrup are well suited for bedrooms as well as living room, kitchen and bathroom.

The door handle provides a lovely grip and fits the door thicknesses 35-60 mm. Key plate and complete mounting kit included. Kastrup leather door handles are available in three colors - brown, black and natural / light brown.

Only available from selected retailers.

Specifications
Article depth: 70 mm

Article diameter: 50 mm

Article length: 160 mm

Article width: 170 mm

C/C-dimensions: 30 mm

Finish: Black
Care instructions
Assembly and Installation
Installation of door handle

1. To ensure the best fit, it is important that the spindle is centered in the door during installation.
2. Place one half of the handle on the spindle. Tighten the set screw so that the tip penetrates the spindle.
3. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
4. Place the other part of the handle on the spindle. Ensure that the octagonal part of the sleeves fits correctly into the octagonal holes.
5. Use the included screws and sleeves to tighten the two handle parts together with an Allen key.
6. Tighten the set screw with an Allen key until the tip penetrates the spindle.

Installation of key escutcheon

1. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
2. Place the rosettes tightly against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.
3. Use the included screws and sleeves to attach the key plates with an Allen key.

See the full installation instructions here.
