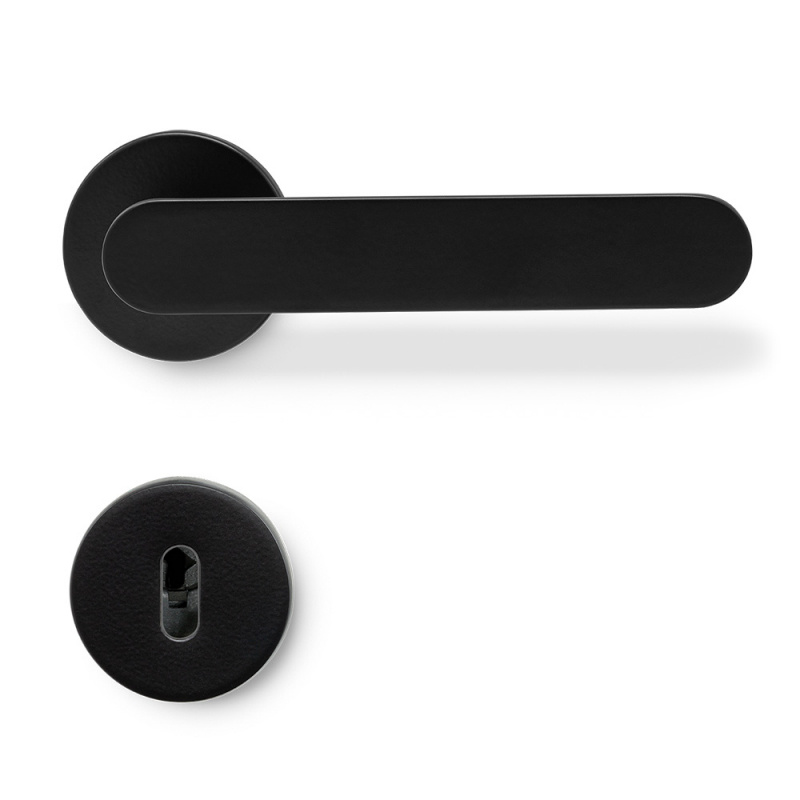

Door handle Vibe Plain - Matte black
vibe-plain-mattsvartThe Vibe Plain door handle in matte black features a smooth and elegant surface that provides a pleasant touch with every use. It is equipped with a spring return function, ensuring the handle always returns to its original position. Additionally, it has a concealed screw mounting for a sleek and cohesive appearance.

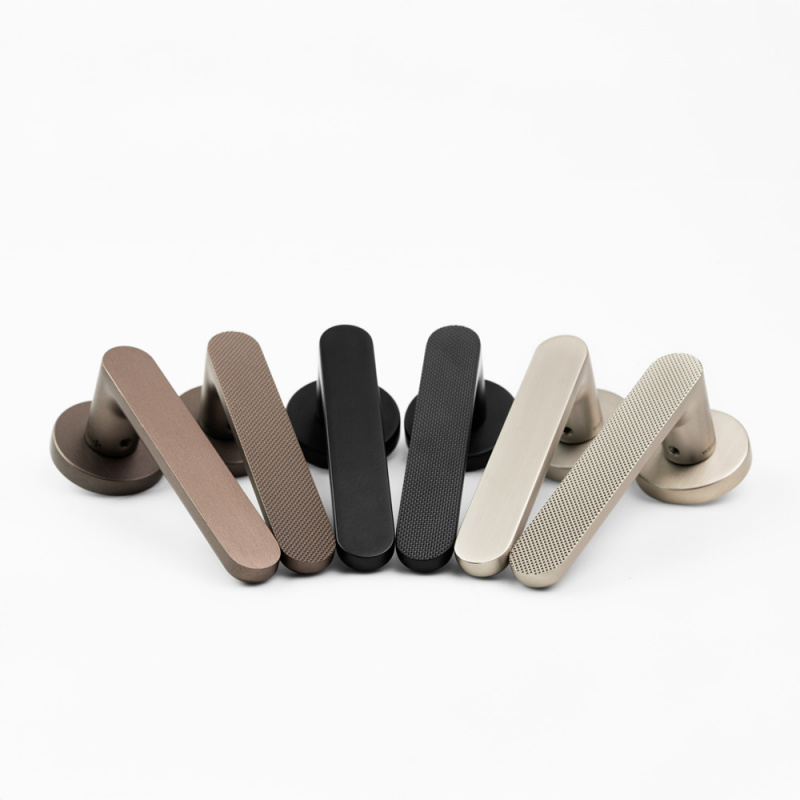

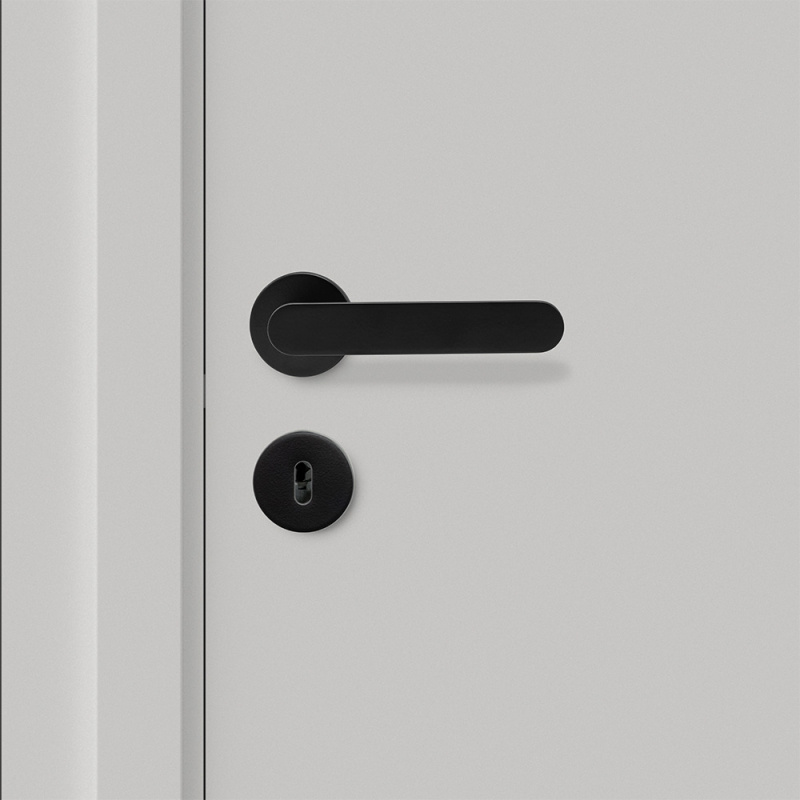

The Vibe Plain door handle is an excellent choice for all interior doors and can easily be combined with other door accessories and products in the Vibe Plain series. This creates a well-thought-out and harmonious interior throughout the home. The handle is available in multiple finishes and, together with the key escutcheon, is designed for doors with a thickness of 35–48 mm.
- Specifications
-
Article depth: 54 mm Article length: 135 mm Article width: 24 mm - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
