Driver Drikon - 350-700mA/12-24V
Driver Drikon - 350-700mA/12-24V

Driver Drikon - 350-700mA/12-24V

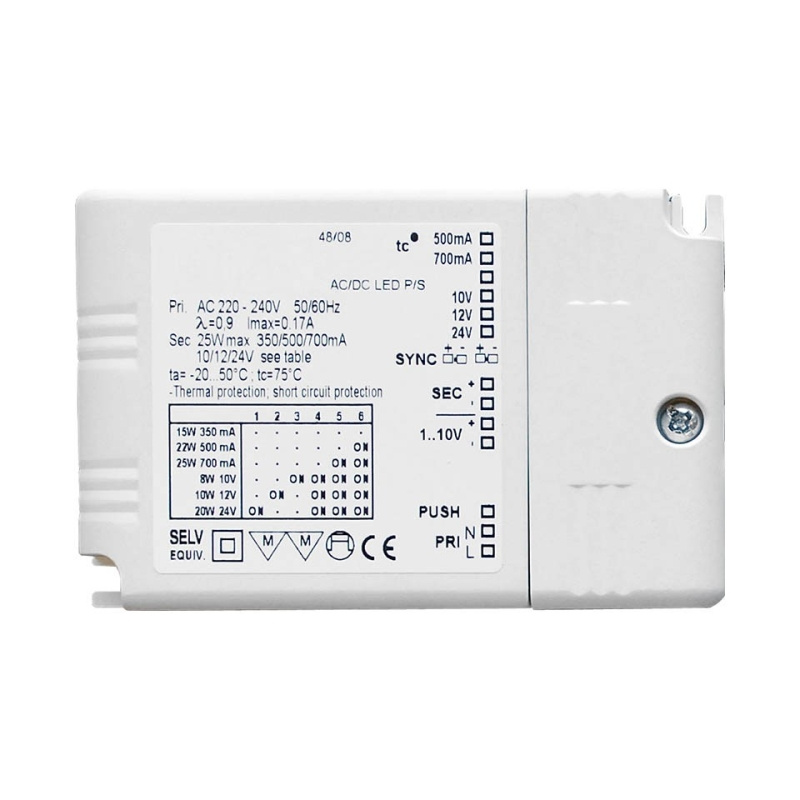

Multi-functional LED for LED with built-in PWM dimmer. Can power and control LED light sources for 350mA, 500mA, 700mA, 12V and 24V. Up to 10 drives can be linked and controlled from one or more places via resilient pushbutton (PUSH) or via Dimmer PIX 1-10V.

Dimmable: Yes
Synchronized: Yes

Adjustable between 350mA (max 15W), 500mA (max 22W) or 700mA ( max 25W) / 12V (max 10W) ​​or 24V (max 20W). Connection terminals and connection cables are not included. Be sure to connect all the lighting to the drive before connecting the drive to mains voltage (230V).

Find retailer The product can be found at our retailers.
  • Specifications

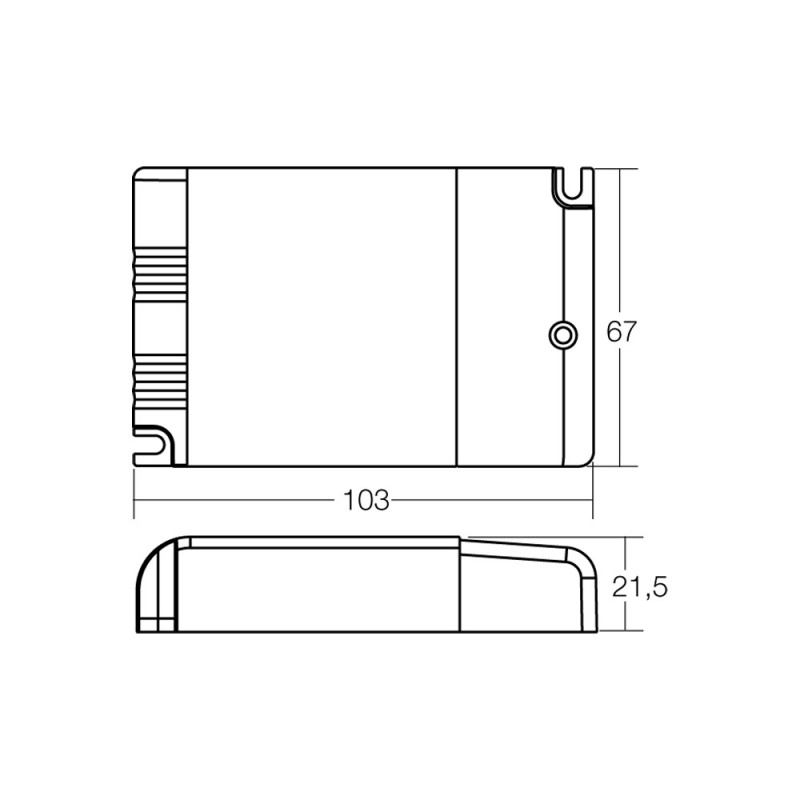

  • Article depth: 21,5 mm
    Article height: 21,5 mm
    Article length: 103 mm
    Article width: 67 mm
    Voltage (V): 1-10
  • Product sheet
