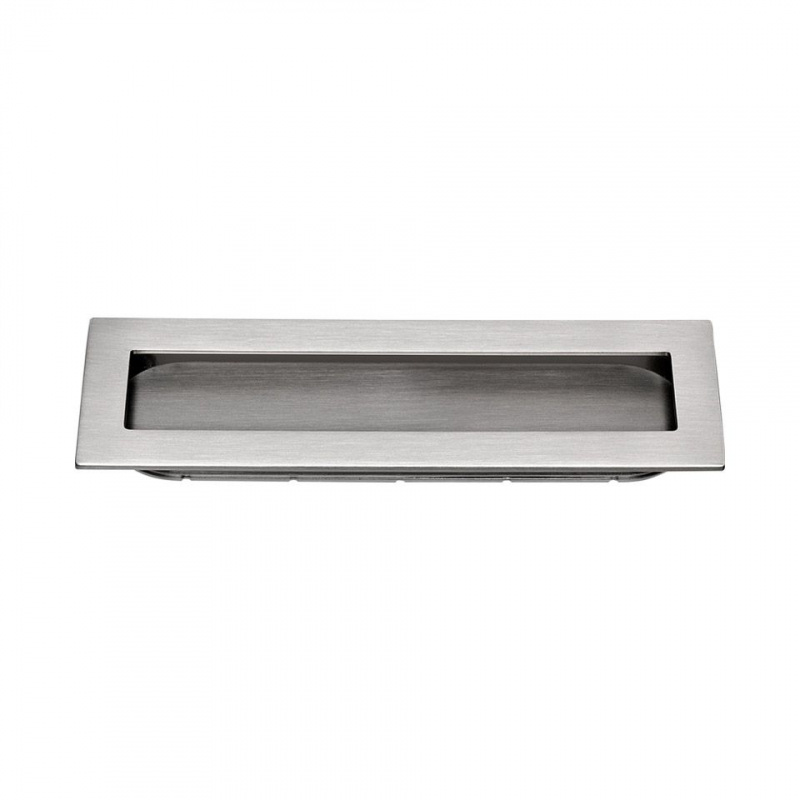

Recessed handle 512 - Stainless steel look

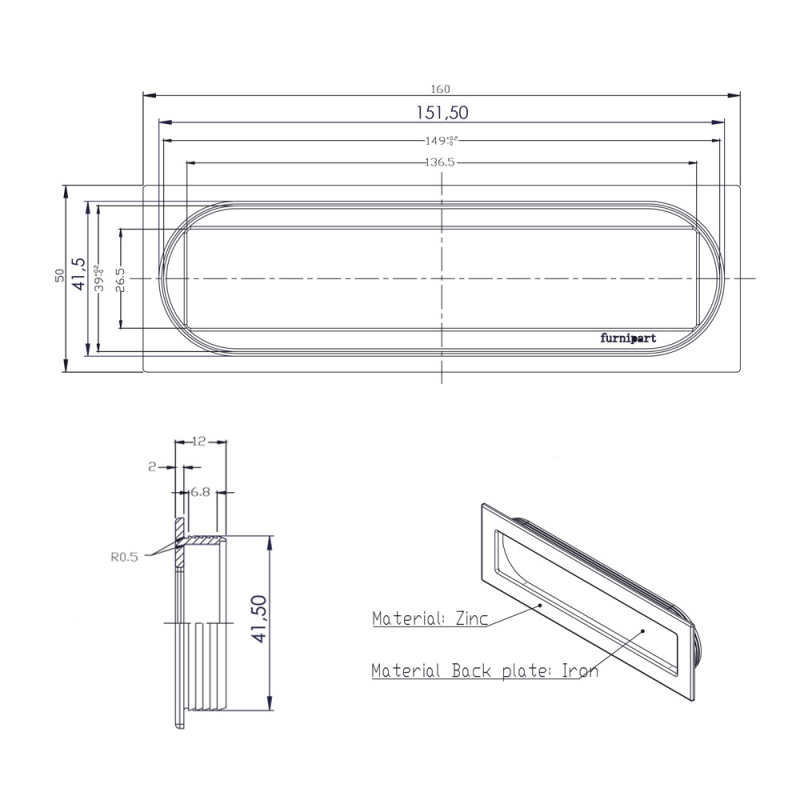

• Specifications

• Article depth:	12 mm
  Article length:	160 mm
  Article width:	50 mm
  Finish:	Stainless steel look
  Inset depth:	10 mm
  Recess length:	151 mm
  Recess width:	41 mm
• Care instructions
• Assembly and Installation

•
  Mounting of handles

  Mount the handle using the provided screws on the selected drawer, door, or piece of furniture. We recommend using a screwdriver to securely and stably attach the handle.



  The distance between the screw holes is called the C/C measurement, which stands for “center to center” and is always given in millimeters. To find your existing C/C measurement, simply measure the distance between the center points of the screw holes.


  Installation instructions for recessed handles:

  1. Rout a hole according to the handle's exact recess dimensions to ensure a perfect and stable fit.
  2. Use silicone adhesive to securely fix the handle in the hole.
  3. Gently press the handle into place and allow the adhesive to dry according to the manufacturer's recommendations.
