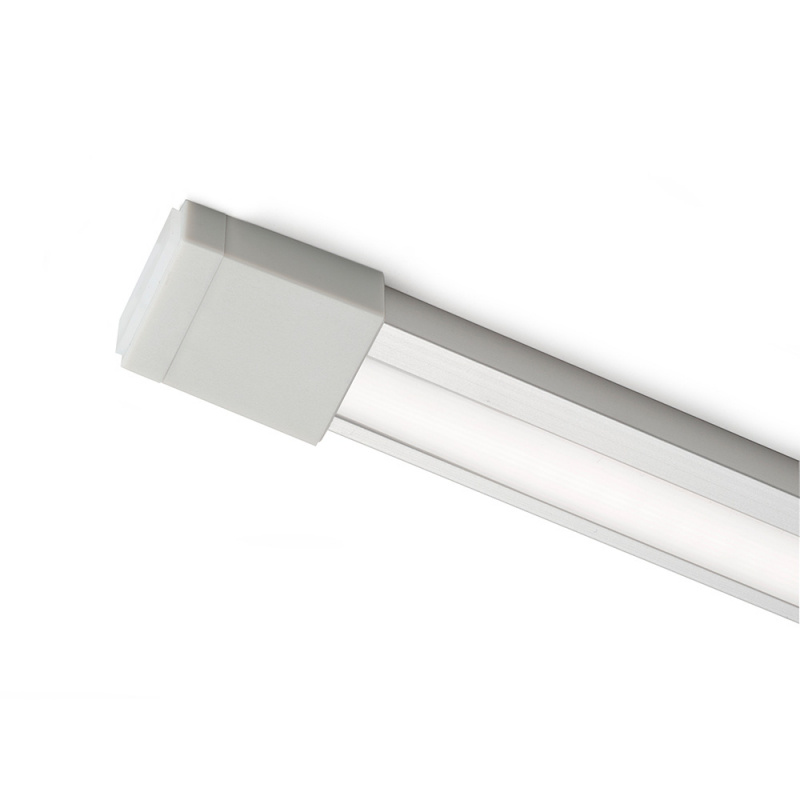

LED-armature Baski SF - Stainless steel

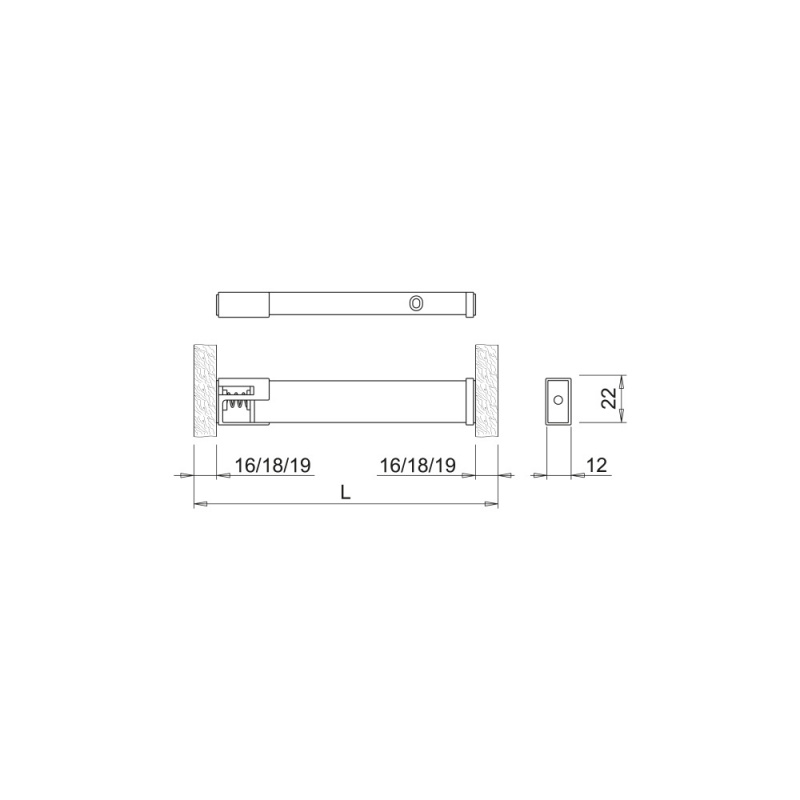

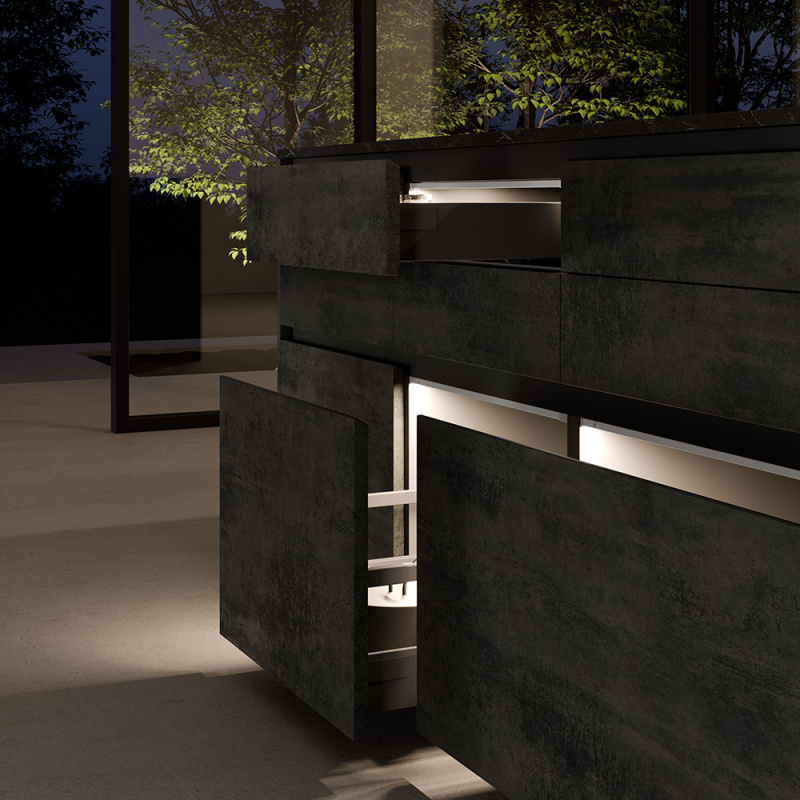

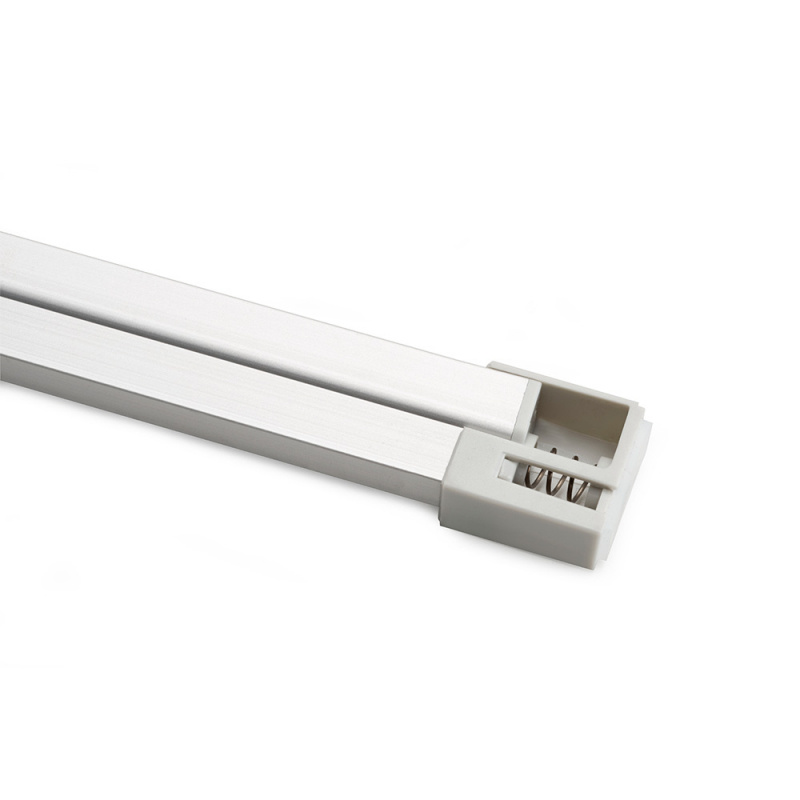

Baski SF is a LED luminaire designed for kitchen units, recommended for use inside units with pull-out elements or swing doors. The (patented) fixing system with side-pressed springs enables Baski SF to be installed without screws on the sides of the base with thickness 16 mm, 18 mm and 19 mm.

The profile, just 12 mm thick integrates an infra-red sensor that automatically turns on and off when the cabinet is opened and closed.

Baski SF contains Osram© LED diodes, which provides an even light. The fixture has a spring-loaded attachment, which makes installation quick and easy.

• Specifications

• Article depth:	22 mm
  Article length:	12 mm
  Article width:	462-470 mm , 562-570 mm , 762-770 mm
  Brightness (at 500mm):	1050 lux
  Color rendering (CRI):	>80 CRI
  Color Temp (K):	3000 K
  Effect (W):	10,5 W , 6,2 W , 7,2 W
  Energy class:	F
  Light flux (lm):	75 lm
  Voltage (V):	24
