LED-profile Sidy UHE IFR DX - Black
LED-profile Sidy UHE IFR DX - Black
LED-profile Sidy UHE IFR DX - Black
LED-profile Sidy UHE IFR DX - Black
LED-profile Sidy UHE IFR DX - Black
LED-profile Sidy UHE IFR DX - Black

LED-profile Sidy UHE IFR DX - Black

ledprofil-sidy-svart

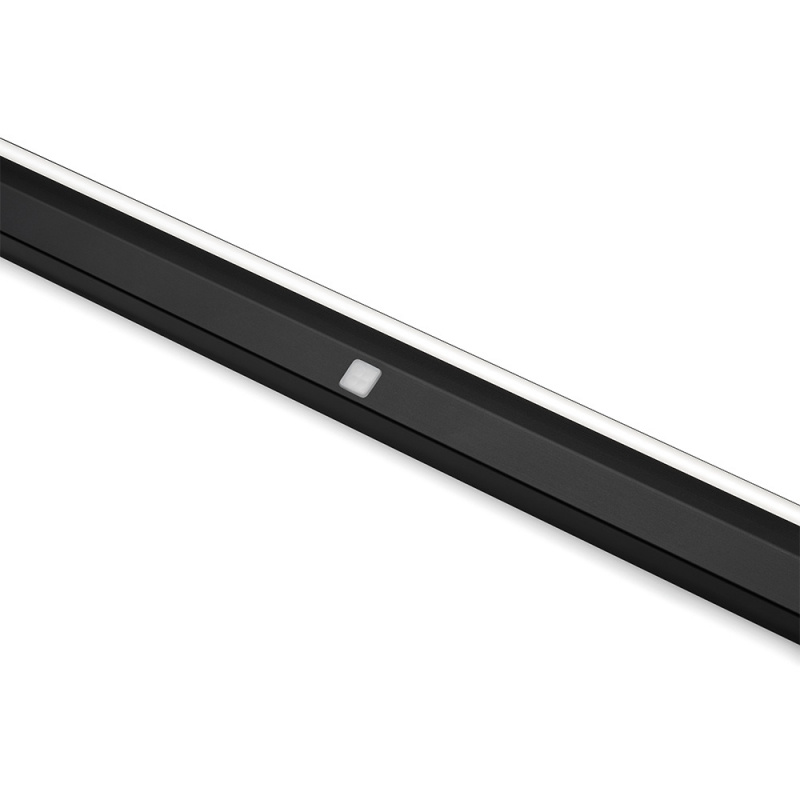

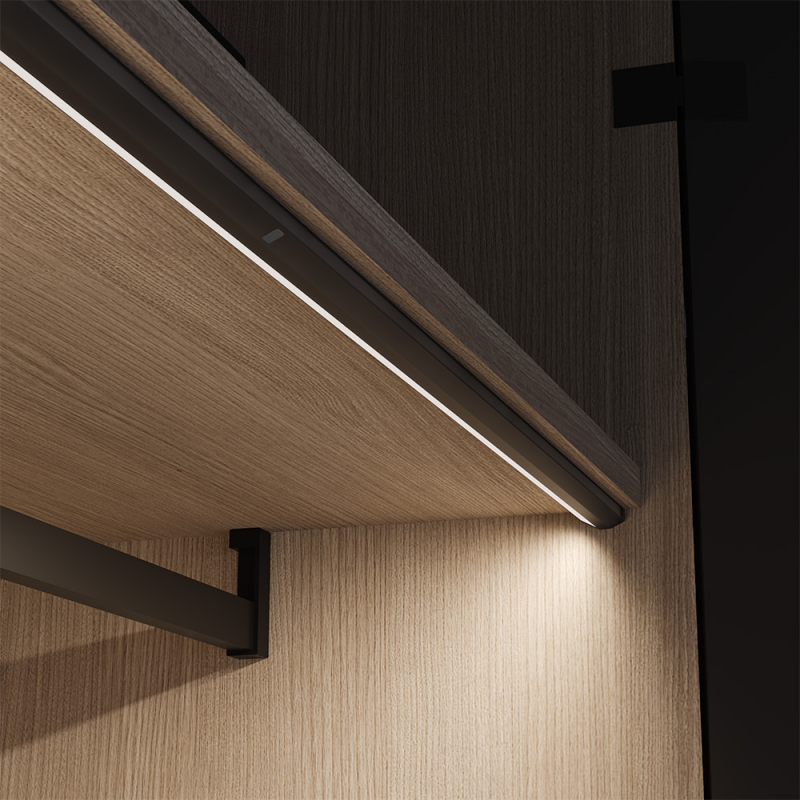

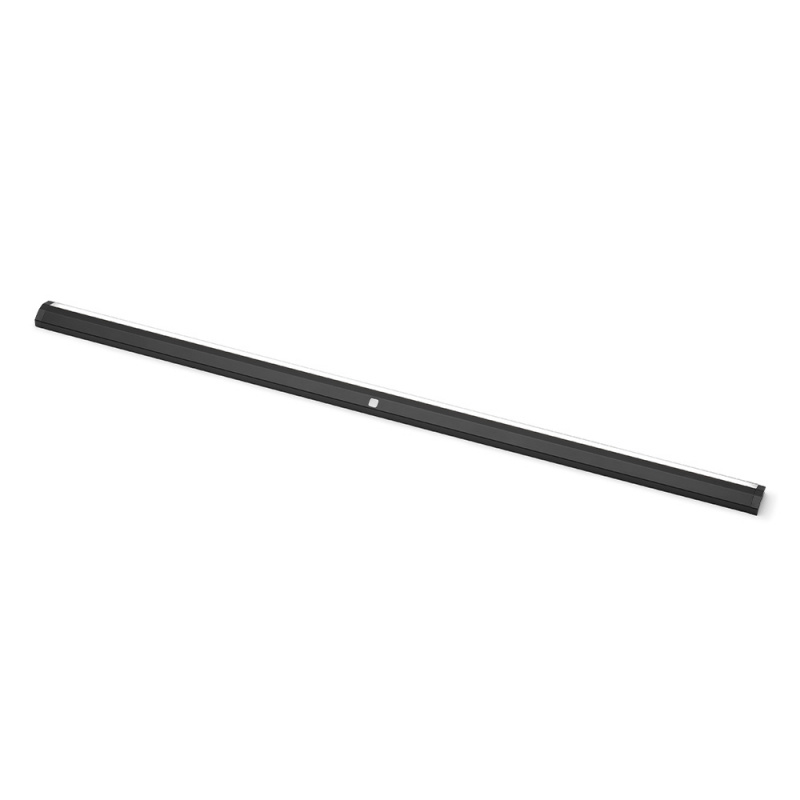

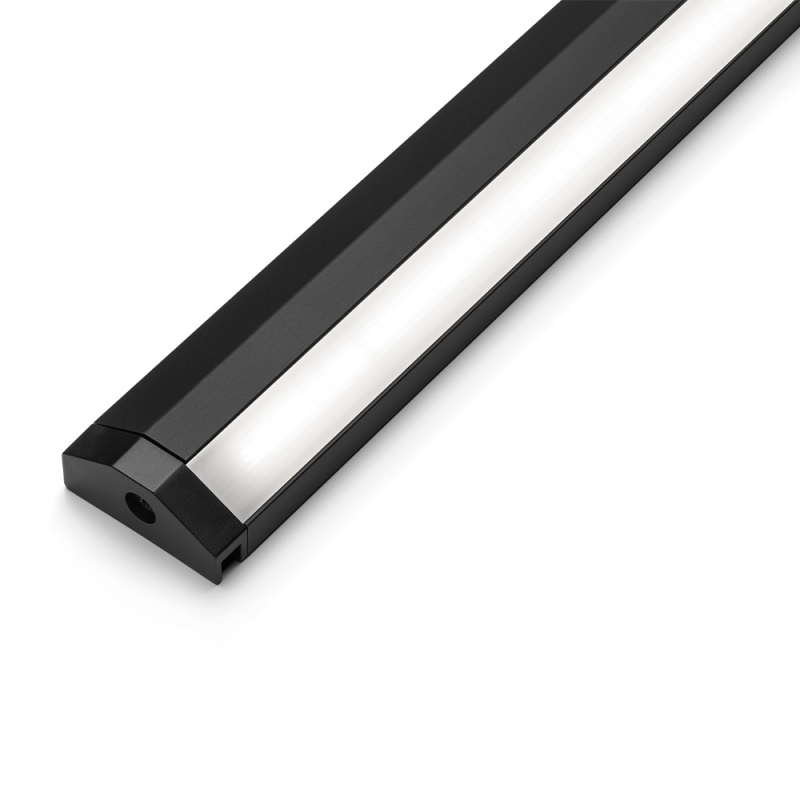

LED profile Sidy UHE IFR DX in black finish is a well-considered lighting solution for cabinets and storage, where both functionality and ease of use are in focus. The profile is designed for surface mounting and provides a directed, indirect light that effectively illuminates the interior of furniture.

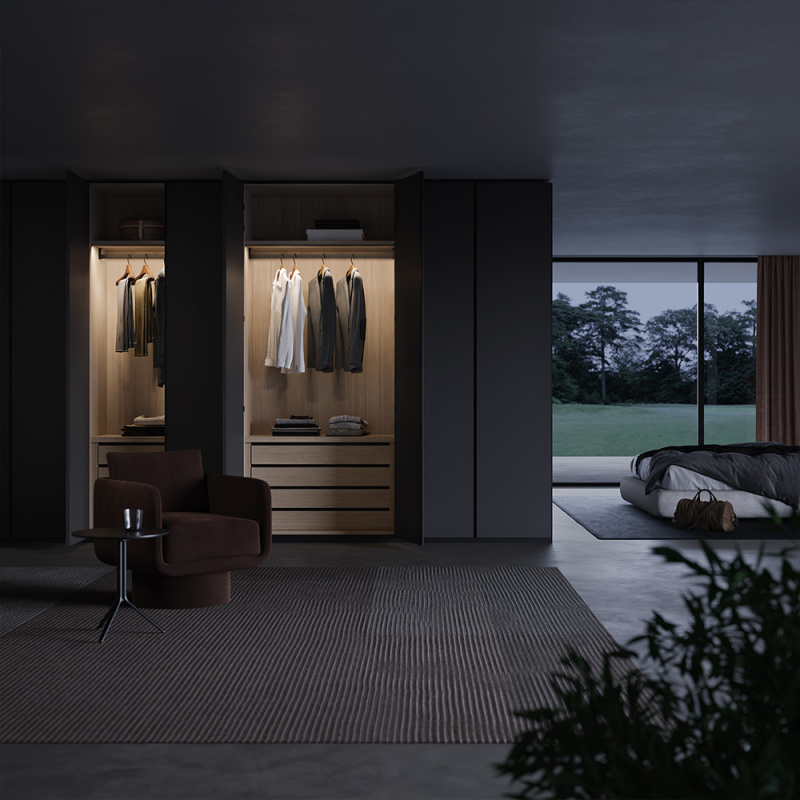

The asymmetrical light distribution is directed backwards, creating an even and comfortable light without glare. The solution is particularly suited for wardrobes, kitchen cabinets and other storage applications.

Sidy is equipped with an integrated PIR sensor that automatically activates the light when movement is detected or when a cabinet door is opened. The light turns on instantly and switches off with a delay of approximately 30 seconds, contributing to both increased comfort and energy-efficient use.

The high LED density provides a uniform light output with a warm colour temperature (2700K) and good colour rendering, making the profile suitable for environments where both function and visual quality are important.

The profile can be mounted using screws or adhesive tape depending on the application and surface, offering flexibility during installation. Both options are included.

• Surface-mounted installation
• Asymmetrical, backward-directed light distribution
• Integrated PIR sensor (automatic on/off)
• Delayed switch-off (approx. 30 sec)
• Colour temperature: 2700K
• Voltage: 24V
• High LED density for uniform light
• Suitable for cabinets, wardrobes and storage
• Available in multiple lengths




Qty:
Find retailer The product can be found at our retailers.
  • Specifications
  • Amperage (mA): IP20 mA

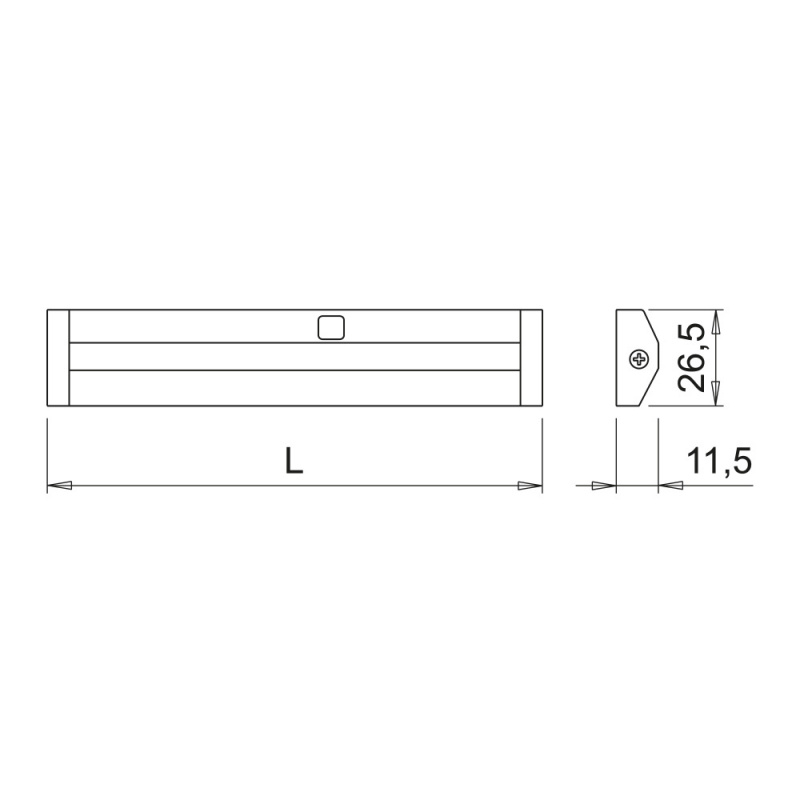

    Article depth: 11,5 mm
    Article length: 460 mm , 560 mm , 760 mm
    Article width: 26,5 mm
    Color Temp (K): 2700 K
    Connection type: 24Vdc
    Effect (W): 4,3 W , 5,3 W , 7,3 W
    Energy class: E
    Mounting lighting: Surface mounted
  • Care instructions
  • Assembly and Installation
  • Installation guide
  • Material and Finish
  • Documentation
  • Installation manual
  • Product sheet
