LED-spot Stella Flat 24 - White
LED-spot Stella Flat 24 - White

LED-spot Stella Flat 24 - White

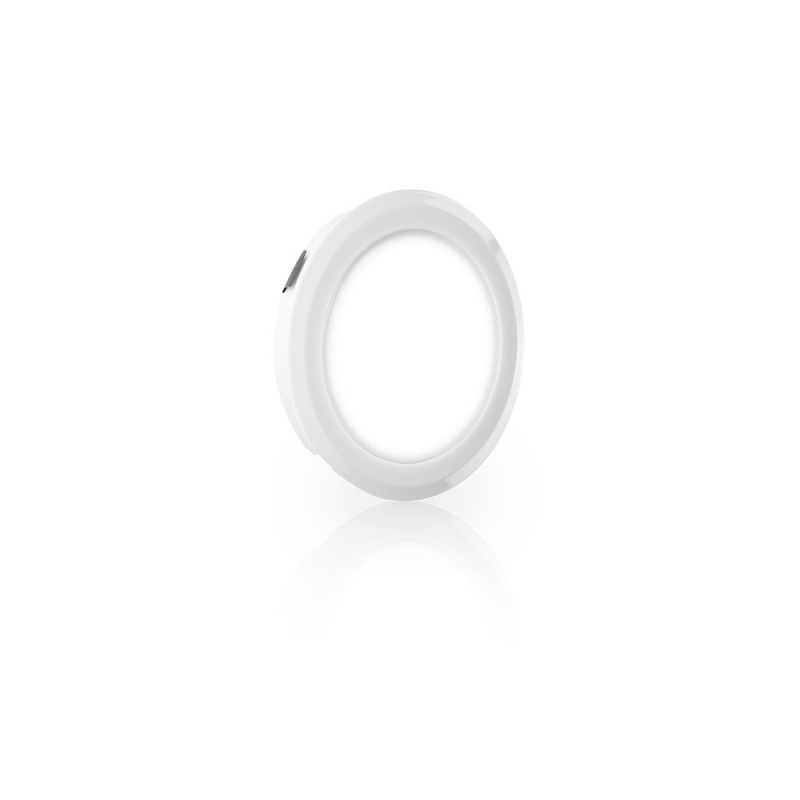

STELLA FLAT 24 is an updated version of the LED spot Stella that was launched in 2011. Stella 24 is equipped with COB (Chip-on-Board) technology. The technology means that the LEDs can be mounted very tightly and directly on the circuit board, which provides a crystal clear light without visible diodes. At the same time, the energy consumption can be reduced as the number of components that the current passes between the circuit board and the diode is reduced. Fits all our 24V dimmers and sensors.

Find retailer The product can be found at our retailers.
  • Specifications
  • Article depth: 10,5 mm
    Article diameter: 60 mm
    Article length: 60 mm
    Article width: 60 mm
    Brightness (at 500mm): 550 lux
    Color rendering (CRI): >85 CRI
    Color Temp (K): 2700 K , 3000 K
    Connection type: Micro24
    Effect (W): 3 W
    Energy class: A++
    Inset depth: 8,5 mm
    IP-class: IP-class 44
    Light flux (lm): 248 lm
    Recess diameter: 55 mm
    Voltage (V): 24
  • Product sheet
  • Installation guide
