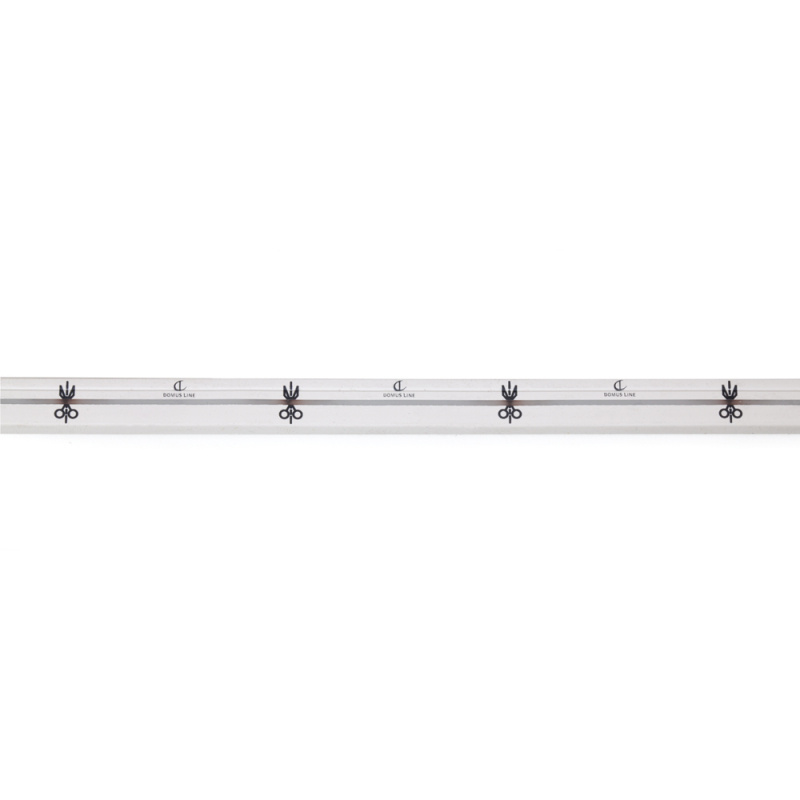

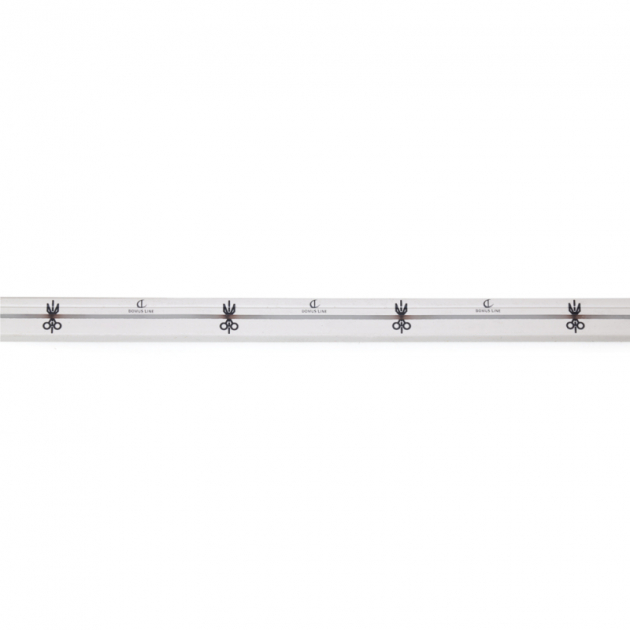

LED strip Flexy LED SE H4-24 Pro

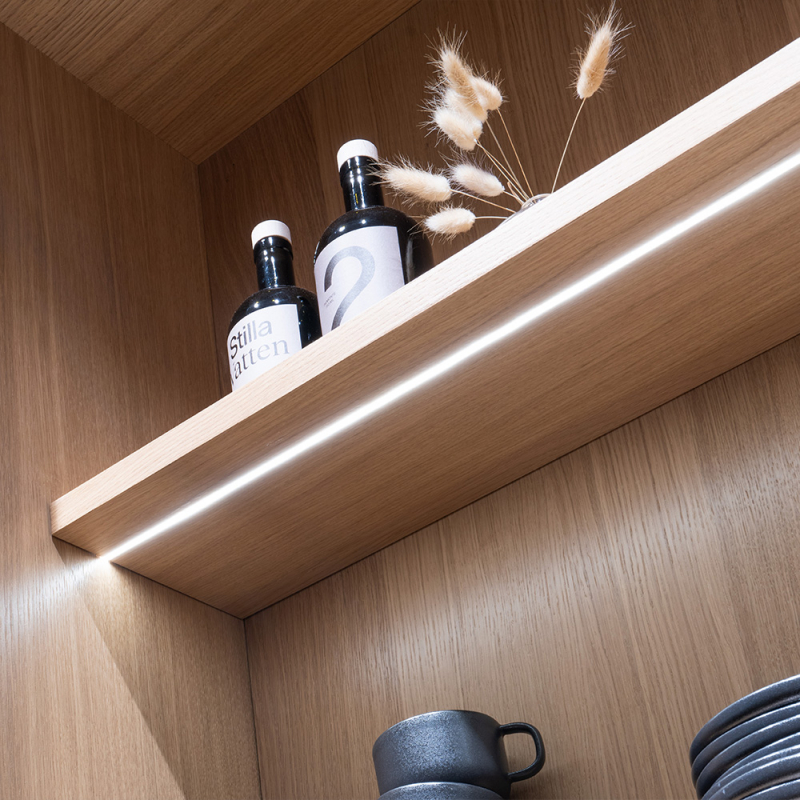

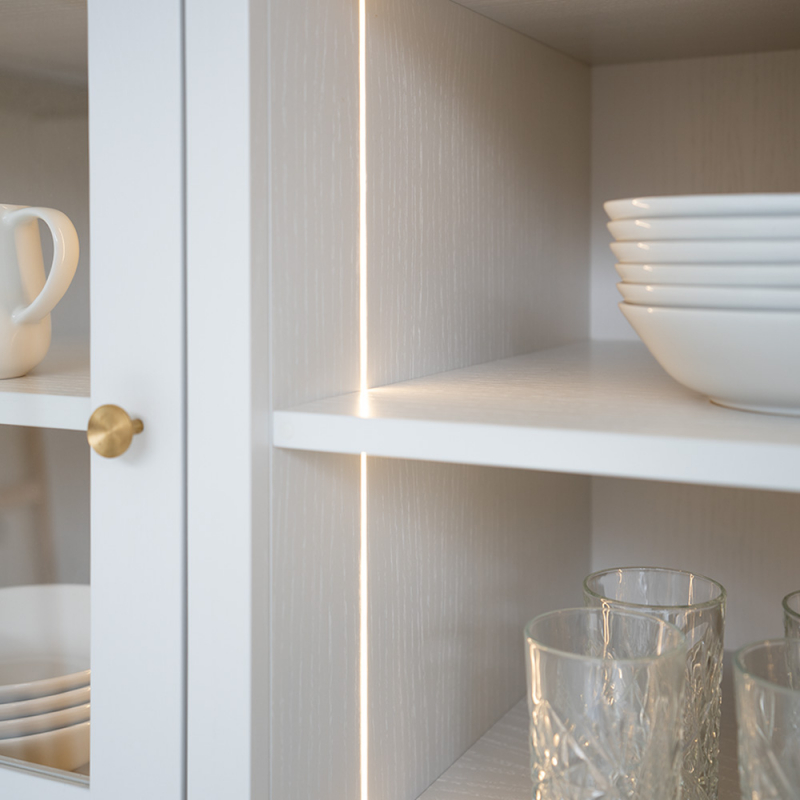

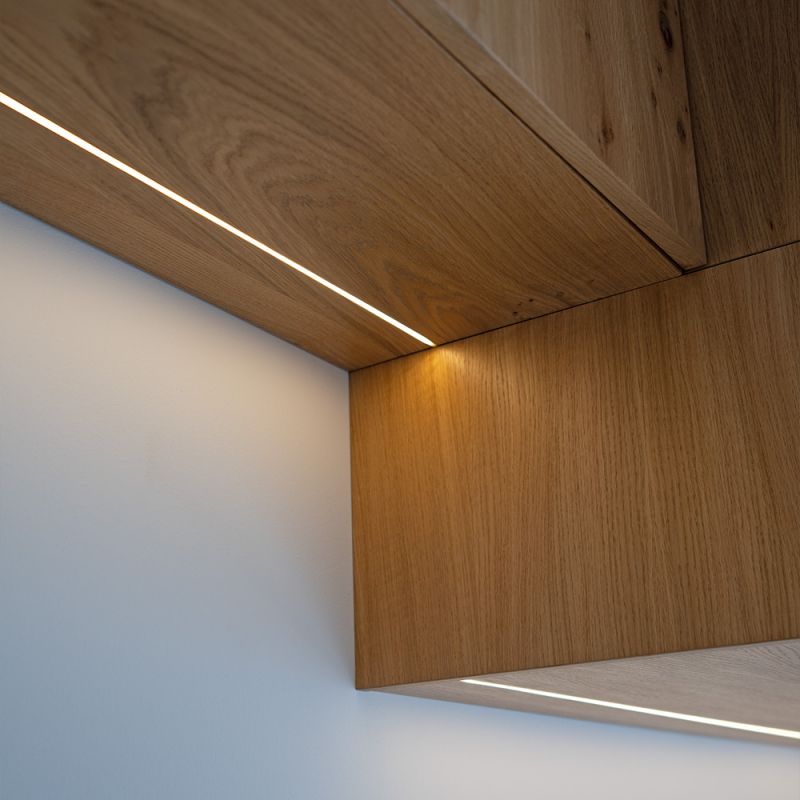

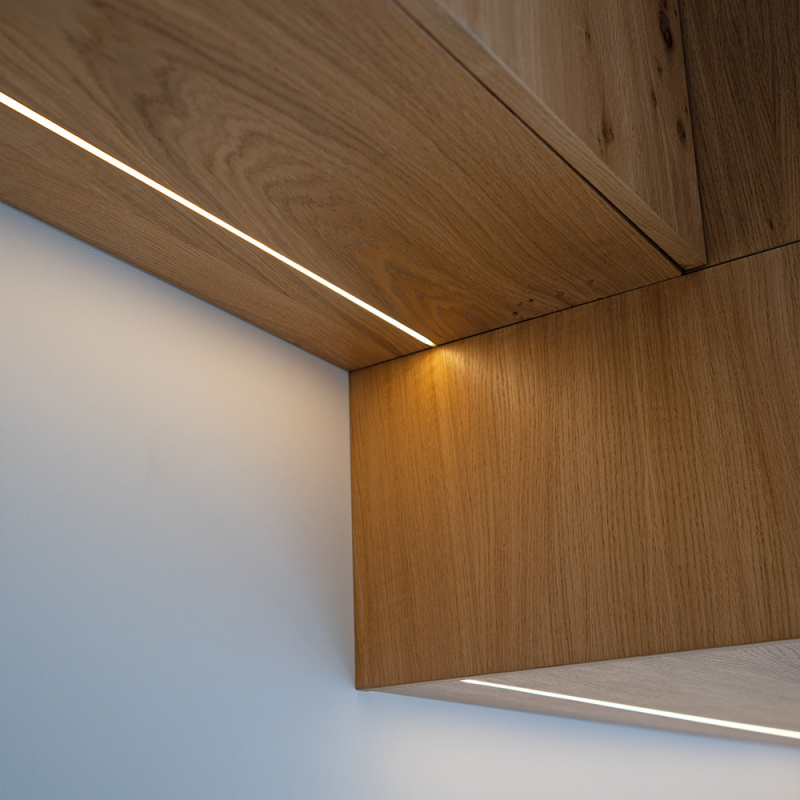

flexy-led-se-h4-24-proLED-strip Flexy SE H4 24 Pro is a flexible recessed LED profile with a minimalist design and high lighting quality. The slim construction allows installation in routed grooves of only 4 mm width and 8 mm depth, creating a clean and almost seamless appearance in kitchens, wardrobes, bathrooms and bespoke joinery projects.
The soft silicone profile with opal diffuser provides an even and comfortable light without visible light dots. The soft and flexible silicone means the profile does not require separate fixing and can simply be pressed into routed grooves.

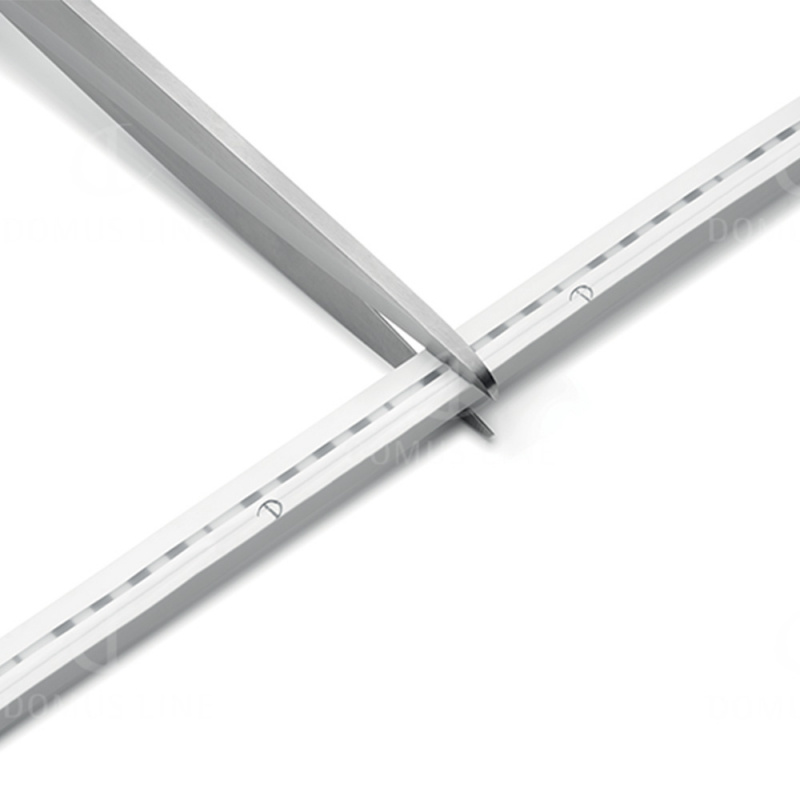

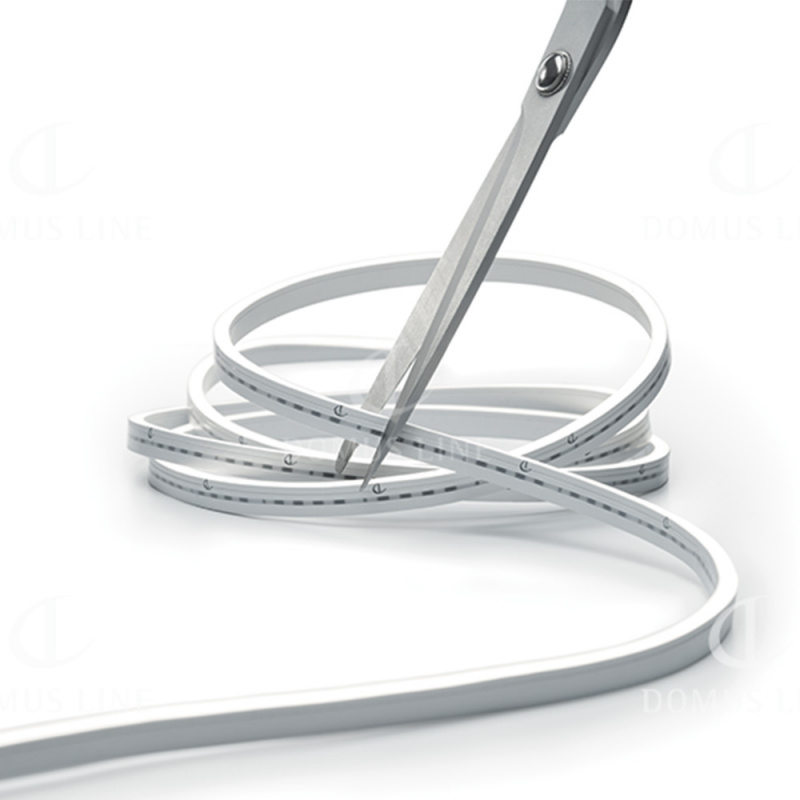

Flexy SE H4 24 Pro is developed with FREE-CUT technology, meaning the LED strip can be cut to the desired length at any point without fixed cutting intervals. The flexible construction also makes it possible to install the profile in both straight and softly curved grooves.
• FREE-CUT – can be cut to any desired length
• Ultra-slim design for recessed installation in 4 mm grooves
• Only 8 mm installation depth

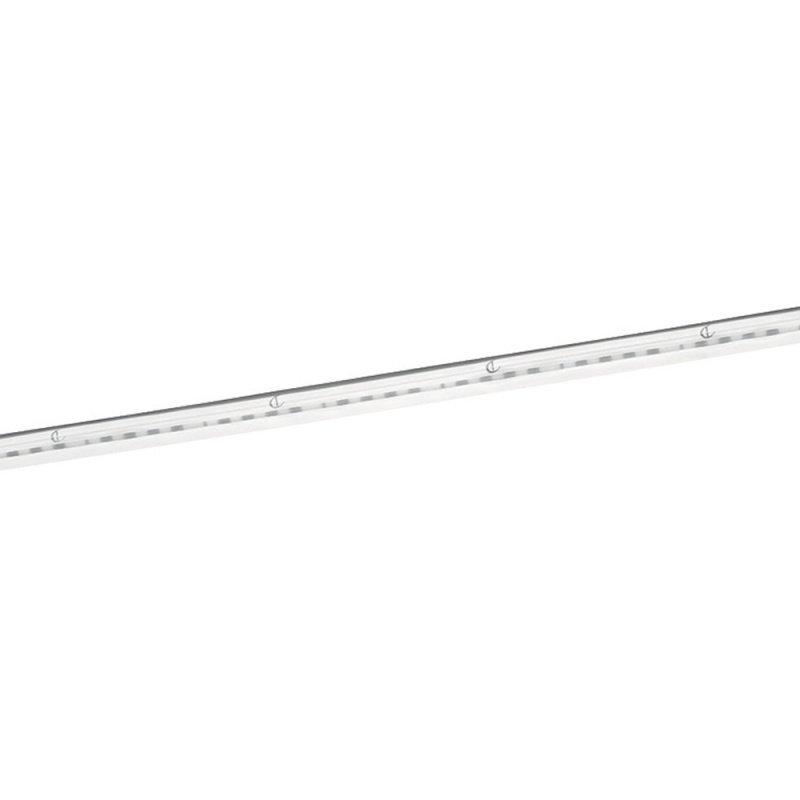

• Even light without visible LEDs
• Flexible construction for straight and curved installations
• IP44 rated
• CRI 90 for high colour rendering
• Up to 104 lm/W
• 180 LED/m for an even light distribution

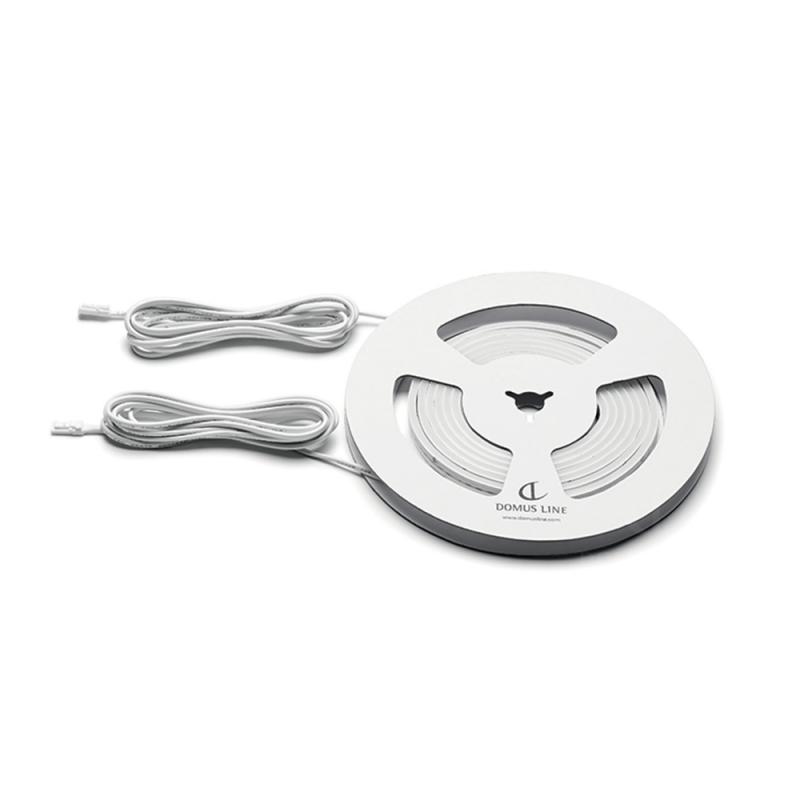

• Dual 2000 mm connection cables
• 24V system
• Driver sold separately
Developed for projects and environments where discreet lighting, precision and flexibility are essential.
2000 mm connection cable included.


The soft silicone profile with opal diffuser provides an even and comfortable light without visible light dots. The soft and flexible silicone means the profile does not require separate fixing and can simply be pressed into routed grooves.
Flexy SE H4 24 Pro is developed with FREE-CUT technology, meaning the LED strip can be cut to the desired length at any point without fixed cutting intervals. The flexible construction also makes it possible to install the profile in both straight and softly curved grooves.
• FREE-CUT – can be cut to any desired length
• Ultra-slim design for recessed installation in 4 mm grooves
• Only 8 mm installation depth
• Even light without visible LEDs
• Flexible construction for straight and curved installations
• IP44 rated
• CRI 90 for high colour rendering
• Up to 104 lm/W
• 180 LED/m for an even light distribution
• Dual 2000 mm connection cables
• 24V system
• Driver sold separately
Developed for projects and environments where discreet lighting, precision and flexibility are essential.
2000 mm connection cable included.


- Specifications
-
Amperage (mA): 20 mA Article depth: 1,2 mm , 4 mm Article length: 1000 mm , 2000 mm , 3000 mm Article width: 10 mm , 8 mm Brightness (at 500mm): 170 lux Color rendering (CRI): 90 CRI Color Temp (K): 3000 K Connection type: Micro 24-M Effect (W): 10 W , 20 W , 30 W Energy class: F Inset depth: 8 mm Light flux (lm): 800 lm Recess height: 4 mm Recess length: 1000 mm , 2000 mm , 3000 mm Voltage (V): 24 - Care instructions
- Assembly and Installation
- Installation guide
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
