LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra
LED-stripe Flexy SE H4 Ultra

LED-stripe Flexy SE H4 Ultra

se-h4-ultra

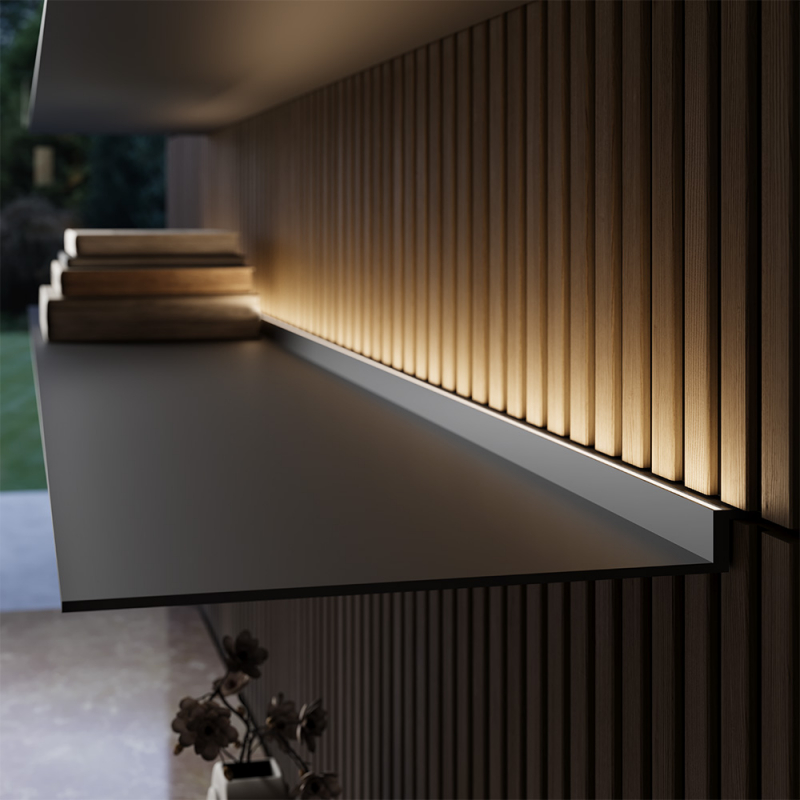

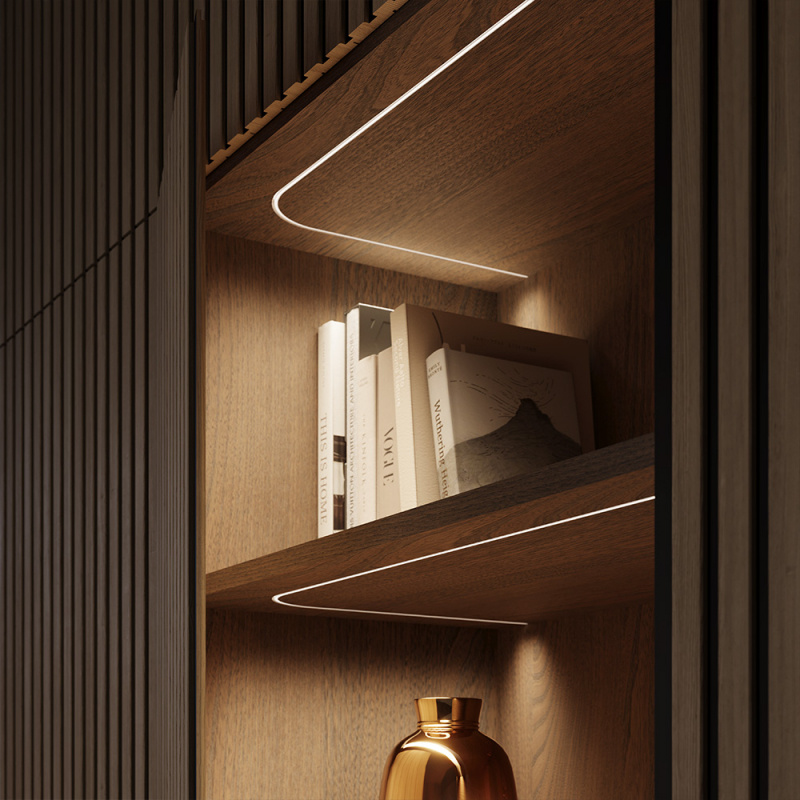

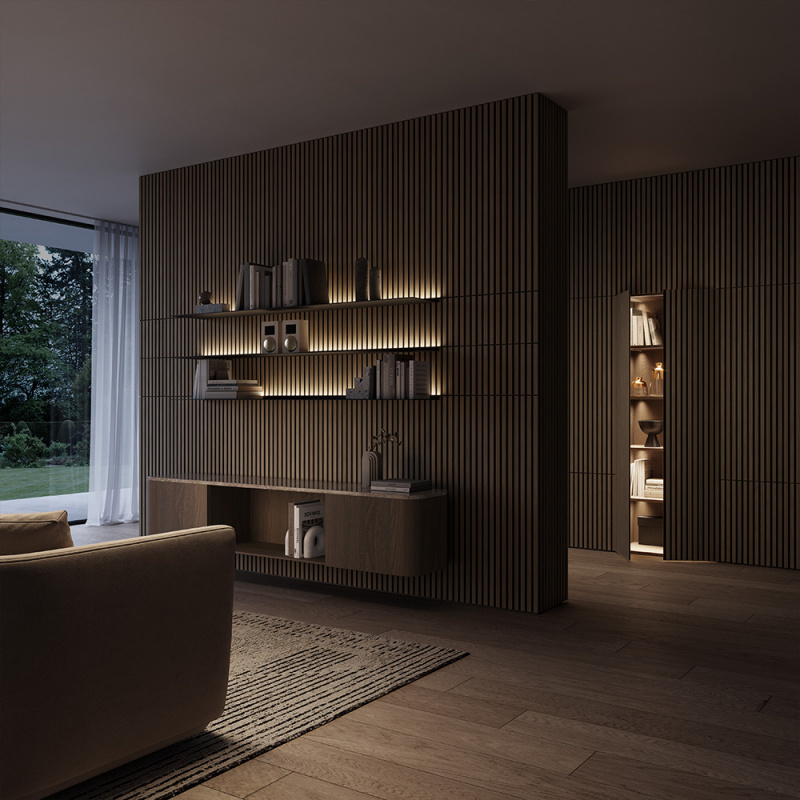

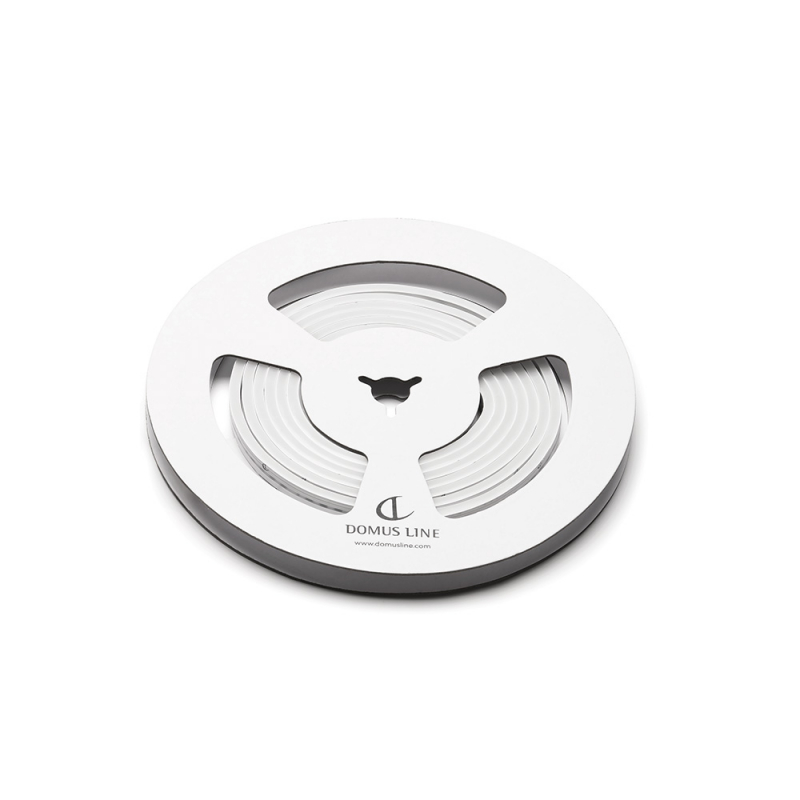

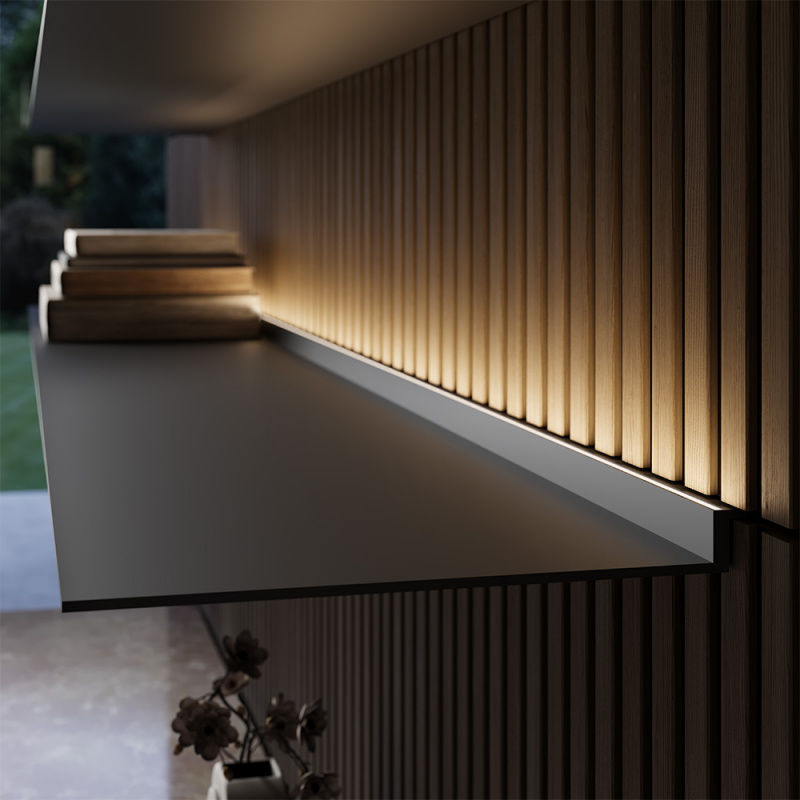

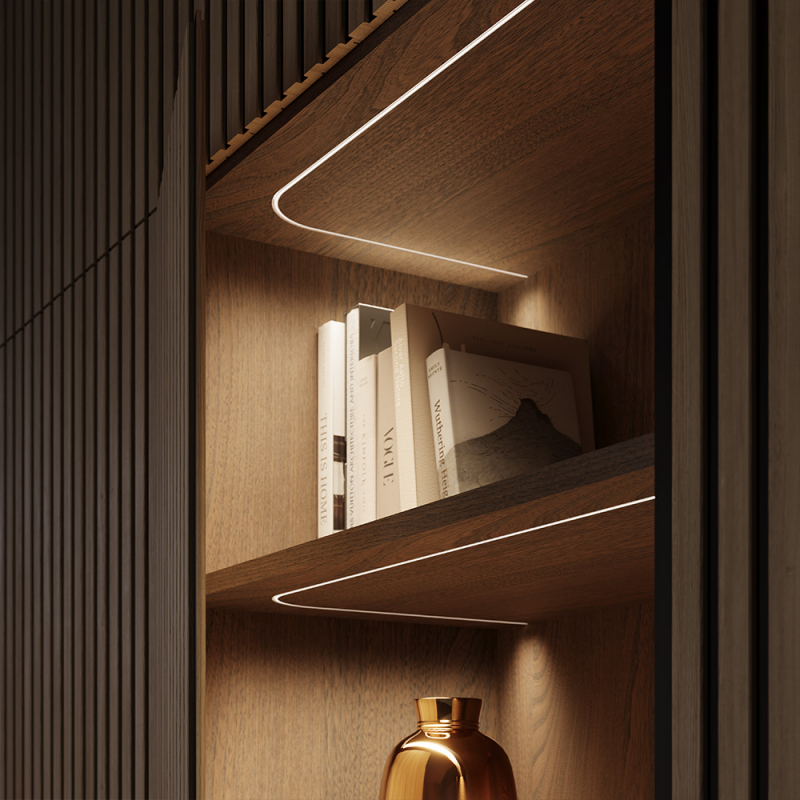

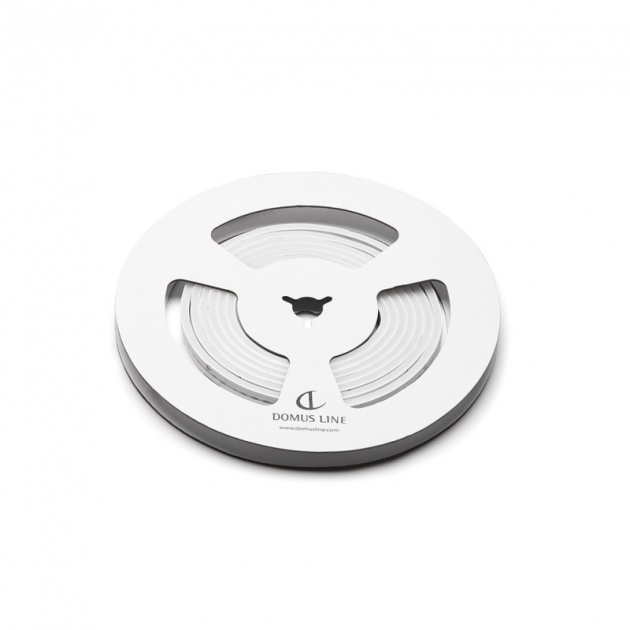

Flexy SE H4 Ultra is a recessed silicone LED strip supplied on a reel for cutting to the required length. It provides discreet and uniform illumination with a fully integrated appearance and is installed in a 4 mm wide and 8 mm deep routed groove, sitting flush with the surface. This makes it ideal for kitchens, wardrobes, bathroom furniture and other cabinetry where the lighting should blend seamlessly into the design. The symmetrical light distribution provides comfortable, even illumination without drawing attention to the luminaire.

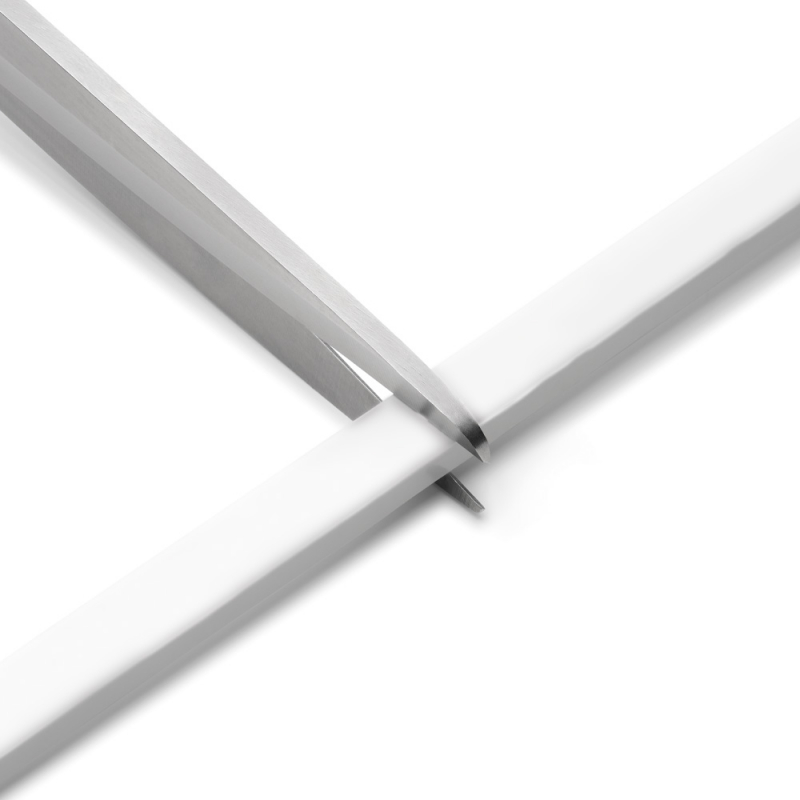

Thanks to its Free-Cut technology, the LED strip can be cut to the exact required length anywhere along the profile, without fixed cutting intervals. This provides maximum flexibility during planning and installation while minimising material waste. After cutting, the strip can easily be fitted with a connection cable or double-sided connector for a secure and flexible connection.

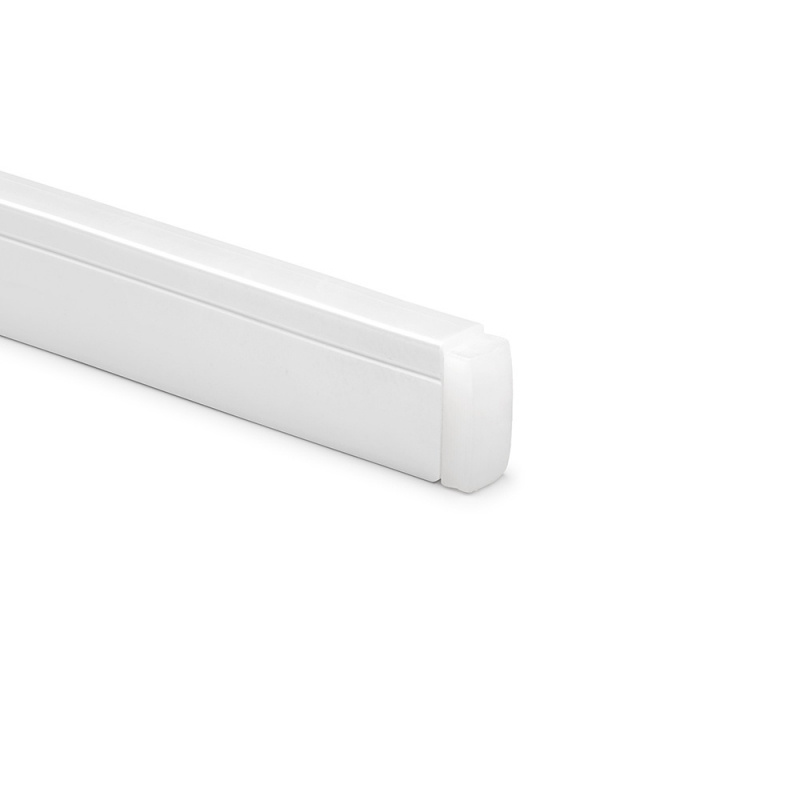

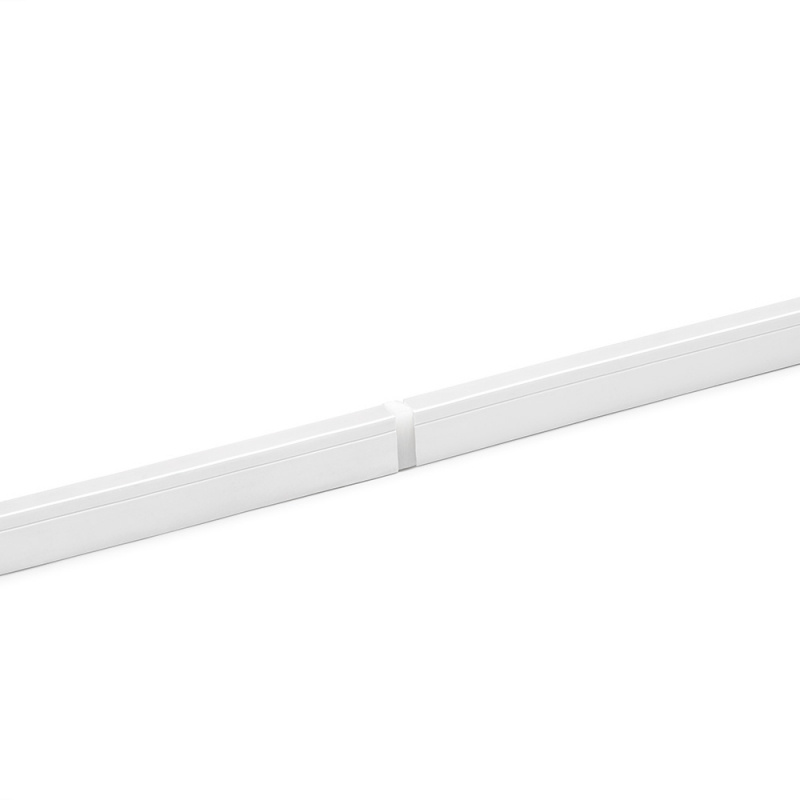

The end caps are designed to match the dimensions of the LED strip, allowing the entire installation to sit completely flush within the routed groove for a clean and seamless finish. The connection cable can be routed either straight back or to the side, providing greater flexibility during planning and installation.

The LED strip operates on 24 V and has a power consumption of 10 W/m. It is available in 2700 K and 3000 K colour temperatures. Connection cable, double-sided connector and driver are sold separately.


Qty:
Find retailer The product can be found at our retailers.
  • Specifications
  • Article depth: 4 mm
    Article length: 10000 mm , 6000 mm
    Article width: 8 mm
    Color Temp (K): 2700 K , 3000 K
    Connection type: 24Vdc
    Effect (W): 100 W , 60 W
    Energy class: F
    Mounting lighting: Recessed
  • Care instructions
  • Assembly and Installation
  • Installation guide
  • Material and Finish
  • Documentation
  • Installation manual
  • Product sheet

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:

Accessories we recommend

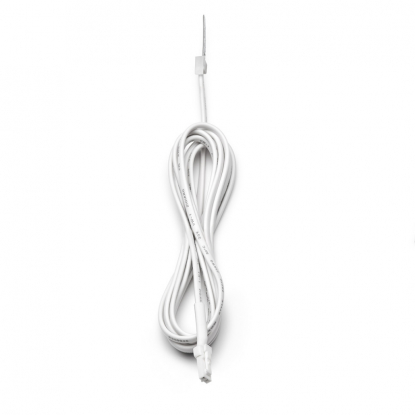

Connection Cable SE H4 Ultra/bilder/artiklar/liten/973860_S.jpg?m=1783066125

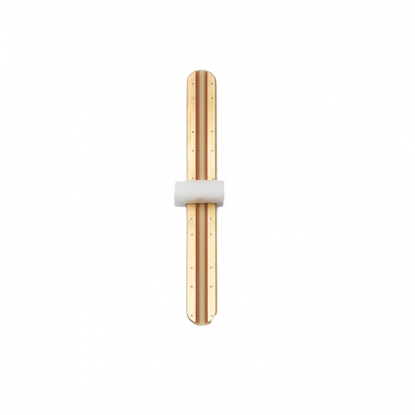

Double-Sided Connector SE H4 Ultra/bilder/artiklar/liten/973865_S.jpg?m=1783066146
