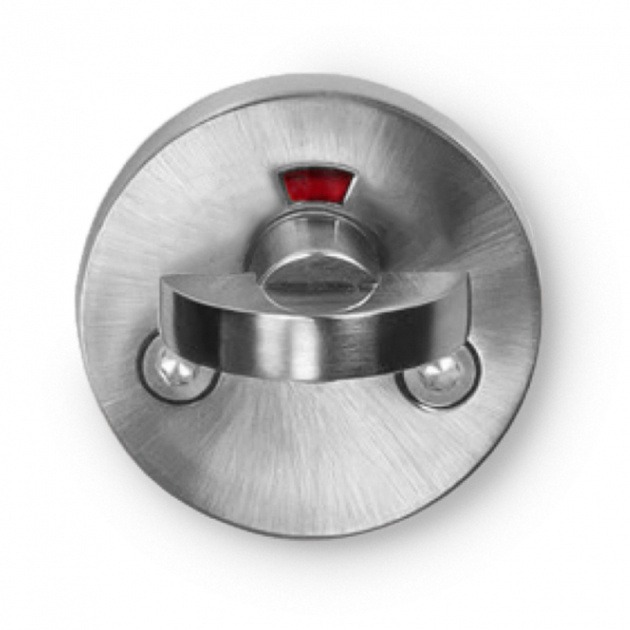

Toilet Fittings Form - Brushed Chrome
750241-41Toilet thumb turn Form is a stylish toilet thumb turn that is available in 4 different designs; matt black, matt brushed chrome, stainless steel look and chrome.
Fits lock case 2014 or lock cases with the same hole configuration. If you are unsure about which lock you have, please consult a professional.
Fits lock case 2014 or lock cases with the same hole configuration. If you are unsure about which lock you have, please consult a professional.
- Specifications
-
Article depth: 7,5 mm Article diameter: 49 mm Article length: 49 mm Article width: 49 mm C/C-dimensions: 27 mm Measurements of the foot: 49 mm - Care instructions
- Assembly and Installation
Installation of Toilet Thumb Turn
1. Place the spindle in the lock. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
2. Place both parts of the bathroom lock against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.
3. Use the included screws and sleeves to tighten the two parts of the bathroom lock with an Allen key.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
