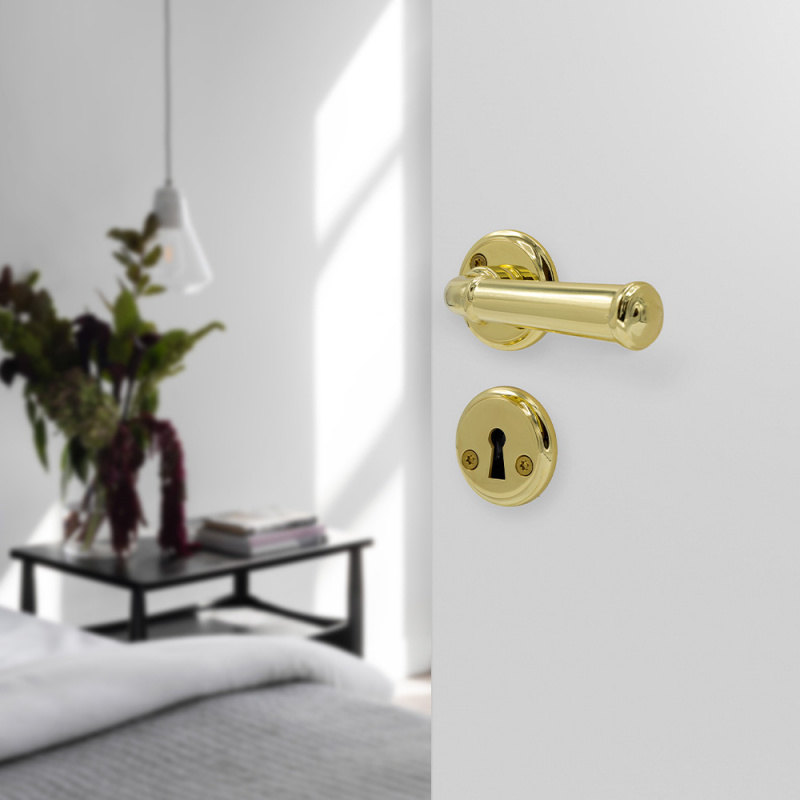

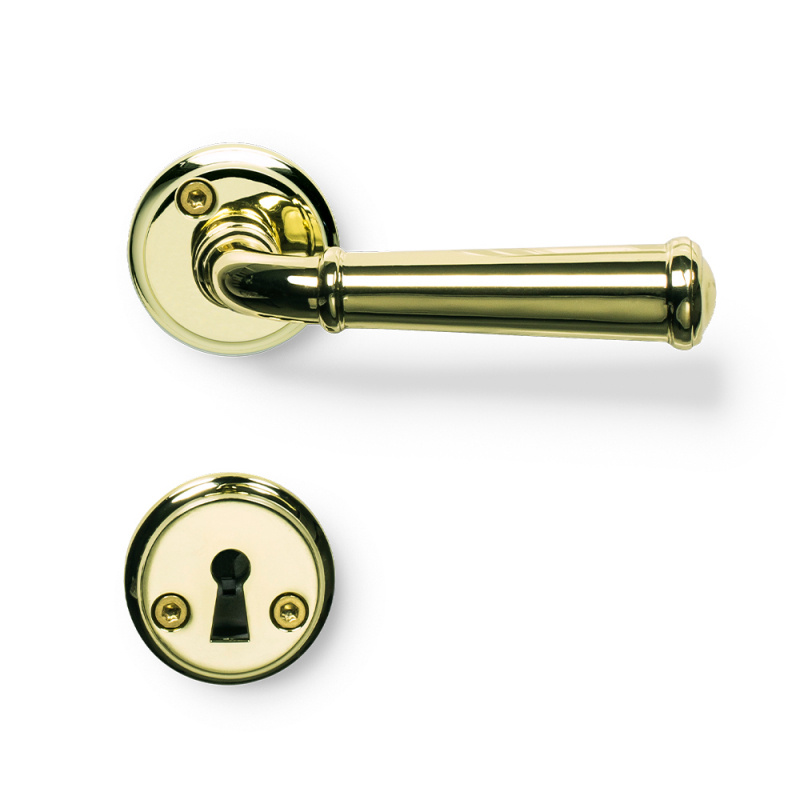

Door Handle Hampton - Brass

75008-41

Elegant door handle. Hampton is a solid handle that is completely made of metal and gives a stylish look. Ideal for both traditional and modern environments. The door handle is available in the chrome, tin and brass versions.

Fits on doors that have a door leaf thickness of 35-60 mm.
Key plate and complete mounting kit included.

See product sheet below for mounting instructions.

Specifications
Article depth: 67 mm

Article diameter: 49 mm

Article length: 118 mm

Article width: 24,5 mm

C/C-dimensions: 30 mm
Care instructions
Assembly and Installation
Installation of door handle

1. To ensure the best fit, it is important that the spindle is centered in the door during installation.
2. Place one half of the handle on the spindle. Tighten the set screw so that the tip penetrates the spindle.
3. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
4. Place the other part of the handle on the spindle. Ensure that the octagonal part of the sleeves fits correctly into the octagonal holes.
5. Use the included screws and sleeves to tighten the two handle parts together with an Allen key.
6. Tighten the set screw with an Allen key until the tip penetrates the spindle.

Installation of key escutcheon

1. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
2. Place the rosettes tightly against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.
3. Use the included screws and sleeves to attach the key plates with an Allen key.

See the full installation instructions here.
