Toilet Fitting Classic - Polished Brass in the group Products / Door handles / Toilet thumb turn at Beslag Design i Båstad Aktiebolag (750081-41)

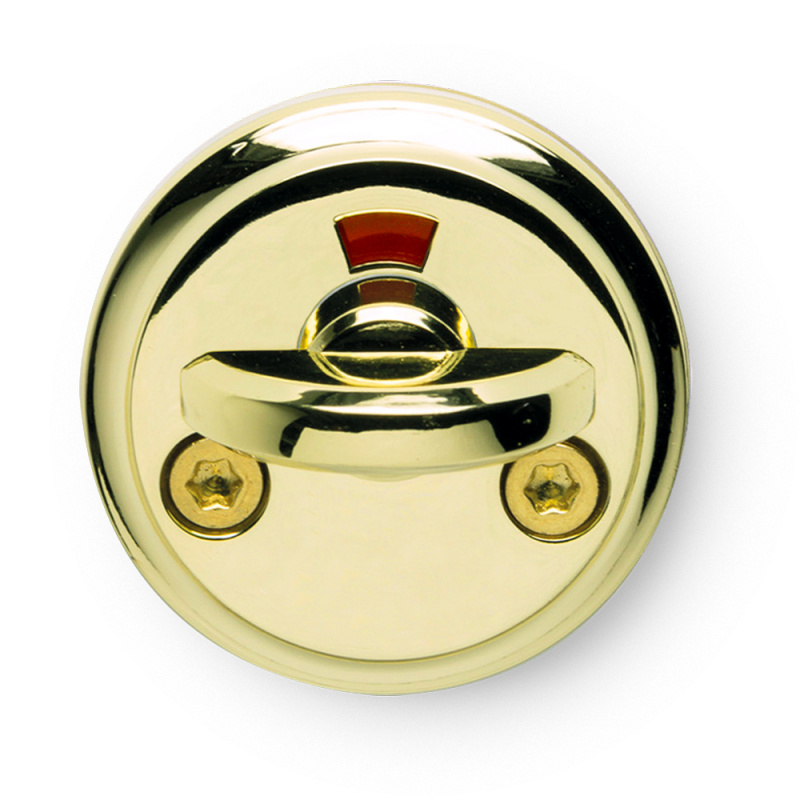

Toilet Fitting Classic - Polished Brass
Toilet Fitting Classic - Polished Brass

Toilet Fitting Classic - Polished Brass

750081-41

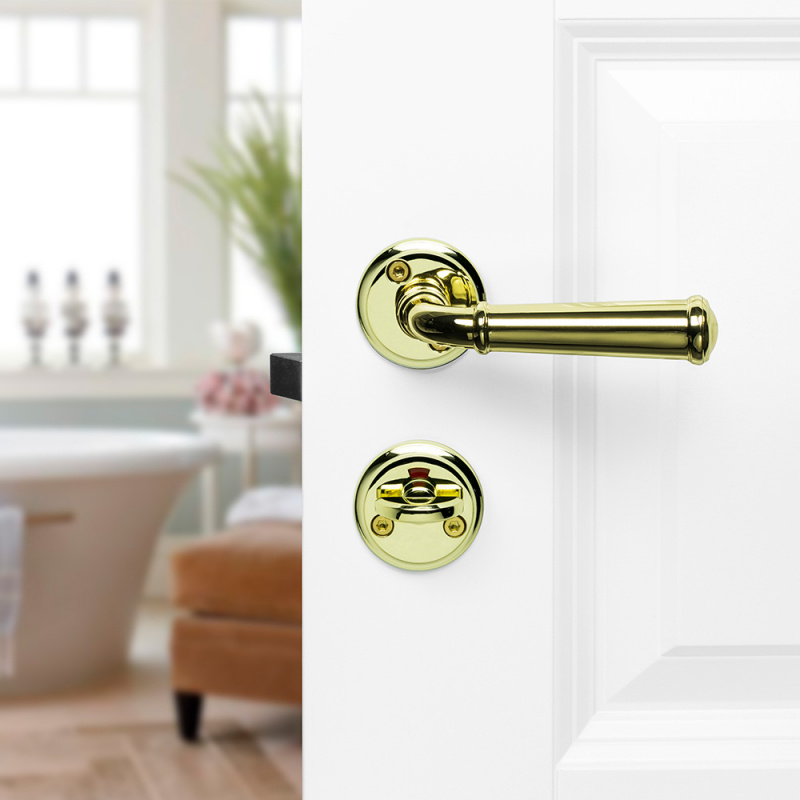

Toilet Fitting Classic is available in four different designs - chrome, tin, matt brushed chrome and polished brass. A handsome toilet fitting that fits into many different environments and styles.

Door thickness 37-44 mm. For greater door thickness, use a rowing stick and cut to the required length, up to 70 mm.

Fits lock case 2014 or lock cases with the same hole configuration. If you are unsure about which lock you have, please consult a professional.

Find retailer The product can be found at our retailers.
  • Specifications
  • Article depth: 7,5 mm
    Article diameter: 49 mm
    Article length: 49 mm
    Article width: 49 mm
    C/C-dimensions: 27 mm
    Measurements of the foot: 49 mm
  • Care instructions
  • Assembly and Installation
  •
    Installation of Toilet Thumb Turn



    1. Place the spindle in the lock. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.

    2. Place both parts of the bathroom lock against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.

    3. Use the included screws and sleeves to tighten the two parts of the bathroom lock with an Allen key.

  • Material and Finish
  • Documentation
  • Installation manual
  • Product sheet
Available varieties:
Toilet thumb turn - Classic - Brushed Chrome/bilder/artiklar/liten/750071-41_S.jpg?m=1649762725
Toilet thumb turn Classic - Polished Chrome/bilder/artiklar/liten/750011-41_S.jpg?m=1649757703
Toilet thumb turn Classic - Tin/bilder/artiklar/liten/750061-41_S.jpg?m=1649762250
