Door handle Riff - Matt black

751020-41

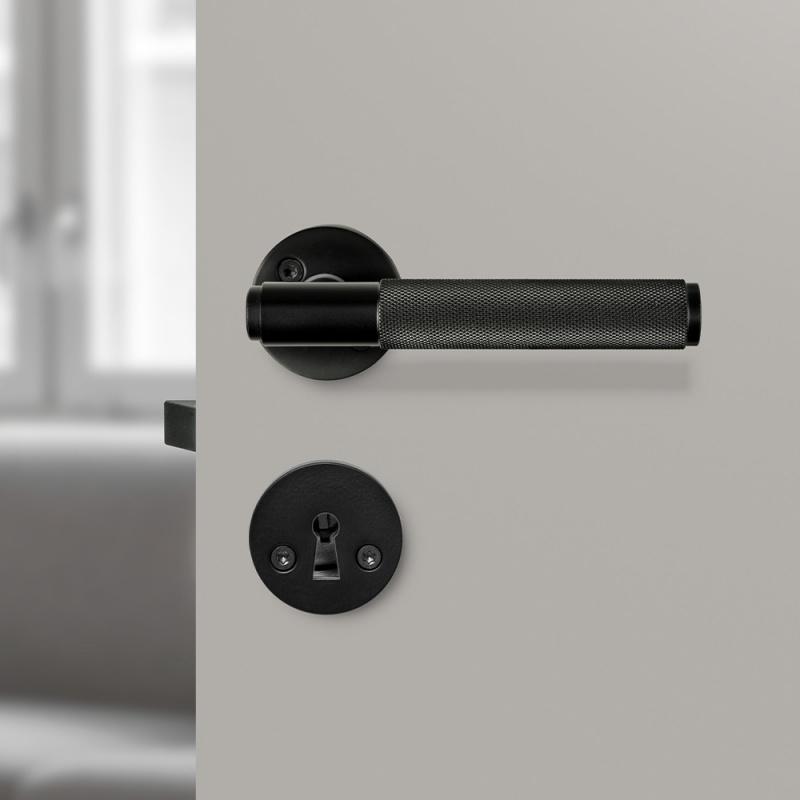

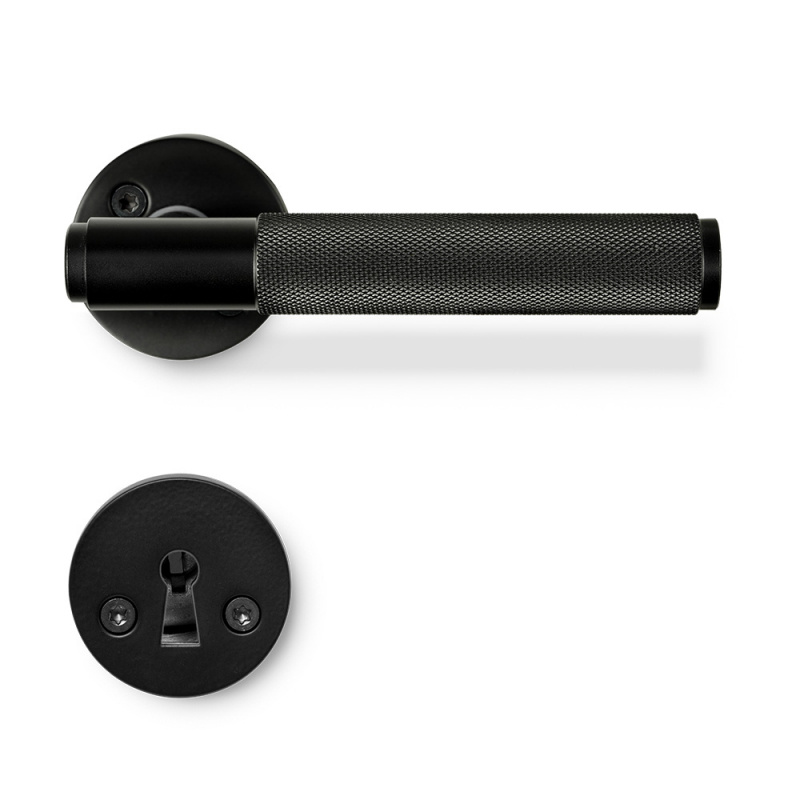

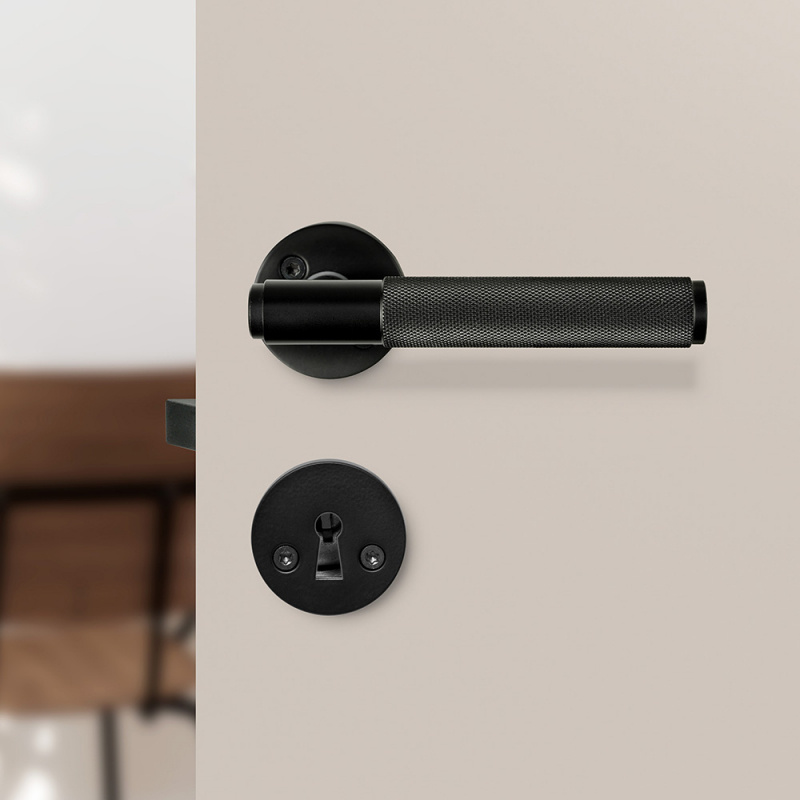

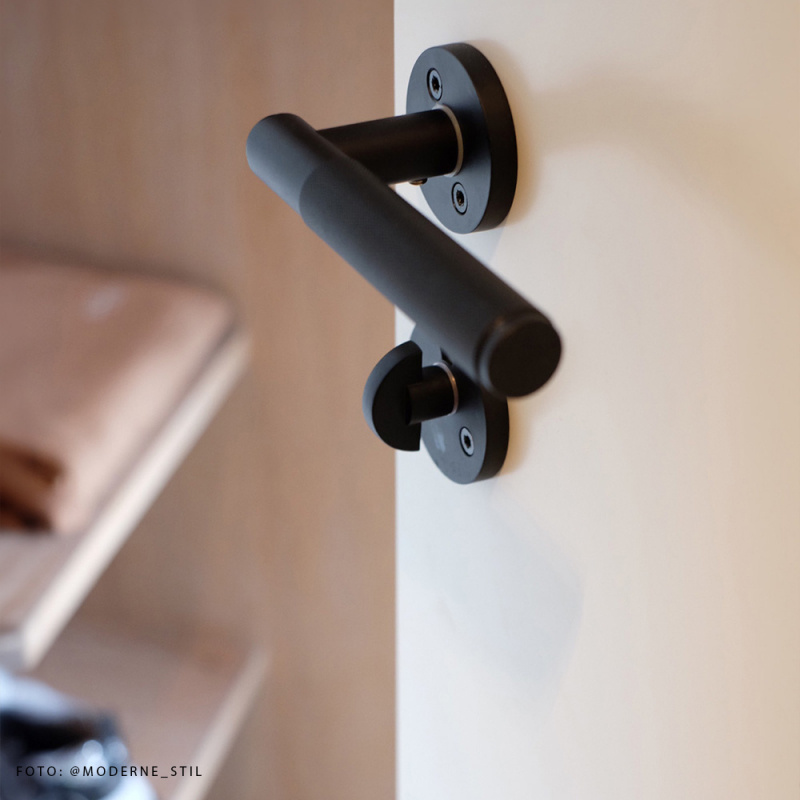

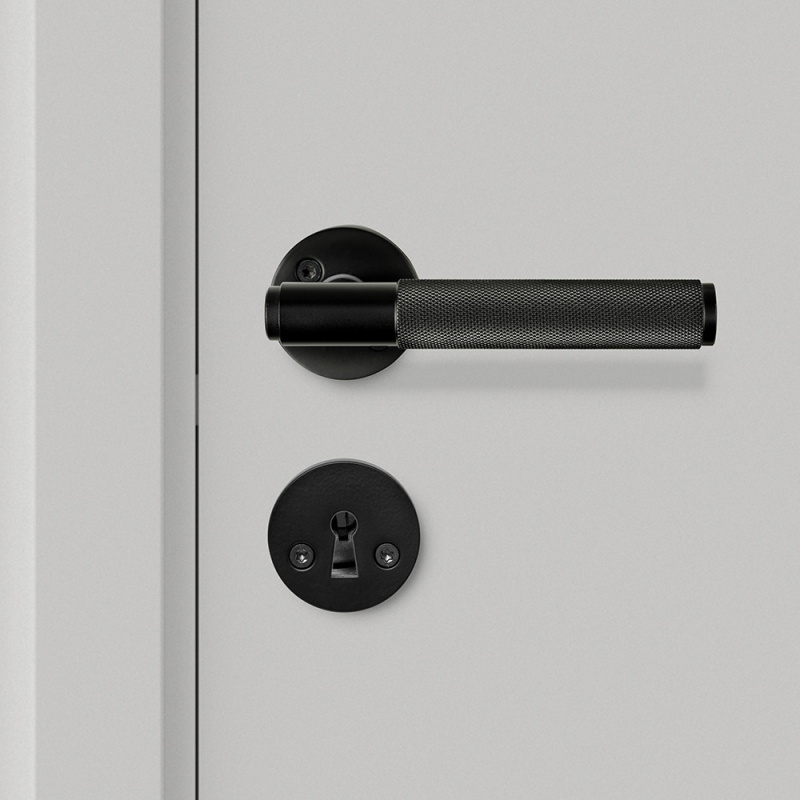

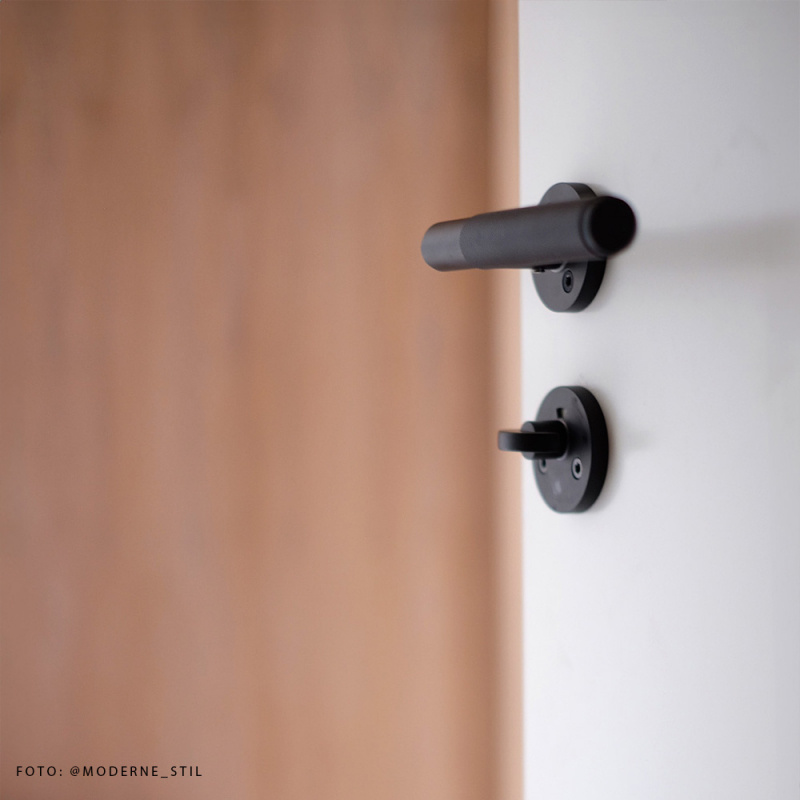

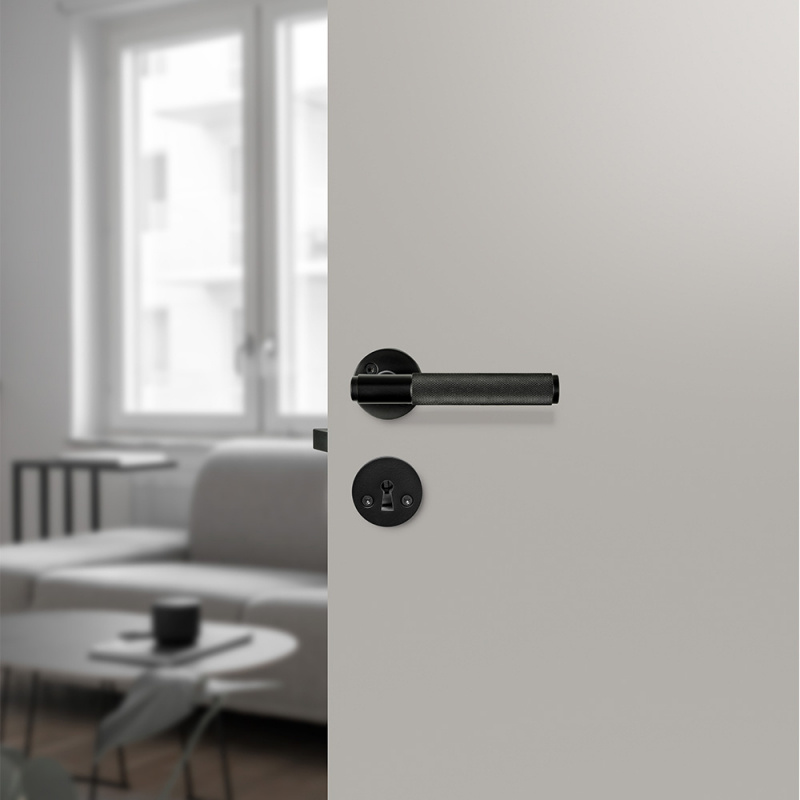

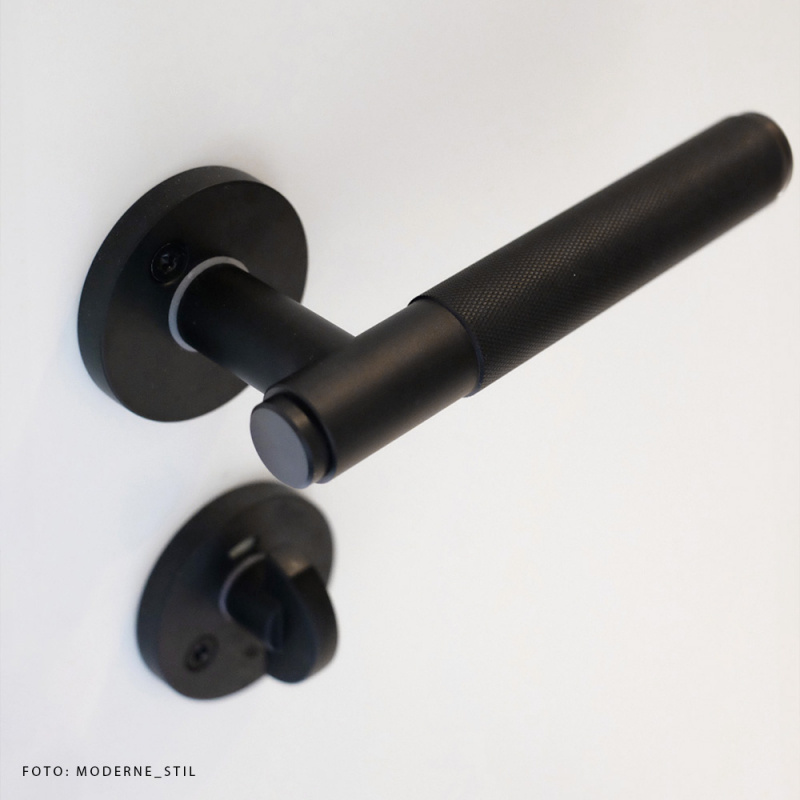

The door handle Riff with a lightly grooved surface and a stripped-down, elegant design fits perfectly in most homes. Riff is available in a matte black finish, and there is also a matching toilet knob in the series - Form. To create a well-thought-out unity, there are also handles and knobs from the same series that fit perfectly together.

The door handle and keyplate fit to doors that are 35–60 mm deep.

Specifications
Article depth: 60 mm

Article length: 140 mm

Article width: 50 mm

C/C-dimensions: 30 mm
Care instructions
Assembly and Installation
Installation of door handle

1. To ensure the best fit, it is important that the spindle is centered in the door during installation.
2. Place one half of the handle on the spindle. Tighten the set screw so that the tip penetrates the spindle.
3. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
4. Place the other part of the handle on the spindle. Ensure that the octagonal part of the sleeves fits correctly into the octagonal holes.
5. Use the included screws and sleeves to tighten the two handle parts together with an Allen key.
6. Tighten the set screw with an Allen key until the tip penetrates the spindle.

Installation of key escutcheon

1. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
2. Place the rosettes tightly against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.
3. Use the included screws and sleeves to attach the key plates with an Allen key.

See the full installation instructions here.
Link to assembly instructions »
