Door Stop Helix Stripe - Antique Bronze

753111-41

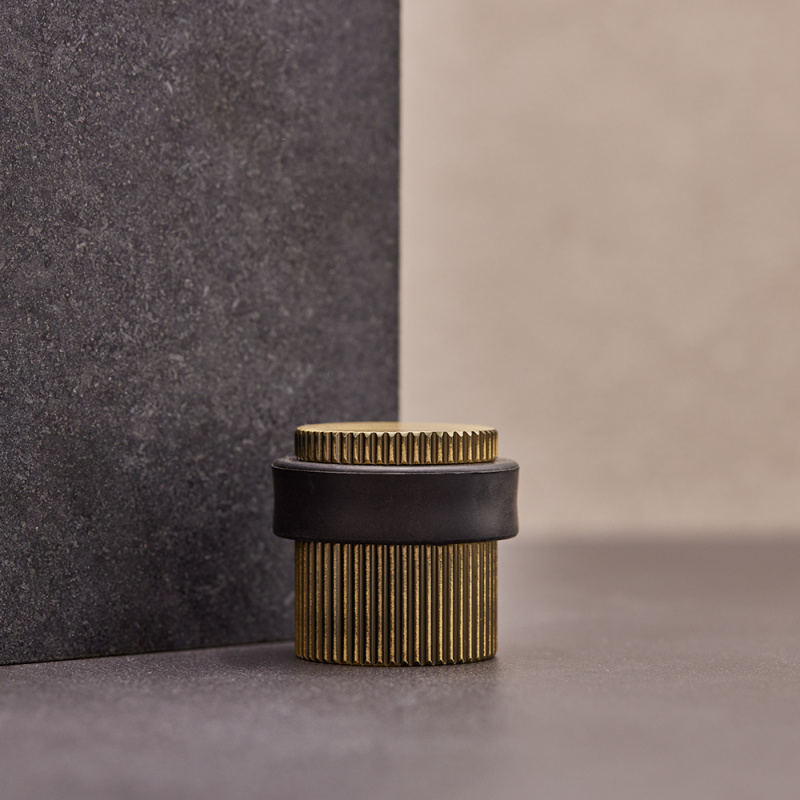

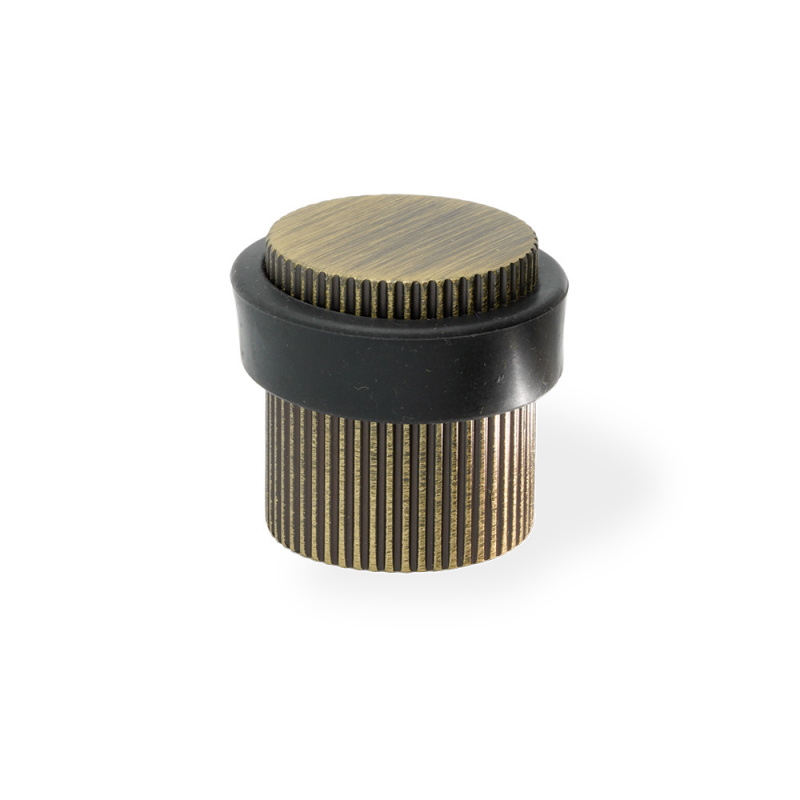

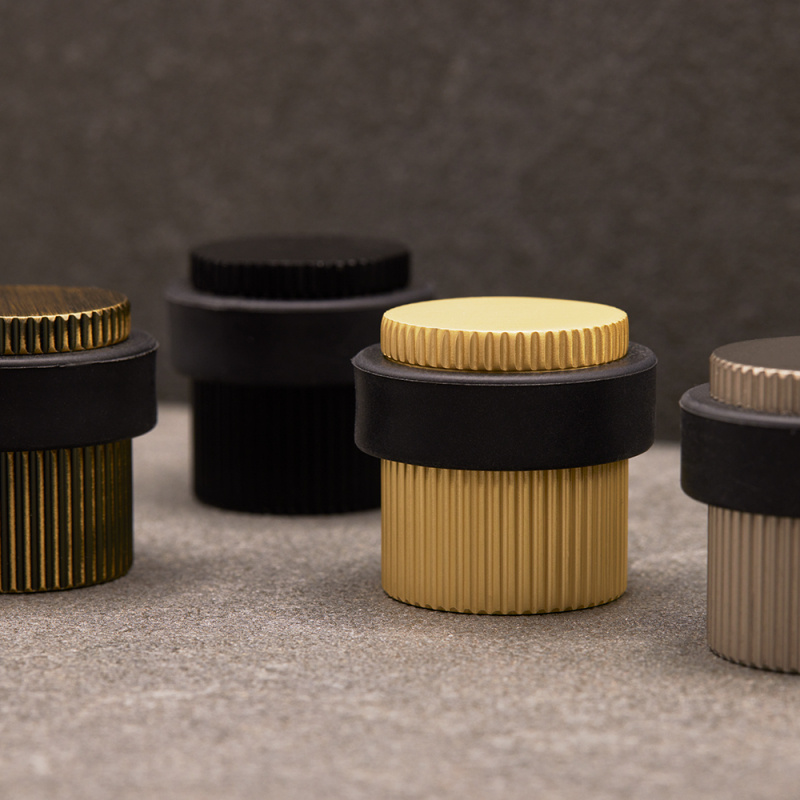

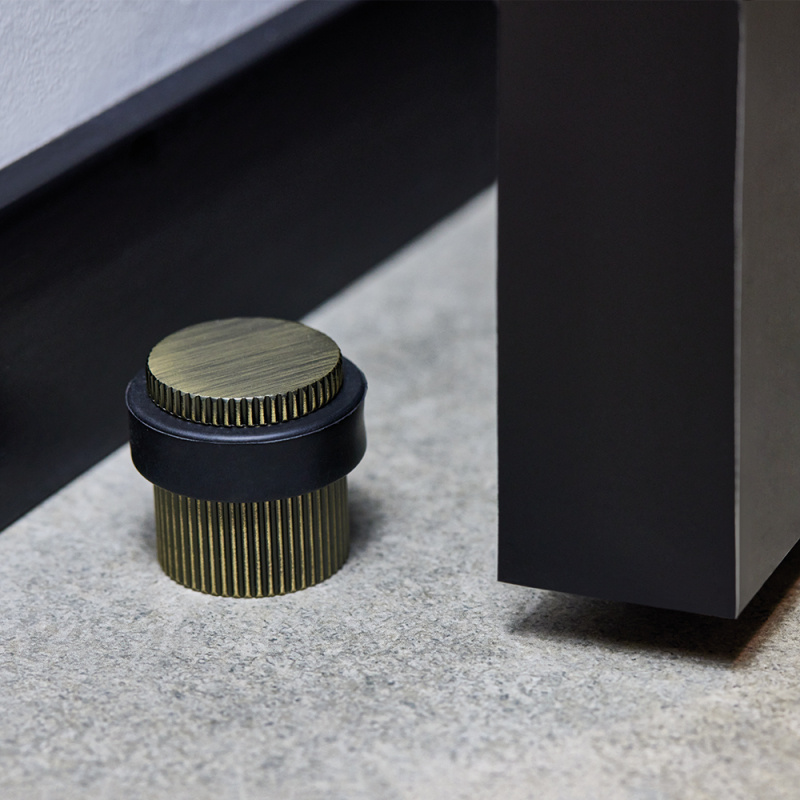

Helix Stripe door stop is an elegant door stop that has a ribbed surface and a rubber stripe that dampens and protects the door. Available in different designs and fits well in all rooms and environments. Feel free to combine with other products in the Helix Stripe series.

Comes with a 4x45mm countersunk wood screw. The screw protrudes 40mm from the mounting part.

Specifications
Article diameter: 38/32,5 mm

Article height: 36 mm

Measurements of the foot: 32,5 mm
Care instructions
Assembly and Installation
Installation of wall-mounted door stop

1. Place the lower part of the door stop on the wall where you want to install it.
2. Easily mark the drilling point by making a mark through the screw hole.
3. Prepare the installation by drilling a hole and inserting a plug suitable for your wall type (e.g., concrete, drywall, brick).
4. Secure the door stop to the wall using the screws and threads.

Tip! Always use screws and plugs optimized for your specific wall type to ensure a stable and secure installation. Make sure the door stop is in the correct position before fully tightening the screws.

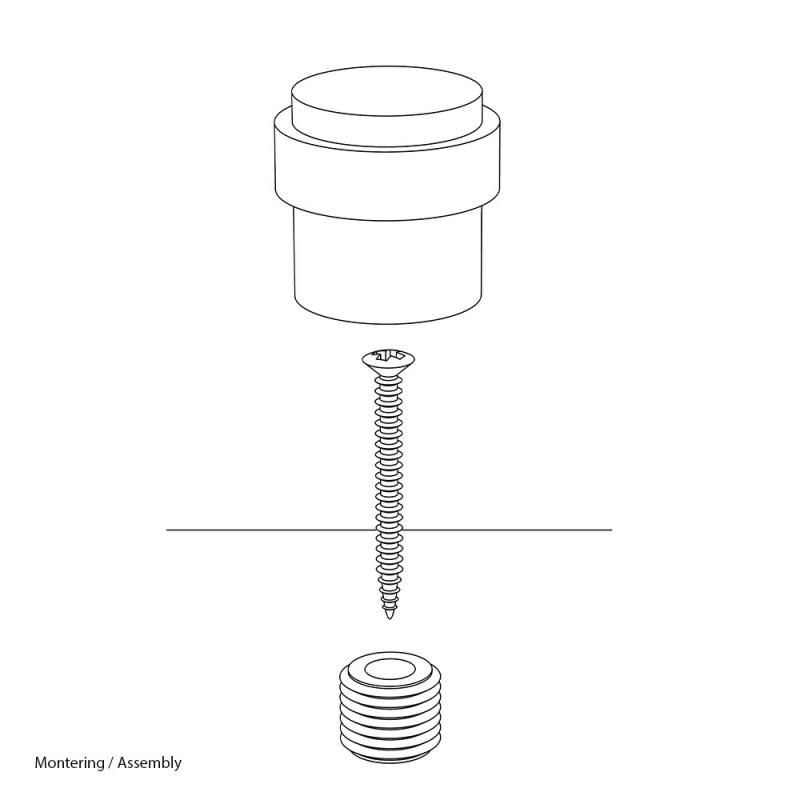

Installation of floor-mounted door stop

Install with the included mounting kit.

1. Place the door stop in the desired position on the floor.
2. Use the included countersunk screw (4x45mm).
3. Screw the screw into the floor surface.
Material and Finish
Documentation
Installation manual
Product sheet
