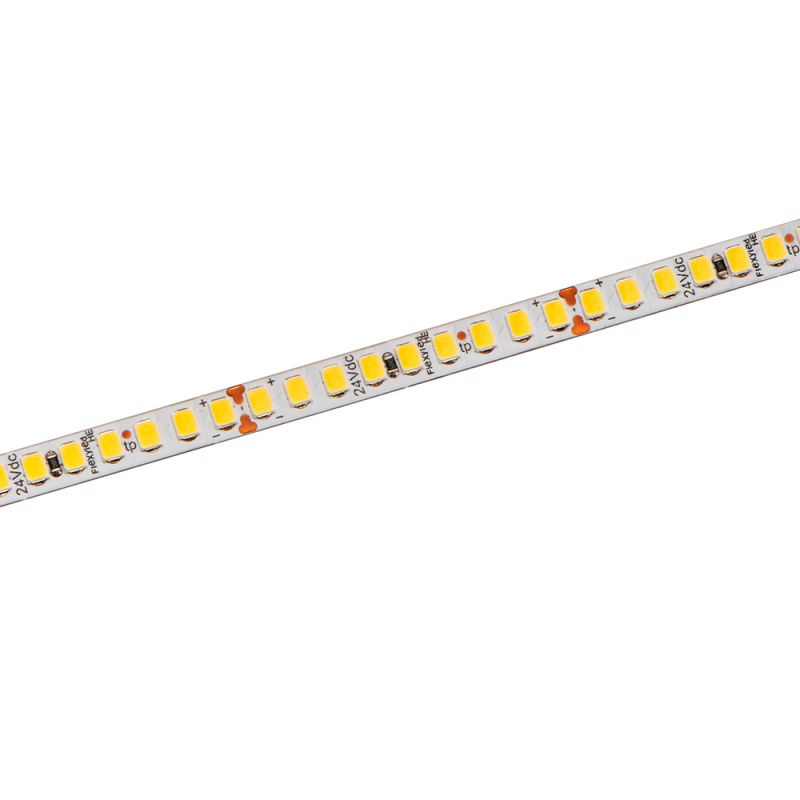

LED-stripe Flexyled SHEP6B EVO
LED-stripe Flexyled SHEP6B EVO

LED-stripe Flexyled SHEP6B EVO

flexyled-shep6b-evo
Flexyled SHEP6B EVO is an energy-efficient, smooth, and flexible LED strip. With a dimming capacity and a density of 216 LED/m, it guarantees optimal brightness and provides an even and powerful light distribution. The LED strip delivers a light intensity equivalent to a 10W/m LED strip, but with an efficiency of only 5.6W/m. This means you achieve the same brightness with half the energy consumption.

Developed on a 6 mm wide linear flexible module, it fits perfectly into several of Beslag Design's LED profiles. Divisible into modules of 41.66 mm (6 LED) and comes with a self-adhesive base so you can smoothly attach the LED strip to the LED profile.

The LED strip Flexyled SHEP6B EVO is available in 10 m long rolls without a connection cable, compatible with the CH6 connection system. Also available in 2000mm with a connection cable.

Flexyled SHEP6B EVO is compatible with Nexus and other profiles adapted for 6mm strips.





Qty:
Find retailer The product can be found at our retailers.
  • Specifications

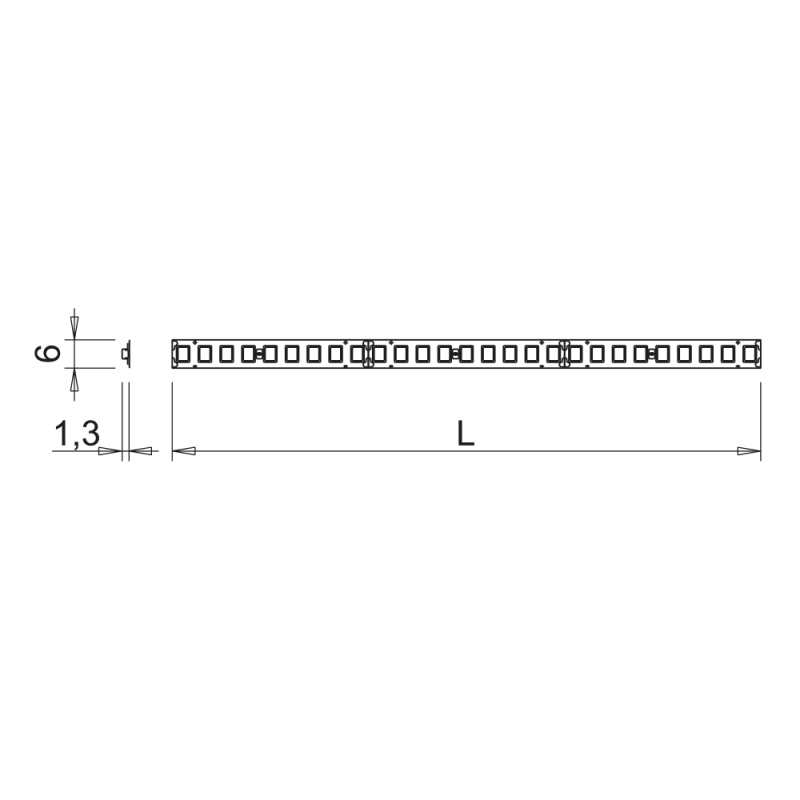

  • Article depth: 1,3 mm
    Article height: 1,3 mm
    Article length: 10000 mm , 2000 mm
    Article width: 6 mm
    Brightness (at 500mm): 660 lux
    Color rendering (CRI): Ra85 CRI
    Color Temp (K): 2700 K , 3000 K
    Effect (W): 11,2 W , 56 W
    IP-class: IP-class 20
    Light flux (lm): 190 lm
    Voltage (V): 24
  • Product sheet

Campaign

Campaign:
Quantity:
0
Campaign starts:
Campaign stops:

Accessories we recommend

Driver Triac Dim - 24V/bilder/artiklar/liten/drivdon-triac-dim_S.jpg?m=1645619769

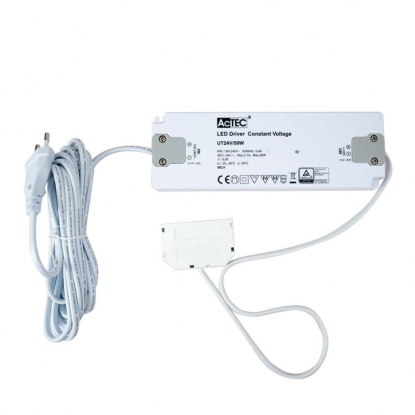

Driver UltraThin - 24V/bilder/artiklar/liten/drivdon-ultrathin-24v_S.jpg?m=1644846241

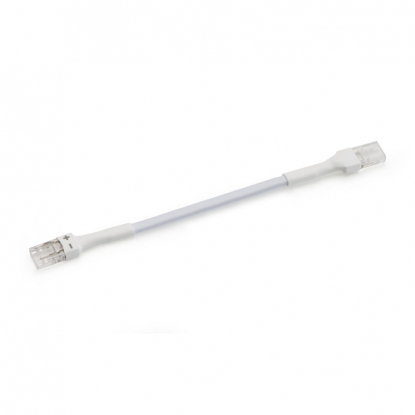

Extension cable CH6 - 100mm/bilder/artiklar/liten/973911_S.jpg?m=1693400399
