Multi-sensor control box Clud
Multi-sensor control box Clud
Multi-sensor control box Clud
Multi-sensor control box Clud

Multi-sensor control box Clud

973905

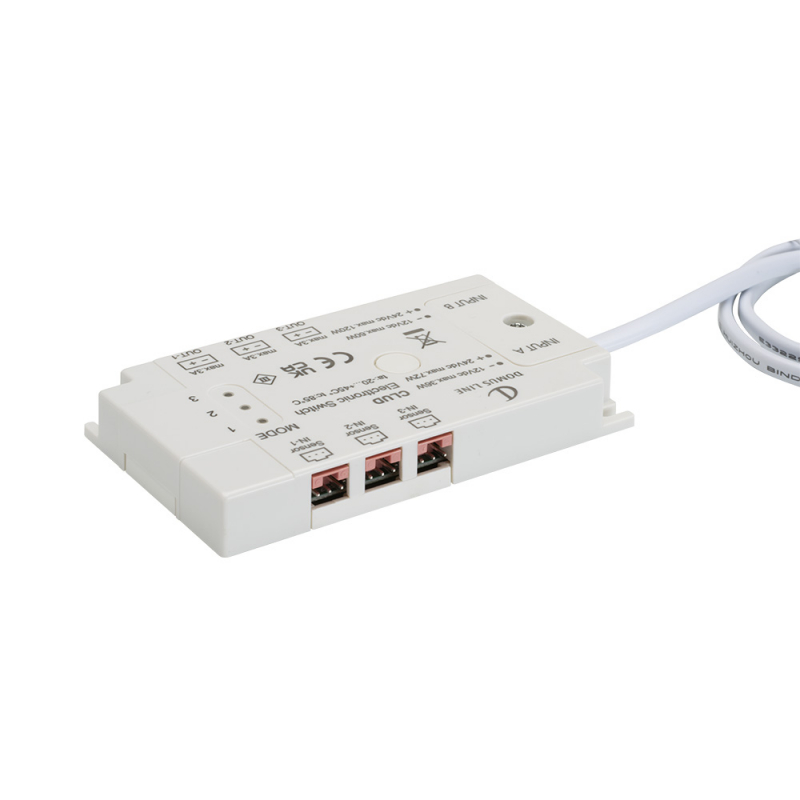

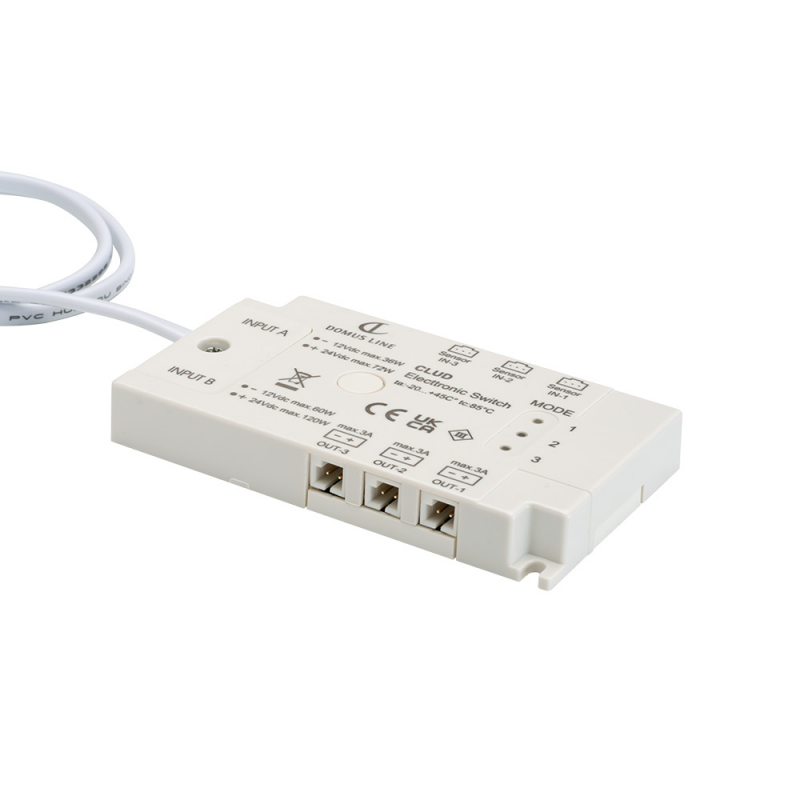

Multi-sensor Clud is a flexible and powerful control module used to manage lighting via sensors and is ideal for solutions where the light needs to respond automatically to movement or opening, such as when a lamp should turn on when a cabinet is opened. The module is equipped with dual inputs and three Micro24 outputs supporting a total load of up to 72 W, making it well suited for multiple luminaires within the same installation. Multi-sensor Clud features three sensor ports and can be used together with Sensor IR-1 for simple and reliable operation.

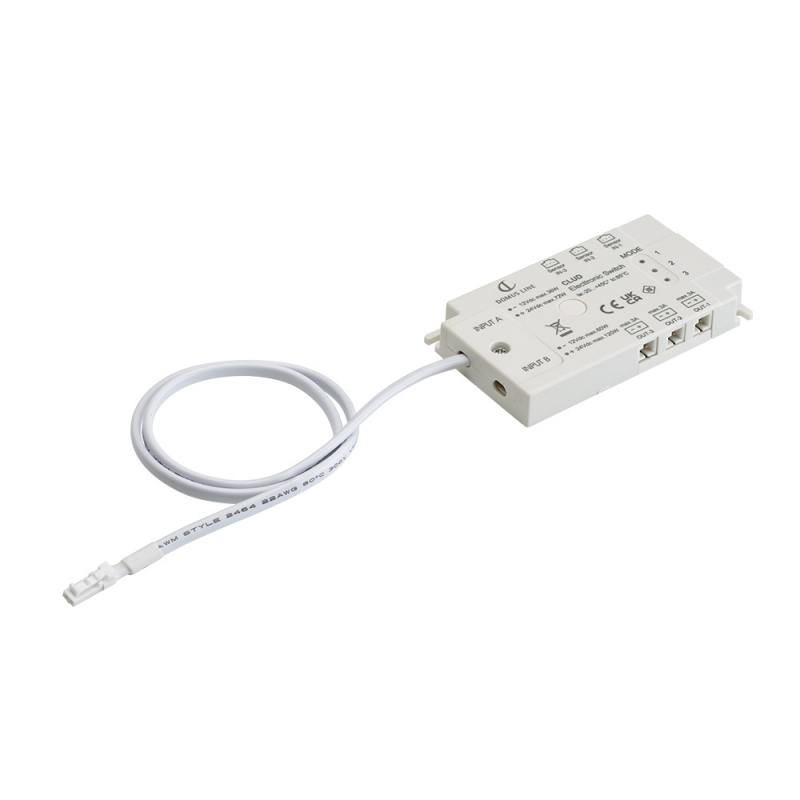

It is supplied with a 500 mm power cable and a Micro24 male connector, and supports a total load of 72 W. The product can be mounted both surface-mounted and recessed, providing great installation flexibility and making it easy to adapt to different environments and requirements.


Find retailer The product can be found at our retailers.

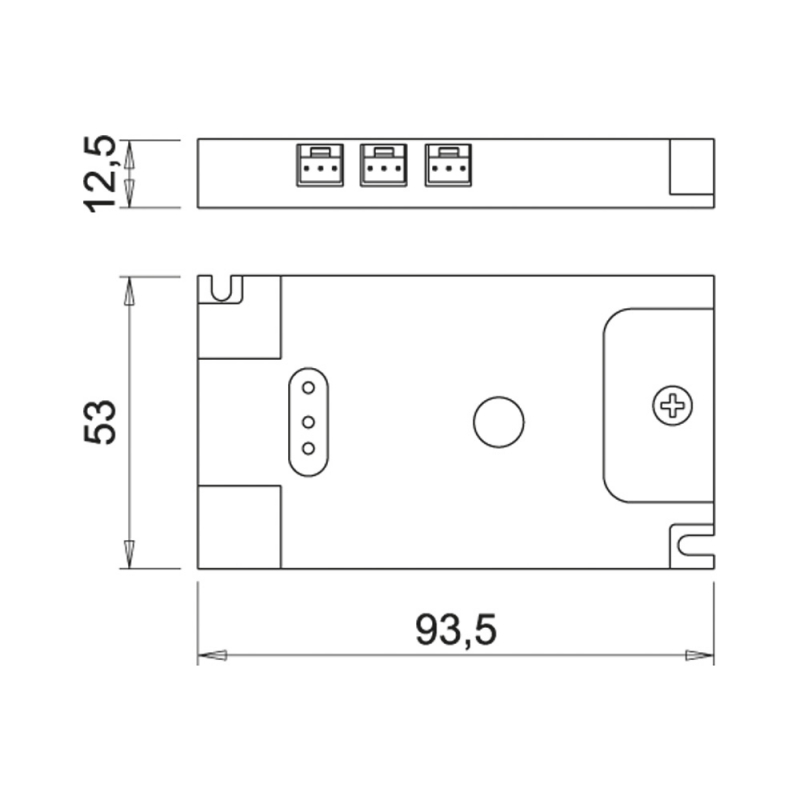

  • Specifications
  • Article depth: 12,5 mm
    Article length: 94 mm
    Article width: 53 mm
  • Care instructions
  • Assembly and Installation
  • Material and Finish
  • Documentation
  • Installation manual
  • Product sheet
