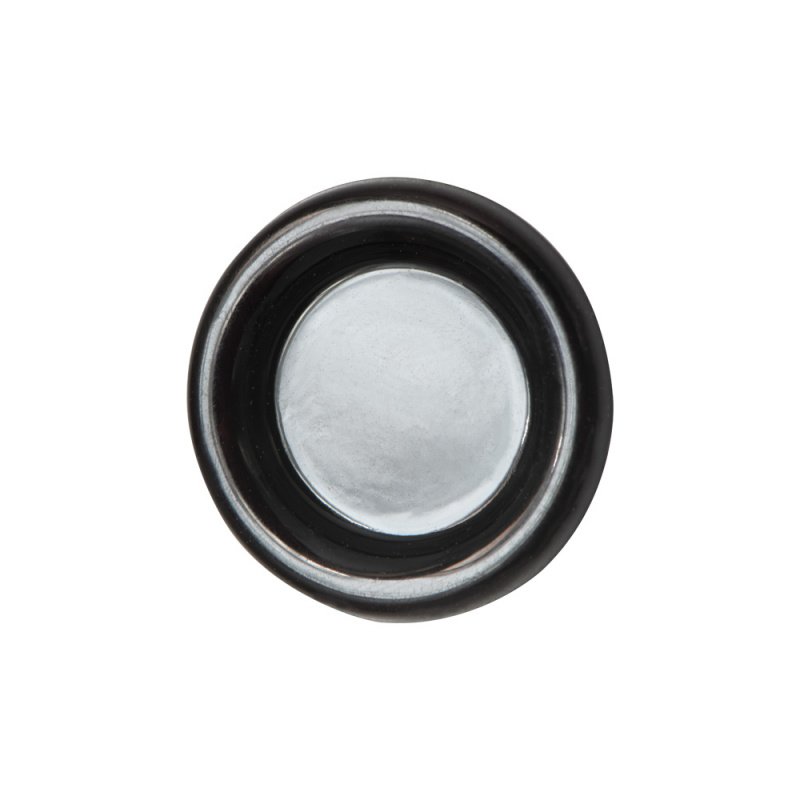

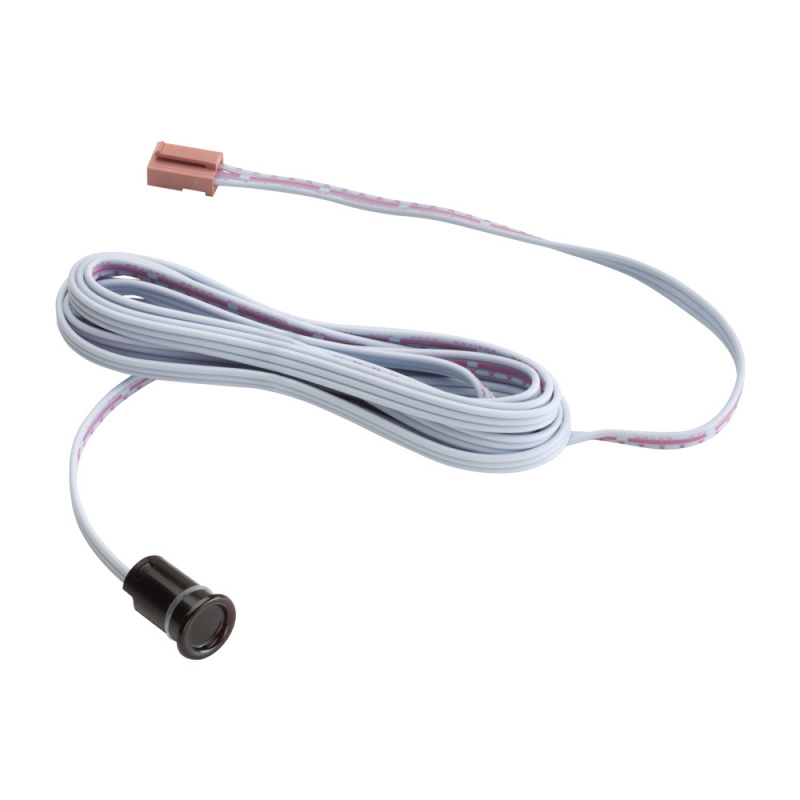

Sensor IR-1
Sensor IR-1
Sensor IR-1

Sensor IR-1

974264

Sensor IR-1 is an infrared door sensor used together with the Clud control module to automatically switch connected luminaires on and off. The sensor activates the lighting when a door is opened and turns it off when the door is closed, making it ideal for cabinets, wardrobes, and other spaces where lighting should be controlled discreetly and automatically. Switching on and off is performed with a smooth soft on and soft off function with a duration of up to 2.5 seconds, providing comfortable lighting without sudden transitions. The product is easy to integrate into systems with Clud and contributes to increased comfort and energy-efficient lighting control.


Find retailer The product can be found at our retailers.
  • Specifications

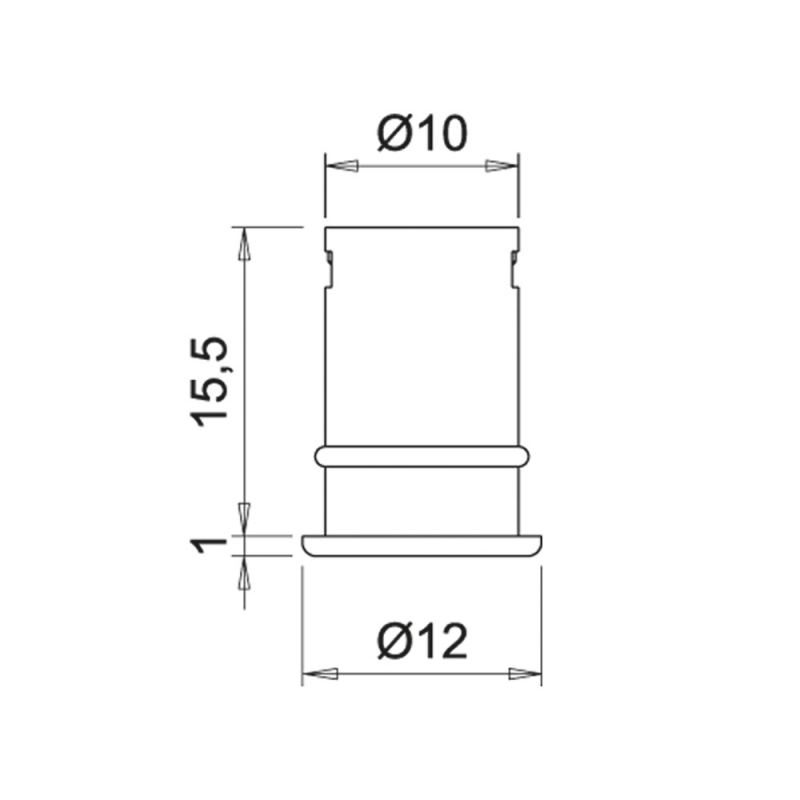

  • Article depth: 15,5 mm
    Article diameter: 12 mm
    Article length: 12 mm
    Article width: 12 mm
    Connection type: Trio Male
    Inset depth: 15,5 mm
    Recess diameter: 10 mm
  • Care instructions
  • Assembly and Installation
  • Material and Finish
  • Documentation
  • Installation manual
  • Product sheet
