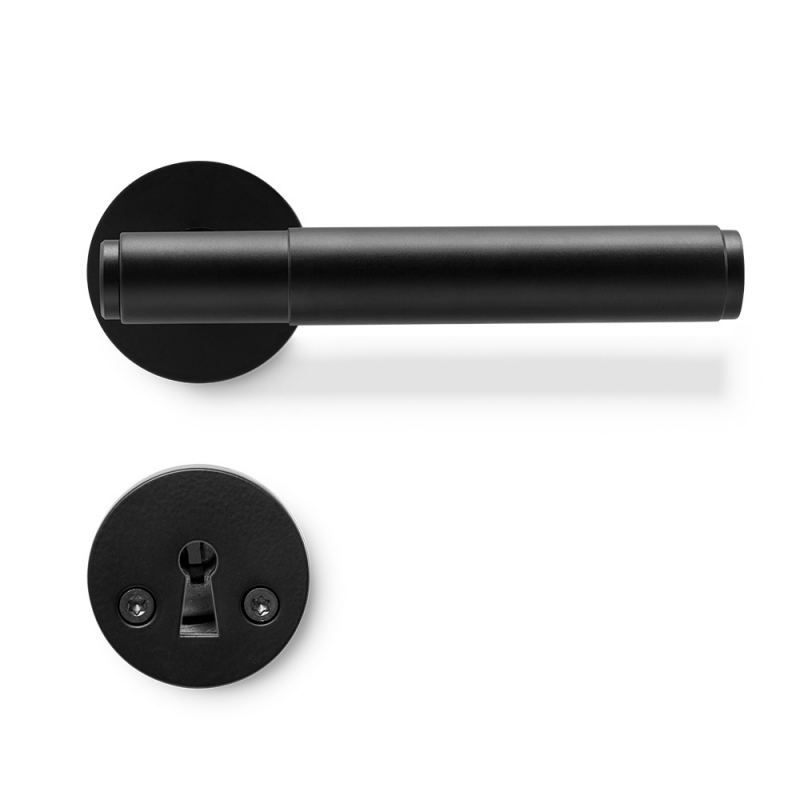

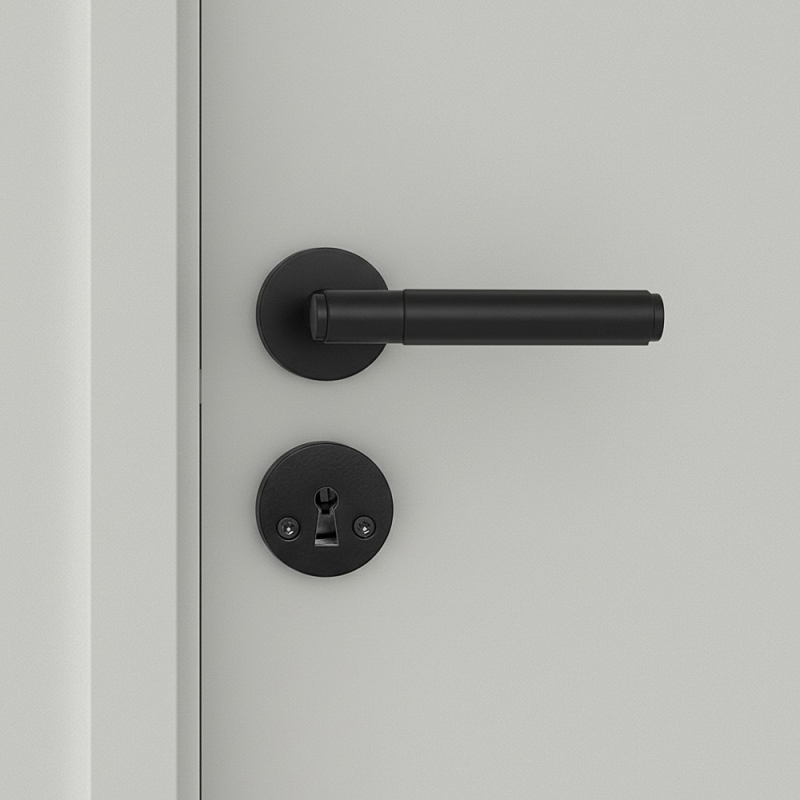

Door handle Riff Plain - Matte black

751021-41

The Riff Plain door handle combines sleek elegance with a minimalist design, making it the perfect choice for both modern and classic homes. Its smooth surface creates a sophisticated impression and provides a pleasant feel with every touch. Riff Plain is available in an exclusive matte black finish and also comes with a knurled surface for a more industrial look. For a cohesive style throughout the home, the door handle can be paired with the matching toilet turn in the Form series. With its well-thought-out design and high-quality materials, Riff Plain is more than just a door handle – it is a stylish detail that enhances the overall aesthetic of your home.

Specifications
Article depth: 60 mm

Article diameter: 50 mm

Article length: 140 mm

Article width: 50 mm

C/C-dimensions: 30 mm
Care instructions
Assembly and Installation
Installation of door handle

1. To ensure the best fit, it is important that the spindle is centered in the door during installation.
2. Place one half of the handle on the spindle. Tighten the set screw so that the tip penetrates the spindle.
3. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
4. Place the other part of the handle on the spindle. Ensure that the octagonal part of the sleeves fits correctly into the octagonal holes.
5. Use the included screws and sleeves to tighten the two handle parts together with an Allen key.
6. Tighten the set screw with an Allen key until the tip penetrates the spindle.

Installation of key escutcheon

1. Cut the screws to the appropriate length so that they go at least 5 mm into the sleeves when mounted. Consider the thickness of the door and the rosettes.
2. Place the rosettes tightly against the door. Start by positioning the sleeves so that the octagonal part fits correctly into the octagonal holes.
3. Use the included screws and sleeves to attach the key plates with an Allen key.

See the full installation instructions here.
Material and Finish
Documentation
Installation manual
Product sheet
