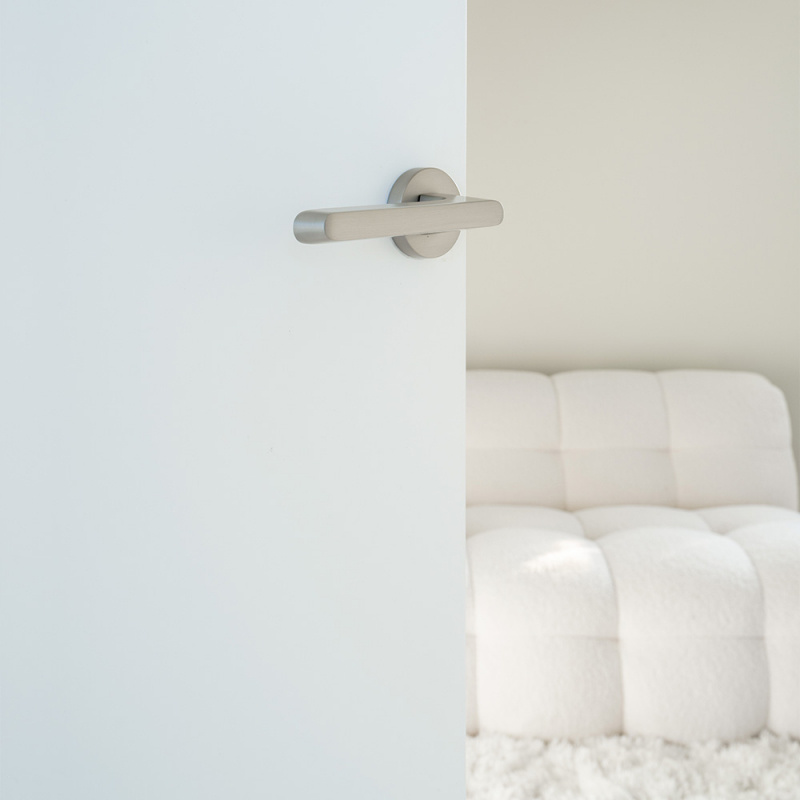

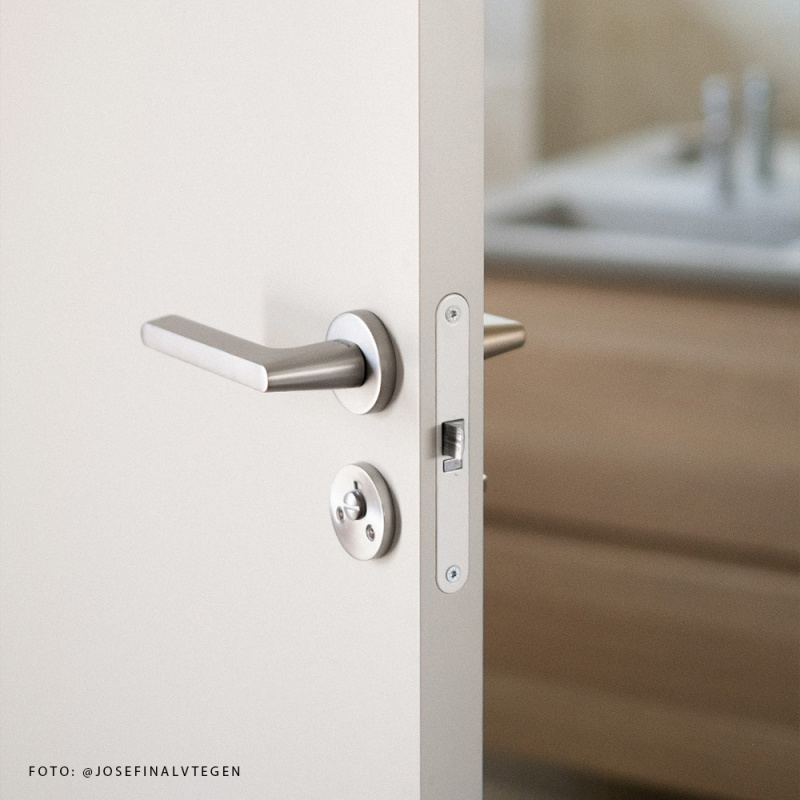

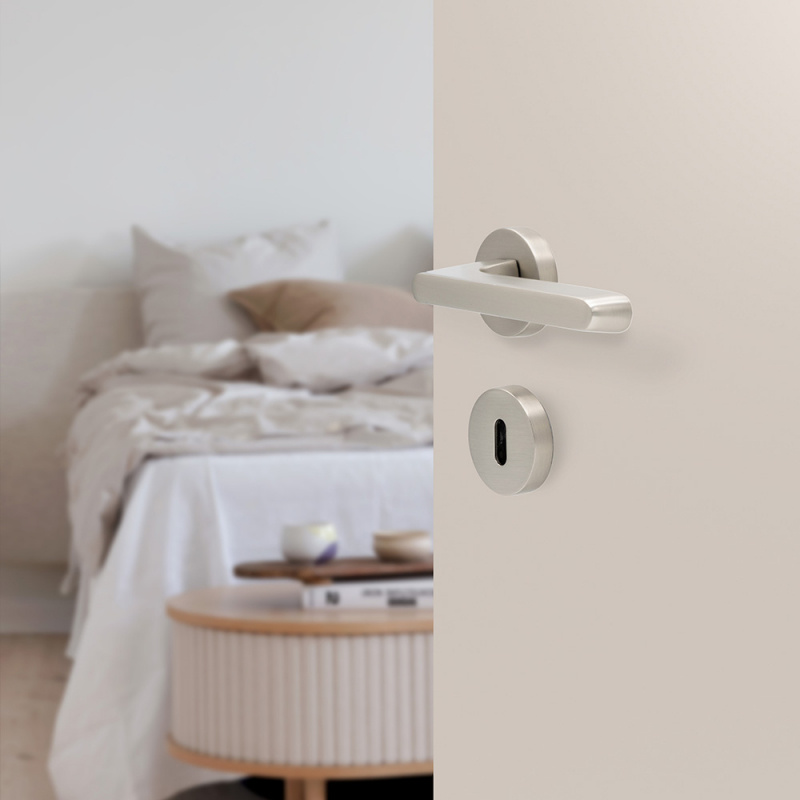

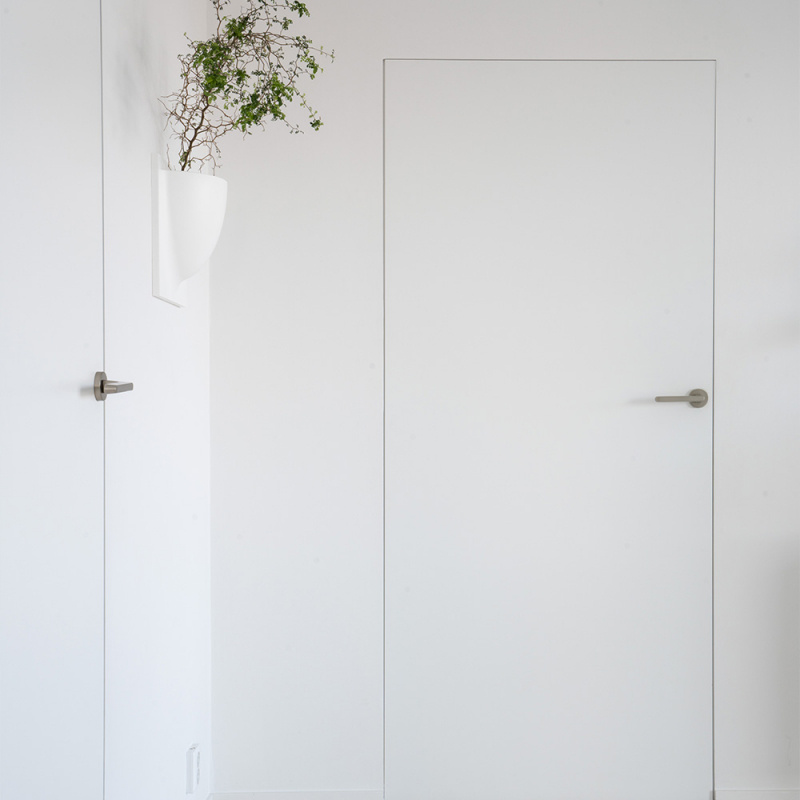

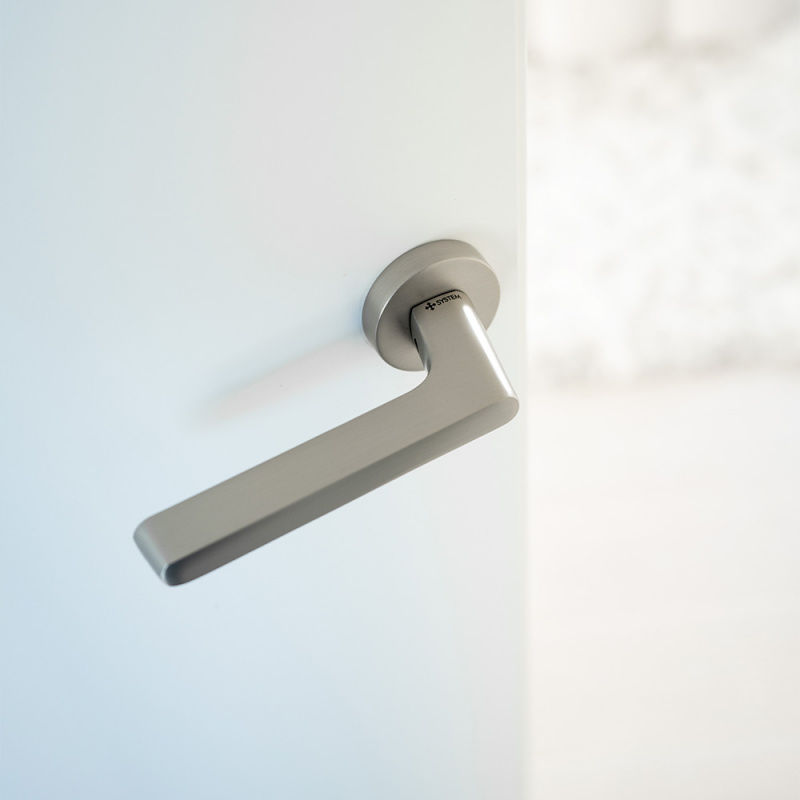

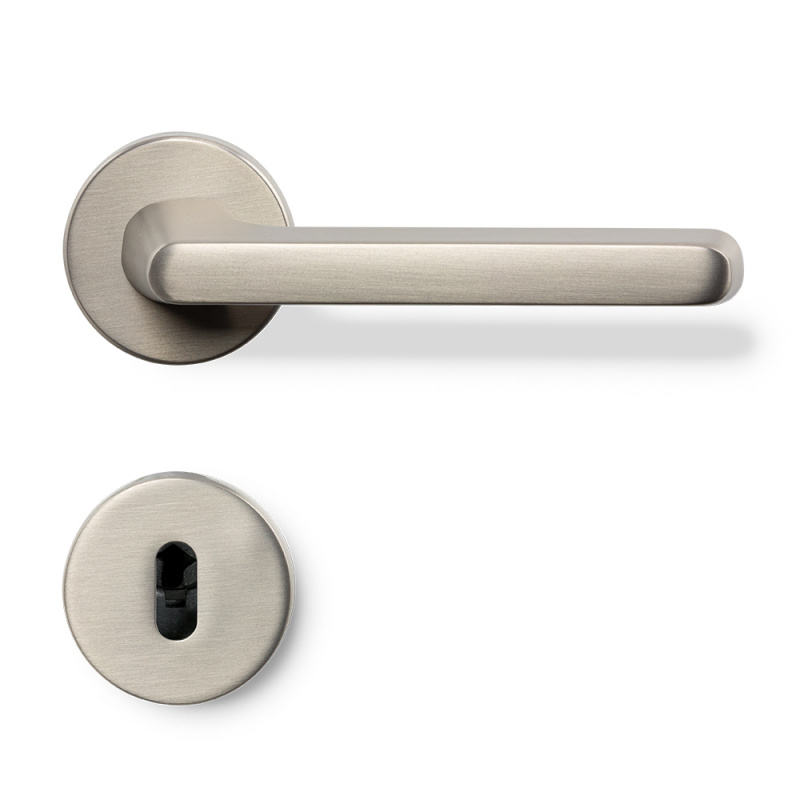

Door handle Tavira - Stainless steel look
dorrhandtag-tavira-rostfrModern resilient door handle with a soft comfortable grip
Tavira is a stylish handle with tight yet soft lines that give a gentle touch to the palm. Ideal for all doors indoors. The door handle has a resilient spring which means that the door handle always goes back to its basic position. Concealed screw fastening.
The handle is available in two different designs; black and stainless look. The door handle and keyhole fit to doors that are 35 - 48 mm deep.
Tavira is a stylish handle with tight yet soft lines that give a gentle touch to the palm. Ideal for all doors indoors. The door handle has a resilient spring which means that the door handle always goes back to its basic position. Concealed screw fastening.
The handle is available in two different designs; black and stainless look. The door handle and keyhole fit to doors that are 35 - 48 mm deep.
Choose between products that fit doors with modular locks or lock chests in Scandinavian or European standard

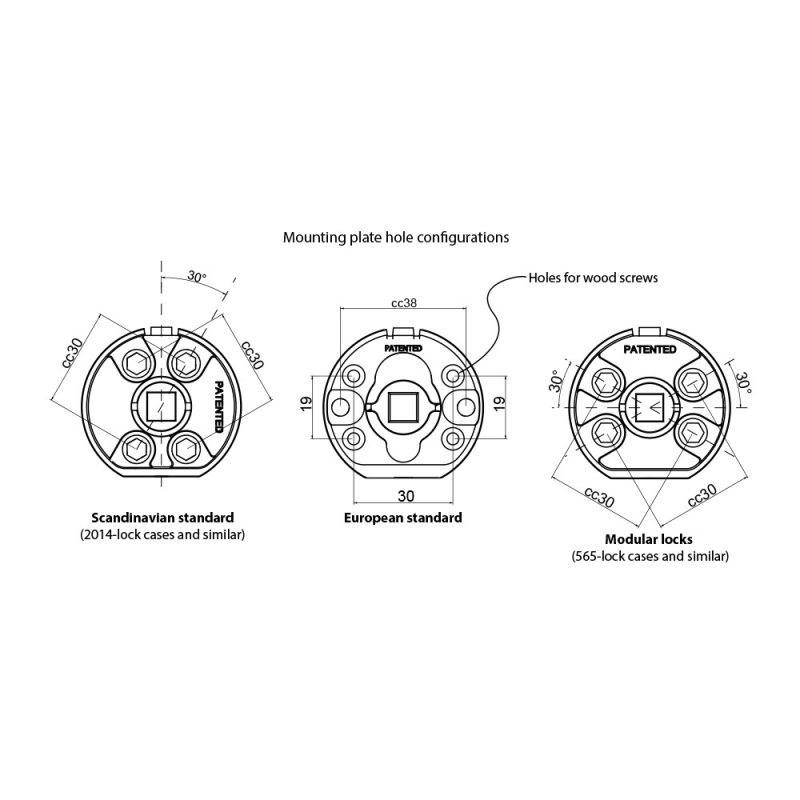

Door handles Tavira are available for doors with modular locks (lock housing 565 or similar) or lock chests in Scandinavian standard (lock chest 2014 or similar) and European standard (cc38mm).
Standard key plate and complete assembly kit are included.
See more under product information.
- Specifications
-
Article depth: 60 mm Article diameter: 52 mm Article length: 152 mm Article width: 52 mm Finish: Stainless steel , Stainless steel look - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
-
