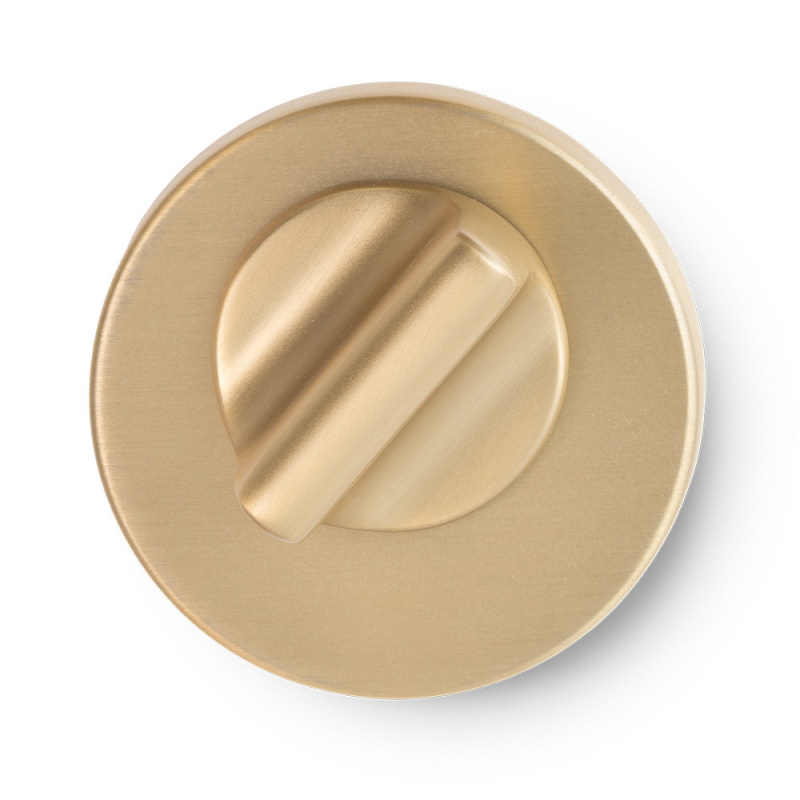

Toilet thumb turn R - Brushed gold

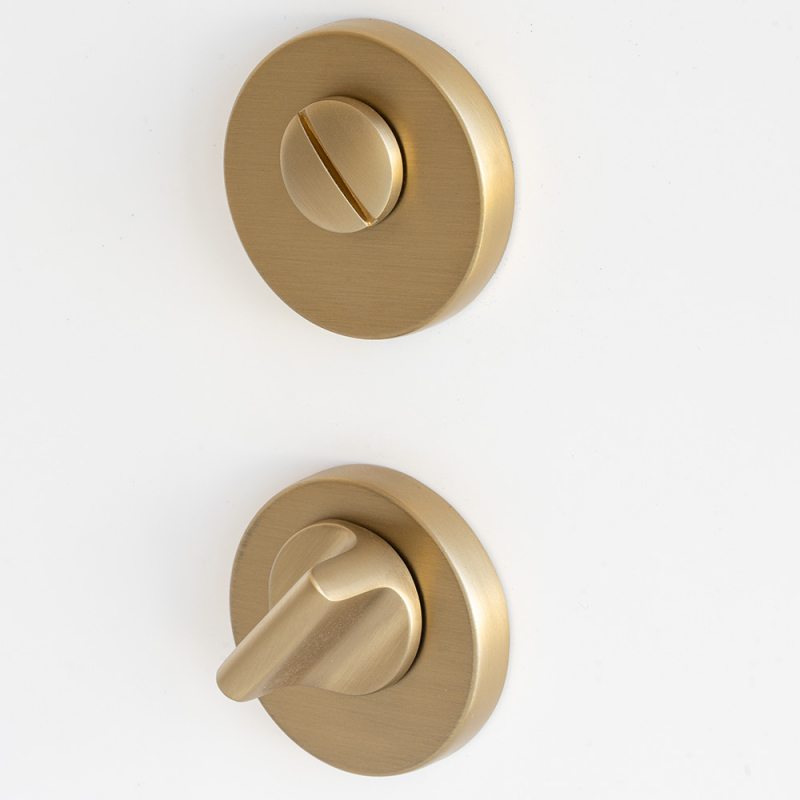

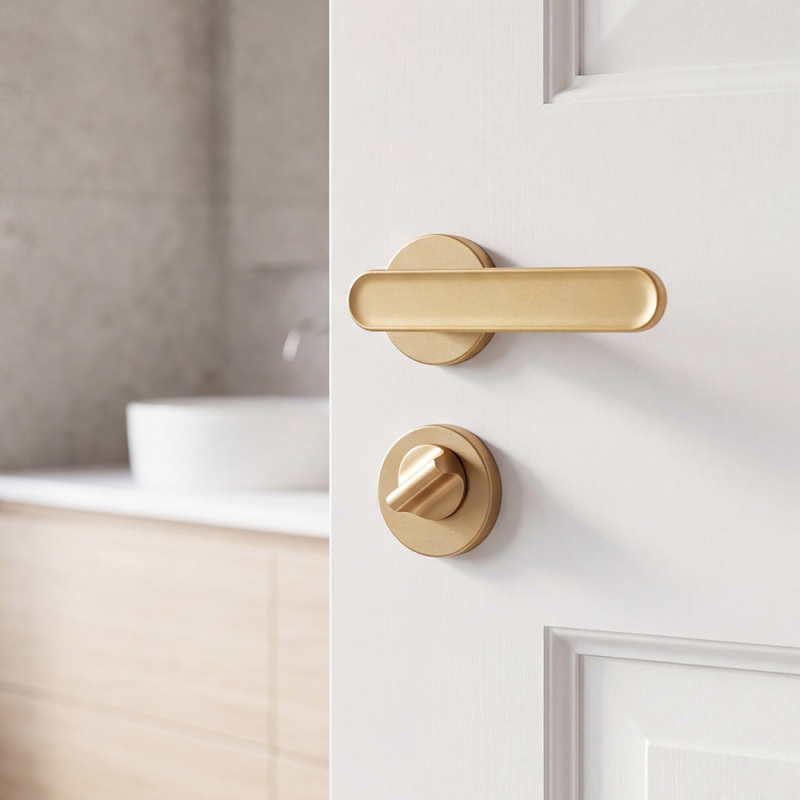

toavred-r-guldToilet thumbturn R is a stylish and easy-to-grip thumbturn with concealed screw mounting for a clean and refined look. In the brushed gold finish, the thumbturn has a warm, elegant appearance that adds a sophisticated detail to the door.
Available for Scandinavian standard (5x5 mm spindle) and European standard (8x8 mm spindle). Suitable for doors with a thickness of 40–47 mm. The spindle can be cut, for example with a hacksaw, to fit thinner doors.
Complete mounting kit included.
Available for Scandinavian standard (5x5 mm spindle) and European standard (8x8 mm spindle). Suitable for doors with a thickness of 40–47 mm. The spindle can be cut, for example with a hacksaw, to fit thinner doors.
Complete mounting kit included.
- Specifications
-
Article diameter: 51,5 mm Article length: 51,5 mm Article width: 51,5 mm - Care instructions
- Assembly and Installation
Installation of Toilet Thumb Turn
1. Fasten the mounting plates with the included screws and caps.
2. Center the square spindle in the lock.
3. Press the outer parts until they click into place on the top of the mounting plates.
4. Tighten the socket set screws using the included hex keys.
Installation of Toilet Thumb Turn Module Lock
1. Place the black plastic part in the lock and snap it into position.
2. Fasten the mounting plates with the included screws and caps.
3. Center the square spindle in the lock.
4. Press the outer parts until they click into place on the top of the mounting plates.
5. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
-
Product sheet »
