Toilet thumb turn R - Antique bronze
toavred-r-antikDecorative and easy-to-grip toilet thumb turn in several different designs with hidden screw mounting. Toilet thumb turn R matches perfectly with door handle Helix, Helix Stripe, Tavira and Sintra.

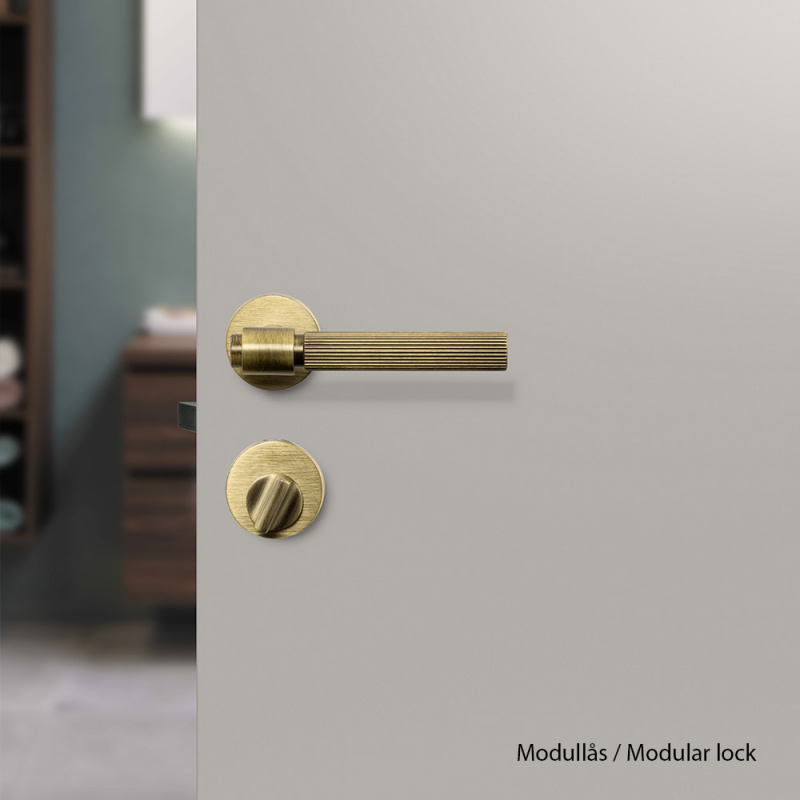

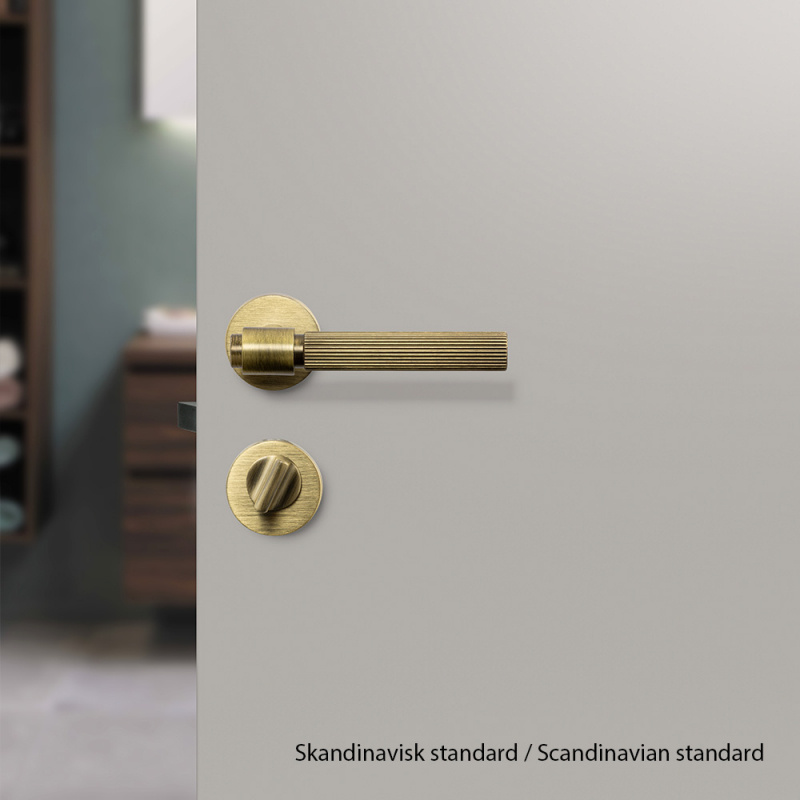

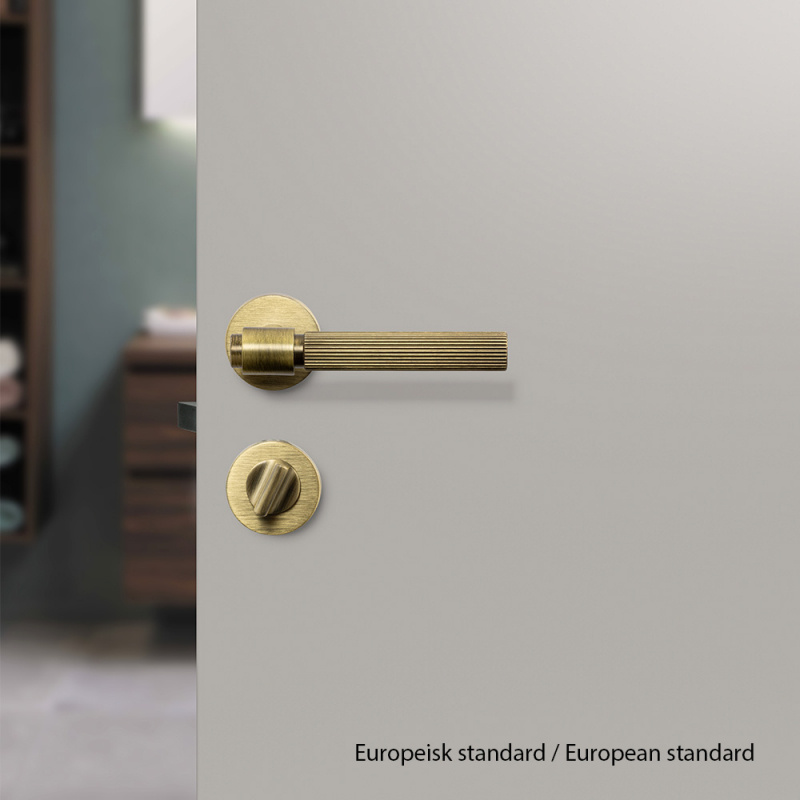

Available for Scandinavian standard (5x5 mm rowing stick), European standard (8x8 mm rowing stick) and for modular lock (5x5mm rowing stick + knob driver). Fits to doors that are 40-47 mm deep but can be cut, preferably with a hacksaw, to fit narrower doors.
Incl. complete assembly kit.
See other details under product information.
Available for Scandinavian standard (5x5 mm rowing stick), European standard (8x8 mm rowing stick) and for modular lock (5x5mm rowing stick + knob driver). Fits to doors that are 40-47 mm deep but can be cut, preferably with a hacksaw, to fit narrower doors.
Incl. complete assembly kit.
See other details under product information.
- Specifications
-
Article depth: 32 mm Article diameter: 52 mm C/C-dimensions: 27 mm Finish: Antique bronze - Care instructions
- Assembly and Installation
Installation of Toilet Thumb Turn
1. Fasten the mounting plates with the included screws and caps.
2. Center the square spindle in the lock.
3. Press the outer parts until they click into place on the top of the mounting plates.
4. Tighten the socket set screws using the included hex keys.
Installation of Toilet Thumb Turn Module Lock
1. Place the black plastic part in the lock and snap it into position.
2. Fasten the mounting plates with the included screws and caps.
3. Center the square spindle in the lock.
4. Press the outer parts until they click into place on the top of the mounting plates.
5. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
-
Product sheet »
