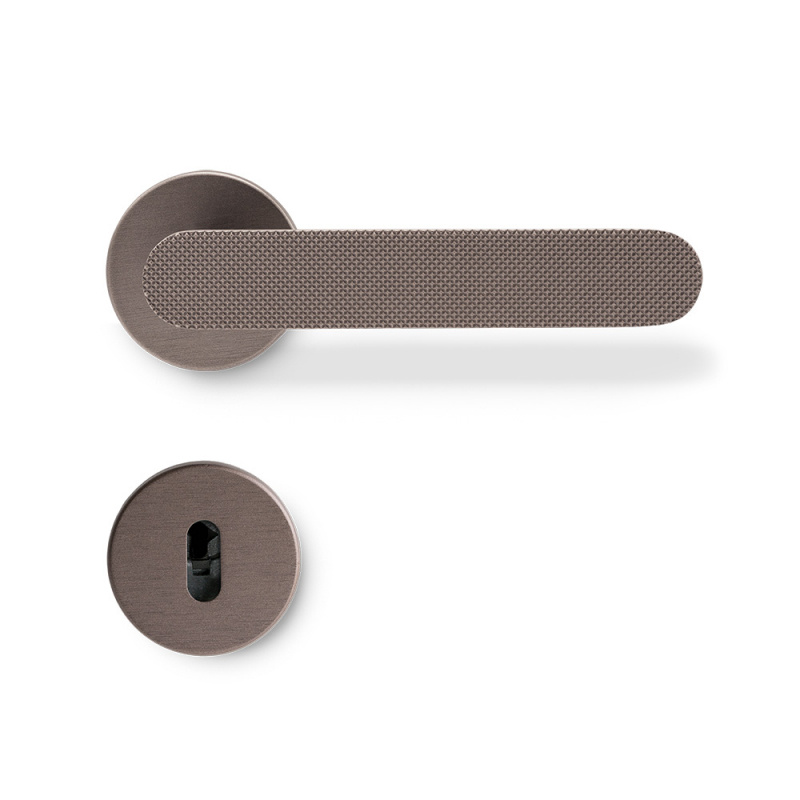

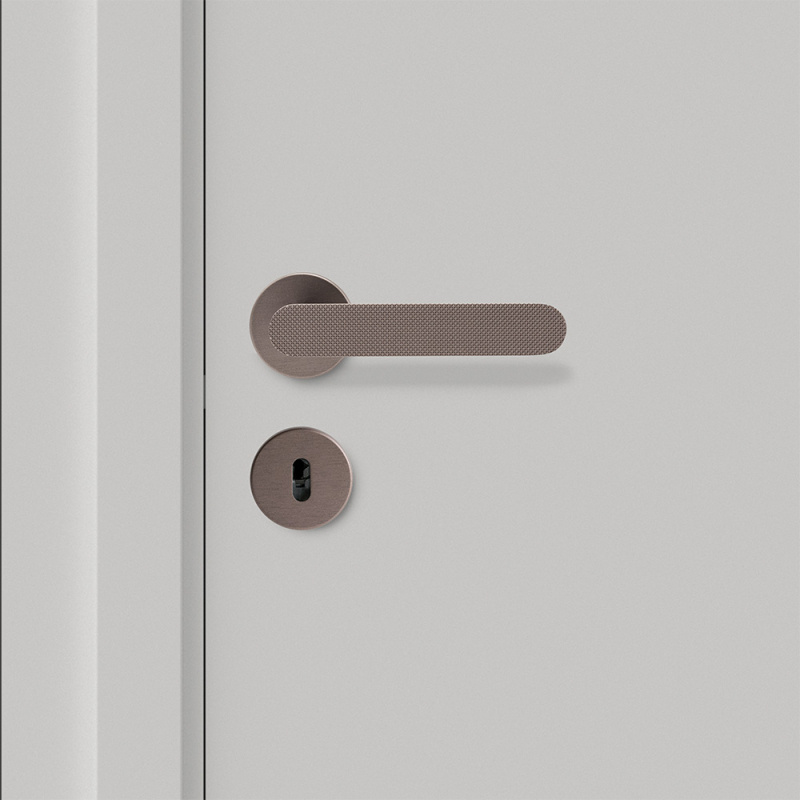

Door handle Vibe Grip - Dark bronze
vibe-grip-morkbronsThe Vibe Grip door handle in dark bronze features a knurled surface with a distinct texture that provides a comfortable and secure grip. It is equipped with a spring return function, ensuring it smoothly returns to its original position. The concealed screw mounting contributes to a sleek and cohesive appearance.

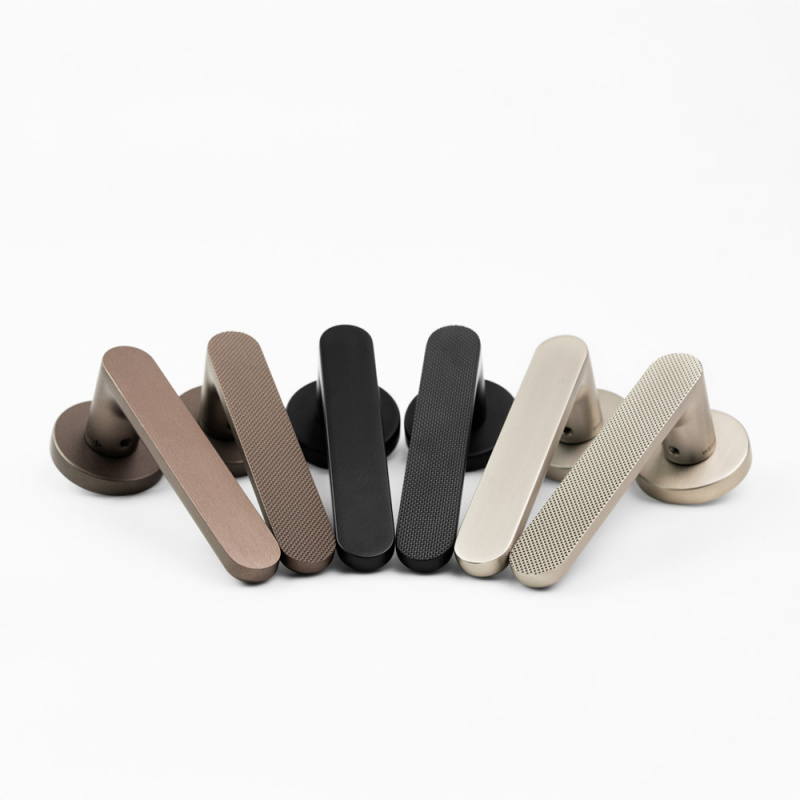

The Vibe Grip door handle is an excellent choice for all interior doors and can be easily paired with other door accessories and products in the Vibe Grip series for a harmonious and well-thought-out interior throughout the home. The handle is available in multiple finishes and, together with the key escutcheon, is designed for doors with a thickness of 35–48 mm.
- Specifications
-
Article depth: 54 mm Article length: 135 mm Article width: 24 mm - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
