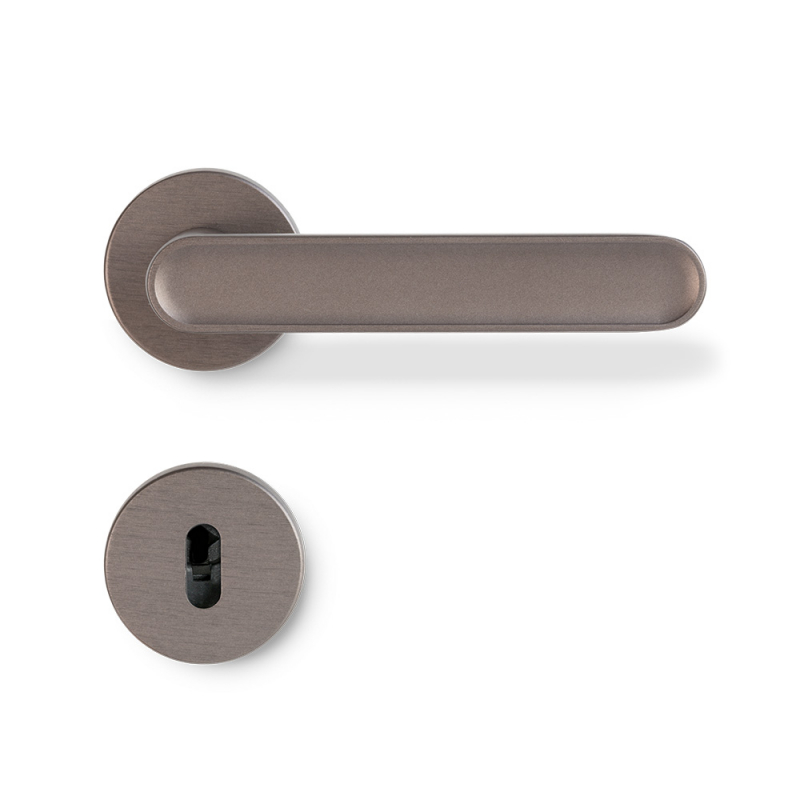

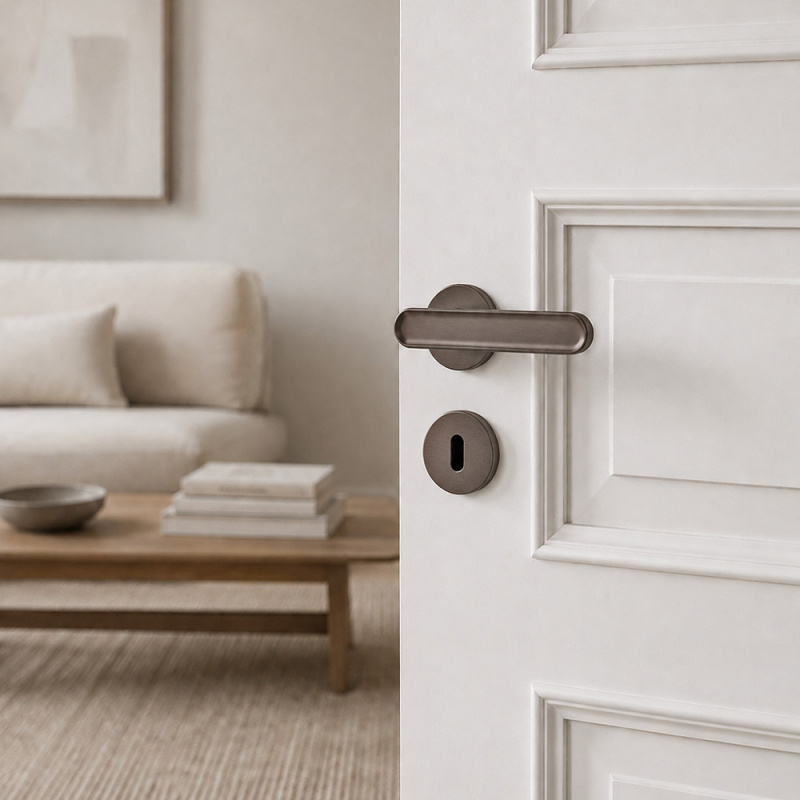

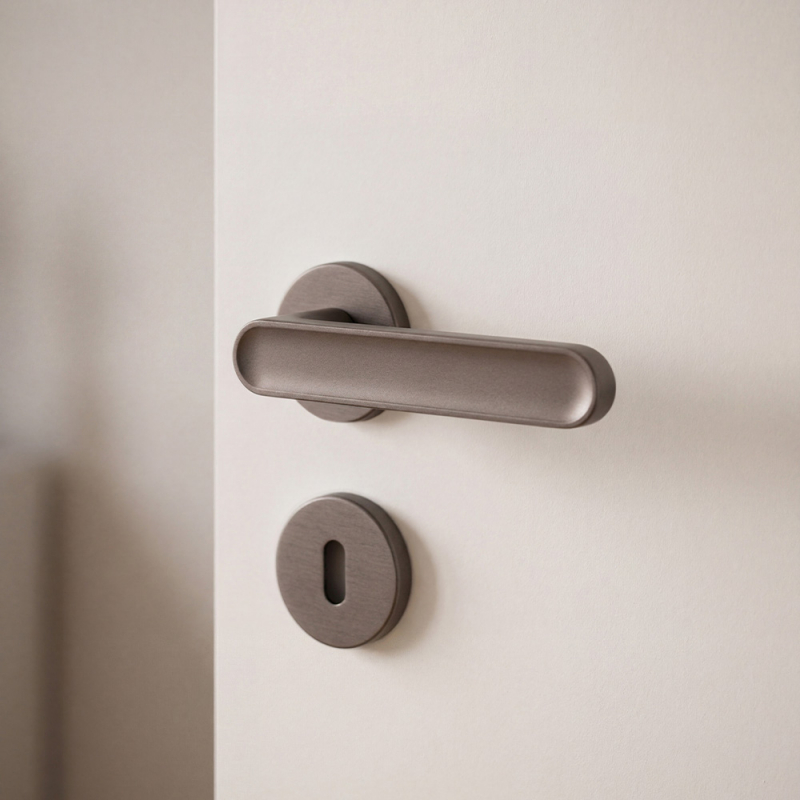

Door handle Vibe Soft - Dark bronze
vibe-soft-mork-bronsThe door handle features a spring return mechanism that ensures it always returns to its original position after use. Concealed screw fixings create a clean and seamless appearance.

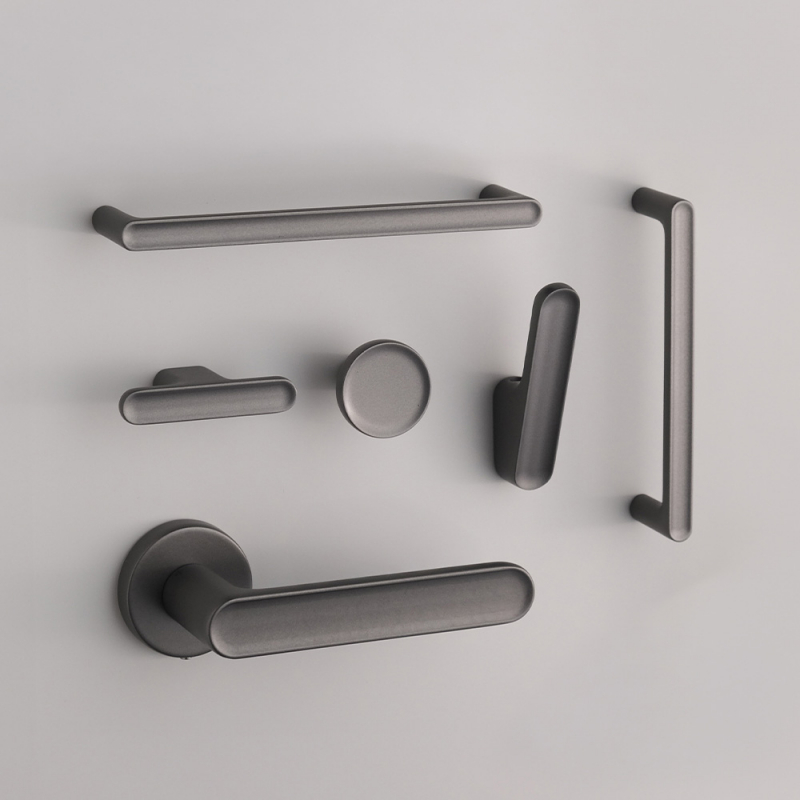

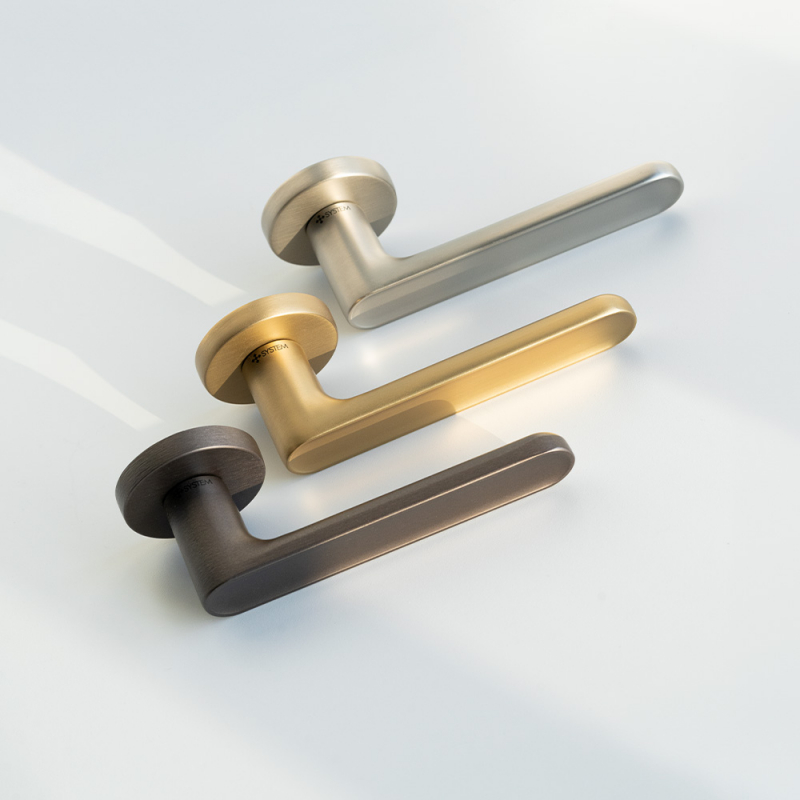

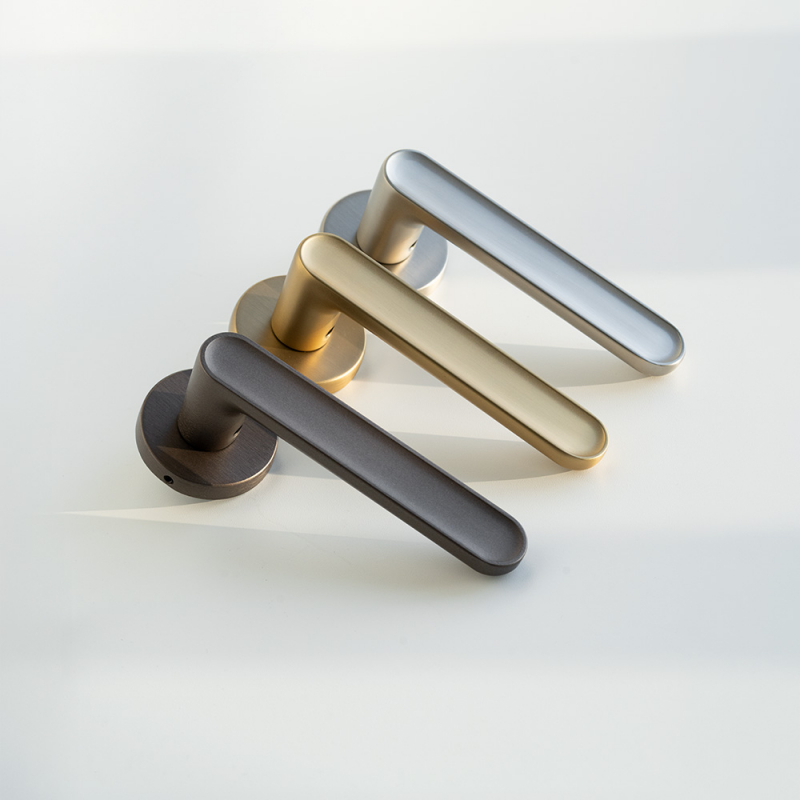

Vibe Soft is an excellent choice for all interior doors and can be combined with other door accessories and products in the Vibe Soft series. Together, they create a cohesive and refined look throughout the home or project. The handle is available in several finishes and, together with the key escutcheon, is suitable for doors with a thickness of 35–48 mm.
- Specifications
-
Article depth: 53,50 mm Article length: 135,00 mm Article width: 24,00 mm - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
