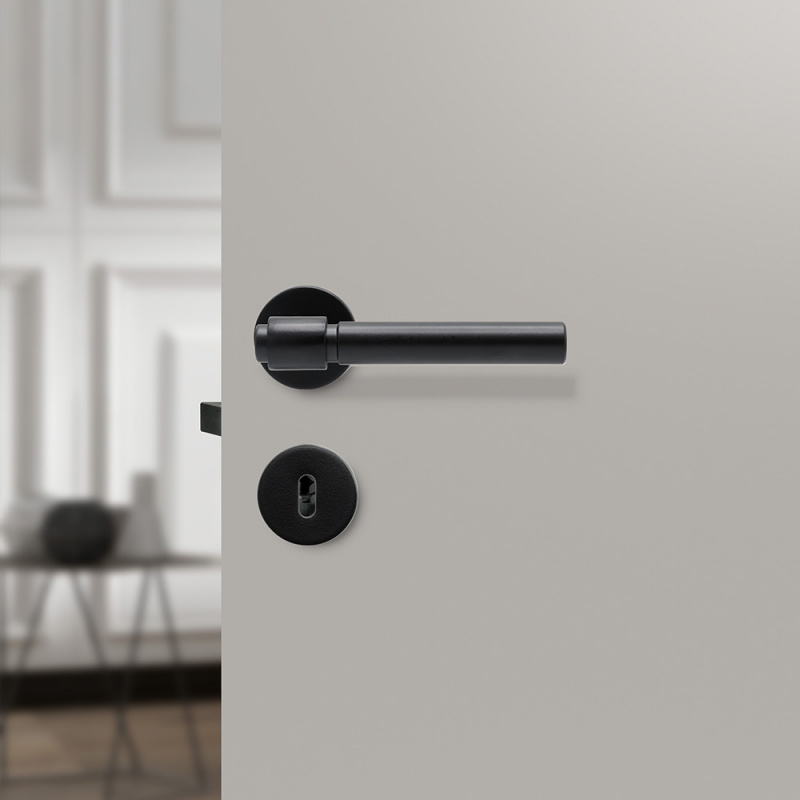

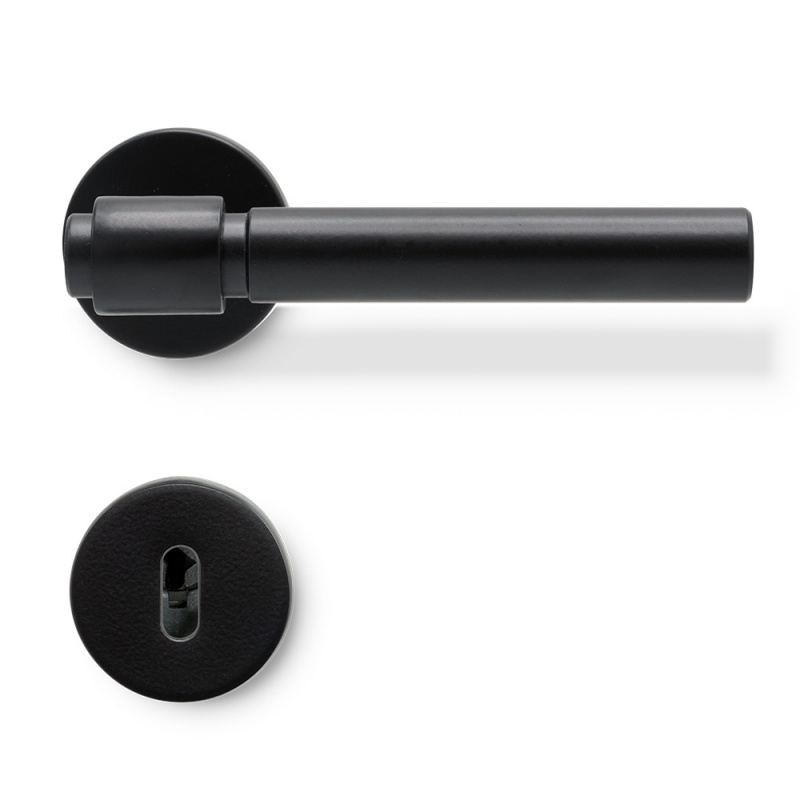

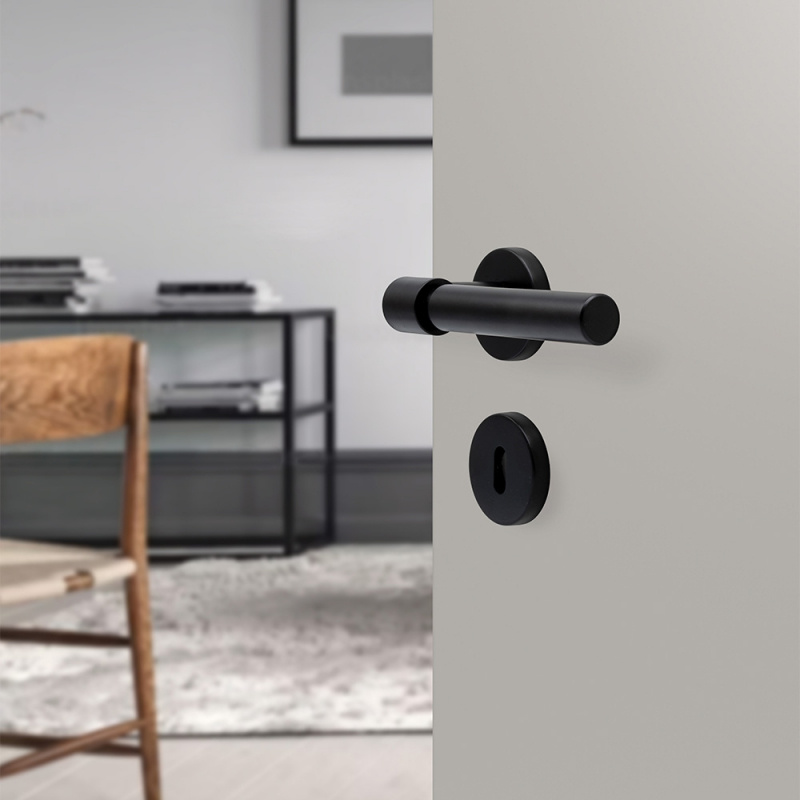

Door handle Helix 200 Plain - Matt black
helix-plain-svartThe elegant Door Handle Helix 200 Plain in black combines a modern design with timeless elegance. With its distinct smooth surface and harmoniously rounded shapes, this door handle fits perfectly on both light and dark interior doors.
Helix 200 Plain has a resilient spring, which means that it always returns to its basic position. The door handle and key plate are suitable for doors that are 35-48mm deep. Choose between a lock box in Scandinavian standard (lock box 2014) or one in European standard (cc38mm).

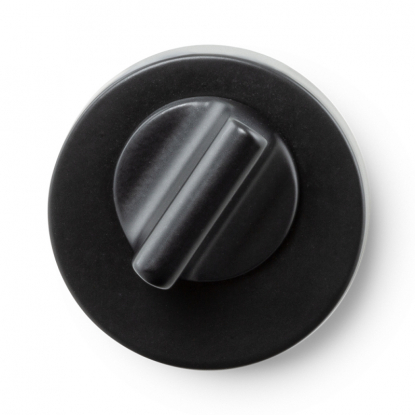

Pair the door handle with the toilet thumb turn R for a cohesive look. The Helix 200 Plain door handle also matches many other Beslag Design products, such as handles and knobs, making it easy to create a consistent theme in your interior.
A standard key plate and a complete mounting kit are included for easy installation.
Helix 200 Plain has a resilient spring, which means that it always returns to its basic position. The door handle and key plate are suitable for doors that are 35-48mm deep. Choose between a lock box in Scandinavian standard (lock box 2014) or one in European standard (cc38mm).
Pair the door handle with the toilet thumb turn R for a cohesive look. The Helix 200 Plain door handle also matches many other Beslag Design products, such as handles and knobs, making it easy to create a consistent theme in your interior.
A standard key plate and a complete mounting kit are included for easy installation.
- Specifications
-
Article diameter: 52 mm Article length: 150 mm Article width: 52 mm - Care instructions
- Assembly and Installation
Installation of door handle
1. Center square spindle in the lock.
2. Fasten the mounting plates with the included screws and caps.
3. Remove the square spindle and use it to the guiding plates located in the center of the mounting brackets.
4. Recenter the square spindle. Ensure that the spindle is placed so that the jagged surface is facing the socket set screw in the handles. Press the handles firmly until they click into place on the top of the mounting plates.
5. Tighten all four socket set screws using the included hex keys. The smaller socket set screws should be installed in the rosettes, while the larges ones should be mounted in the handles themselves.
Installation of key escutcheon
1. Fasten the mounting plates with the included screws and caps.
2. Press the outer parts until they click into place on the top of the mounting plates.
3. Tighten the socket set screws using the included hex keys.
See the full installation instructions here.-
-
-
-
-
- Material and Finish
- Documentation
- Installation manual
- Product sheet
-
Product sheet »
